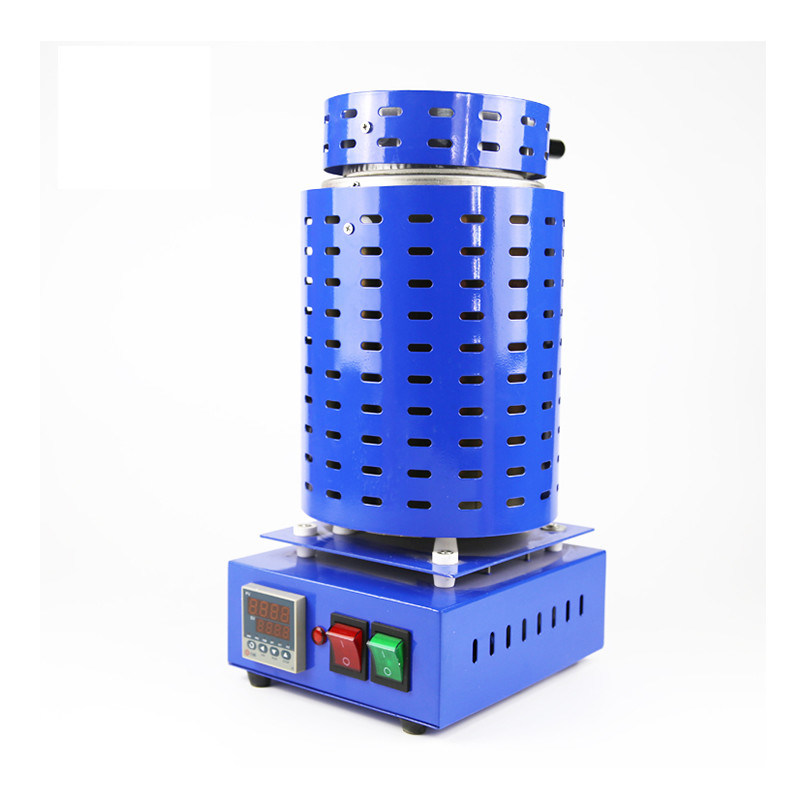

1.5kw Gold Melting Machine 1kg

1.5kw Gold Melting Machine 1kg
1.5kw Gold Melting Machine 1kg 1.5kw Gold Melting Machine 1kg 1.5kw Gold Melting Machine 1kg 1.5kw Gold Melting Machine 1kg

Large Image :  1.5kw Gold Melting Machine 1kg

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IRIS-01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD375/Set
Packaging Details: Paper Carton
Delivery Time: Within 5days
Payment Terms: T/T
Supply Ability: 100 Set/Week
Detailed Product Description
Product Name: Graphite Crucible Gold Melting Furnace Capacity: 1kg Gold
Color: Blue Power: 1.5kw
Temperature: 1200℃ Melting Time: 30 Minutes
Condition: 100% New Warranty: 1 Year
Package Size: 30*35*50cm Package Weight: 12kg
High Light:

1.5kw Gold Melting Machine 1kg

,

1200C Gold Melting Machine 1kg

,

CE Resistance Melting Gold Furnace

1kg Graphite Crucible Resistance Melting Gold Furnace

1kg Graphite Crucible Resistance Melting Gold Furnace is the best choice for melting gold, copper, silver and other noble metals, metallurgy, petroleum , chemical, Laboratory, heat-treatment. It'll up to 1200 ℃ with 30 mins. The advantages of this furnace is Small size, light weight, easy operation and accurate temperature control. Our product has got Quality System Certificate, CE Certificate, utility model and design patent.

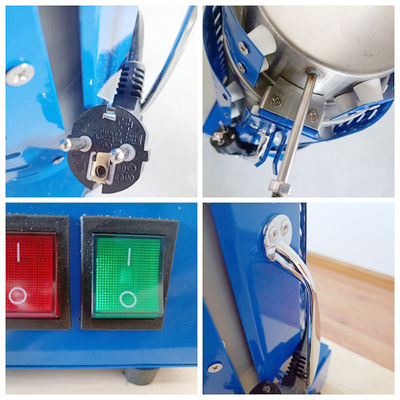

1.5kw Gold Melting Machine 1kg 0

Feature:



  • Digital pressure–sensitive touchpad and LED display.
  • CE/UL and CUL–certified with insulated lid.
  • Built–in pyrometer and extended–life heating element.
  • Graphite crucible
  • Automatic shut off/on.

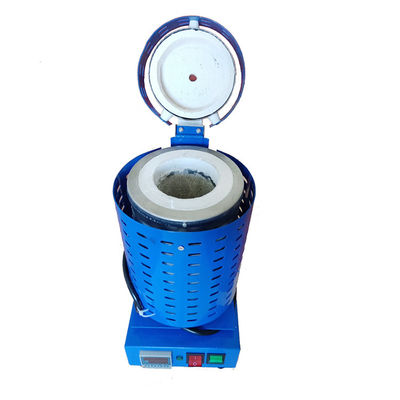

1.5kw Gold Melting Machine 1kg 1

Technical Parameters:



Model IRIS-01-1 IRIS-01-2
Voltage 110V 220V
Power 1KW 1.5KW
Adjustable temperature 0-1200℃ 0-1200℃
Melting time  30 mins 30 mins
Accuracy ±1°C ±1°C
Material of the furnace liner Silicon carbide materials
Material of the furnace cover Stainless steel
Note hermocouple input, relay output



Furnace Instruction:



1. Put the molten gold into the crucible,then put the crucible into the furnace.

2.open green switch power supply, then red switch.
3. temperature controller with the digital furnace is slowly rising.

4.When the temperature reached 1150 degrees,the red light indicator cut off.Then cut off red switch and green switch,take out the molten crucible from the furnace.

5. Please pay attention to safety and maintain mormal use of machine.

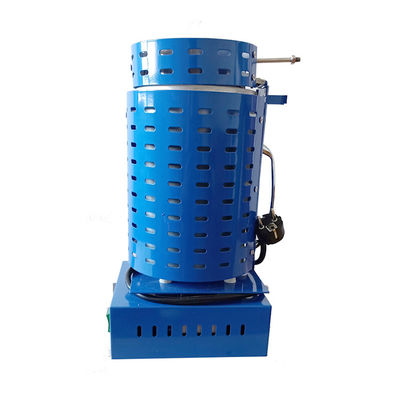

1.5kw Gold Melting Machine 1kg 2

We send you one pair of glasses , one pair glove , and one crucible tongs with the small

furnace for free.



1.5kw Gold Melting Machine 1kg 3

Packaging&Delivery



  • All the goods will be test and packed well before shipping to avoid damage during delivery.
  • Plastic inside,Polyfoam filled,Carton Outside.
  • Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT(The delivery time is 7-15days). For a large quantity of goods, shipping by sea or by air.
