Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ceramic Crucible 8.5kw 220V 1kg 2kg 3kg Platinum Melting Furnace | Voltage: | 220V |
|---|---|---|---|
| Power: | 8.5 Kw | Applicable Metal: | Platinum, Palladium, Gold, K Gold, Silver, Copper |
| Melting Time: | 2 Minutes | Maximum Capacity: | 3 Kg |
| Size: | 520*400*330mm | Weight: | 20kg |
| High Light: | IRIS-W1 Platinum Melting Furnace,8.5kw Platinum Melting Furnace,220V Platinum Melting Furnace |
||

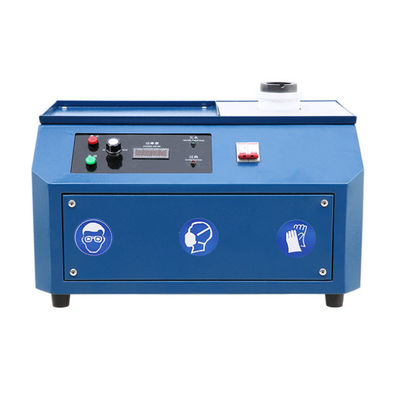

Ceramic Crucible 8.5kw 220V 1kg 2kg 3kg Platinum Melting Furnace
Ceramic Crucible 8.5kw 220V 1kg 2kg 3kg Platinum Melting Furnace Feature:
1. Platinum Melting Furnace ensures the homogeneity of the melted or liquefied metal. This is achievable through the incorporation of a strong electromagnetic stirring system. This eliminates the inconvenience of having uneven surfaces especially in alloys.
2. An omni-bearing security alert readily warns the operator(s) when the system is being run under potentially harmful conditions. Conditions such as overheating, short-circuit, unduly high current or low water levels can easily be detected
3. Platinum melting equipment also comes with an inherent water pump. This strikes the need for additional pumps. Thereby saving you more money
4. The operation process is intuitive. An average furnace operator should not have any difficulty whatever in understanding and getting used to the working of the furnace.
5. is economical both in weight and volume. This makes it very easy to haul.It will give more room for other equipment’s in your plant.
The parameter of the Ceramic Crucible 8.5kw 220V 1kg 2kg 3kg Platinum Melting Furnace
| Model | IRIS-w1 | IRIS-B1 |
| Power supply | 220V | 3 phase 380V ± 10%, 50 / 60HZ |
| Power | 8.6 kw( adjustable) | 15 kw( adjustable) |
| Applicable metal | Platinum, Palladium, Gold, K Gold, Silver, Copper | Platinum, Palladium, Gold, K Gold, Silver, Copper |
| Melting time | 3 minutes / furnace | 2 minutes / furnace |
| Maximum capacity | 300g (Platinum) | 2 kg (Platinum) |
| Temperature | 2600℃ | 2500℃ |
| Machine size | 520x400x330 mm | 1180 * 680x500 mm |
| Machine weight | 20 kg | 90 kg |
| Heating technology | IGBT induction heating | IGBT induction heating |
| Water pump | Built-in | Built-in |
| Cooling method | Water cooling | Water cooling |

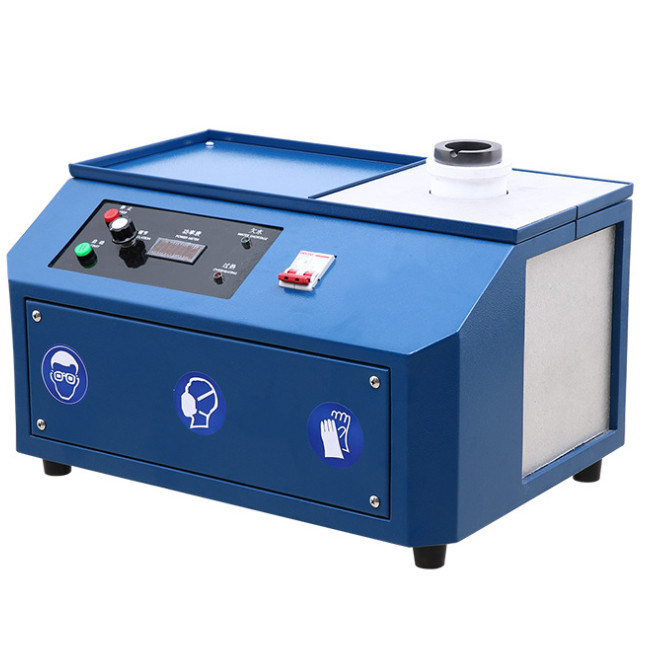

Ceramic Crucible 8.5kw 220V 1kg 2kg 3kg Platinum Melting Furnace Detail
Ceramic Crucible 8.5kw 220V 1kg 2kg 3kg Platinum Melting Furnace Application
FQA:
1.How long is the delivery time?
The products wil be sent within 7days after the full payment.
2.What is the warranty time?
One year.
3.What are the accessories for the machine?
We will send you two induction coils for free.
4.How to install your machine?
we have installation instruction papers and videos, we will teach till you can do it yourself.
5.I still have the question , and i don't understand ...?
Please send us the inquiry , 24 hours service for you.
Tips:
1.Details of prices,pls on-line or email consulation.
2.Picture for reference only,tiny chromatic,pls take material object as the standard.
3.Welcome to illustrate your workpiece parameters,we will try our best to specifically customized for you.
Thanks for your reading ! Welcome to contact us !
