Henan IRIS Electromechanical Equipment  Co., Ltd.
Home ProductsIndustrial Melting Furnace

Gold Platinum Palladium Industrial Melting Furnace 2600C IGBT Induction Heating Machine

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

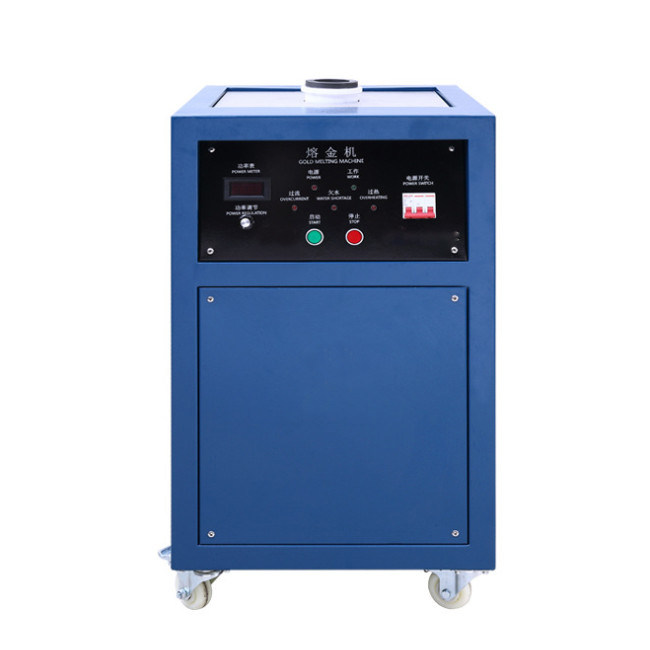

Gold Platinum Palladium Industrial Melting Furnace 2600C IGBT Induction Heating Machine

Gold Platinum Palladium Industrial Melting Furnace 2600C IGBT Induction Heating Machine
Gold Platinum Palladium Industrial Melting Furnace 2600C IGBT Induction Heating Machine

Large Image :  Gold Platinum Palladium Industrial Melting Furnace 2600C IGBT Induction Heating Machine

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IRIS-B1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1,669-USD2,669/set
Packaging Details: Standard export wooden box package
Delivery Time: 5-8 working days
Payment Terms: T/T、Credit card
Supply Ability: 10 Set/Week
Detailed Product Description
Product Name: 2600℃ Igbt Induction Heating Machine Melting Furnace For The Gold Platinum Palladium Voltage: 3 Phase 380V ± 10%, 50 / 60HZ
Power: 15 Kw Applicable Metal: Platinum, Palladium, Gold, K Gold, Silver, Copper
Melting Time: 2 Minutes Maximum Capacity: 2 Kg
Water Pump: Built-in Cooling Method: Water Cooling
High Light:

Palladium Industrial Melting Furnace

,

Gold Platinum Industrial Melting Furnace

,

IGBT Induction Heating Machine

2600℃ Igbt Induction Heating Machine Melting Furnace For The Gold Platinum Palladium



Feature:

The use of advanced IGBT frequency conversion and power adjustment technology, specific rated power, will help reduce power costs, meet continuous 24 hours of full load work, greatly improve production efficiency, very energy-saving and cost-effective melting equipment. This equipment can be used to melt a variety of metals quickly, with a temperature of up to 2600 degrees, and a furnace can be melted in the fastest 2 minutes to avoid metal contamination. It can be achieved by switching the crucible, so there is no need to use separate melting furnaces for different metals.​

Gold Platinum Palladium Industrial Melting Furnace 2600C IGBT Induction Heating Machine 0



The parameter of the Fast Smelting Platinum Palladium Melting Furnace 1kg 2kg:



Model IRIS-B1 IRIS-B2
Power supply 3 phase 380V ± 10%, 50 / 60HZ 3 phase 380V ± 10%, 50 / 60HZ
Power 15 kw( adjustable) 15 kw( adjustable)
Applicable metal Platinum, Palladium, Gold, K Gold, Silver, Copper Platinum, Palladium, Gold, K Gold, Silver, Copper
Melting time 2 minutes / furnace 2 minutes / furnace
Maximum capacity 1 kg (Platinum) 2 kg (Platinum)
Temperature 2800℃ 2800℃
Machine size 1180x690x500 mm 1180 * 680x500 mm
Machine weight 88 kg 90 kg
Heating technology IGBT induction heating IGBT induction heating
Water pump Built-in Built-in
Cooling method Water cooling Water cooling



Gold Platinum Palladium Industrial Melting Furnace 2600C IGBT Induction Heating Machine 1

Gold Platinum Palladium Industrial Melting Furnace 2600C IGBT Induction Heating Machine 2

FQA:



1.How long is the delivery time?
The products wil be sent within 7days after the full payment.



2.What is the warranty time?
One year.



3.What are the accessories for the machine?
We will send you two induction coils for free.



4.How to install your machine?
we have installation instruction papers and videos, we will teach till you can do it yourself.



5.I still have the question , and i don't understand ...?
Please send us the inquiry , 24 hours service for you.



Tips:

1.Details of prices,pls on-line or email consulation.

2.Picture for reference only,tiny chromatic,pls take material object as the standard.

3.Welcome to illustrate your workpiece parameters,we will try our best to specifically customized for you.

Thanks for your reading ! Welcome to contact us !
