| Voltage: | 220/380V | Power: | 15kw |
|---|---|---|---|
| Capacity: | 1-4kg | Melting Metal: | Platinum |
| Fuel: | Electric | Max Temperature: | 2600 Degree |
| Machine Size: | 1180x690x500 Mm | Temperature: | 2800 |
| High Light: | 2600 Degree Platinum Melting Furnace,Dual use Platinum Melting Furnace,0.6KG Platinum Melting Furnace |
||

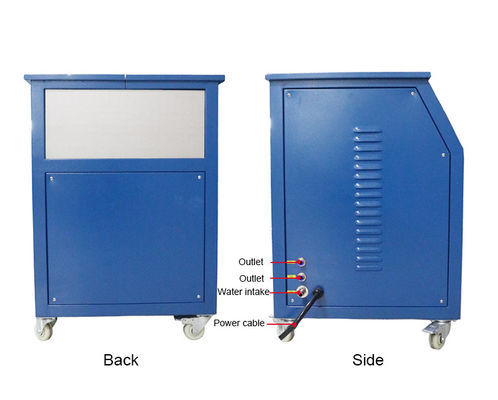

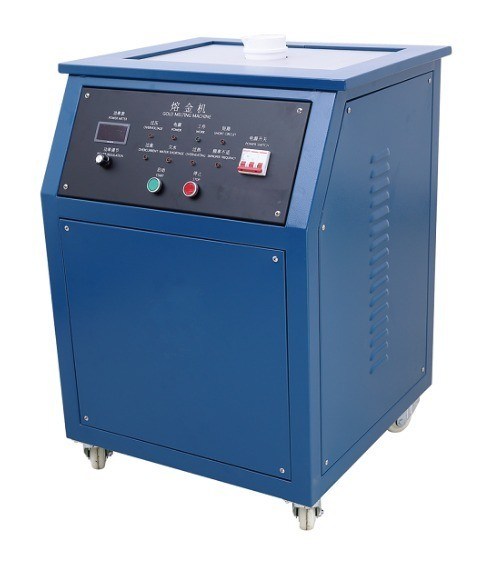

Jewelry 2KG Gold or 0.6KG Platinum Dual-use Melting Furnace
Selling point of Jewelry 2KG Gold or 0.6KG Platinum Dual-use Melting Furnace
1. Use the IGBT module and Inverting technologies of third generation, at least 20% energy comparing with KGPS thyristor type induction system,and more reliability, lower maintenance cost.
2. 100% Duty cycle, continuous working is allowed at maximum power output.
3. Display of heating power and heating current and oscillating frequency.
4. Convenient to change furnace crucible for different material melting.
5. Small size, light weight, and convenient to move.And install easily
Technical Parameters of Jewelry 2KG Gold or 0.6KG Platinum Dual-use Melting Furnace
| Model | IRIS-B1 | IRIS-B2 |
| Power supply | 3 phase 380V ± 10%, 50 / 60HZ | 3 phase 380V ± 10%, 50 / 60HZ |
| Power | 15 kw( adjustable) | 15 kw( adjustable) |
| Applicable metal | Platinum, Palladium, Gold, K Gold, Silver, Copper | Platinum, Palladium, Gold, K Gold, Silver, Copper |
| Melting time | 2 minutes / furnace | 2 minutes / furnace |
| Maximum capacity | 1 kg (Platinum) | 2 kg (Platinum) |
| Temperature | 2800℃ | 2800℃ |
| Machine size | 1180x690x500 mm | 1180 * 680x500 mm |
| Machine weight | 88 kg | 90 kg |
| Heating technology | IGBT induction heating | IGBT induction heating |
| Water pump | Built-in | Built-in |
| Cooling method | Water cooling | Water cooling |
We Guarantee:
(1) We will strictly manufacture the machine according to relevant technical standards.
(2) We will take run test according to relevant equipment test run regulations.
(3) We will strictly check up the machine,before delivery, only good machine will be sent to customers.
(4) We will delivery on time.
