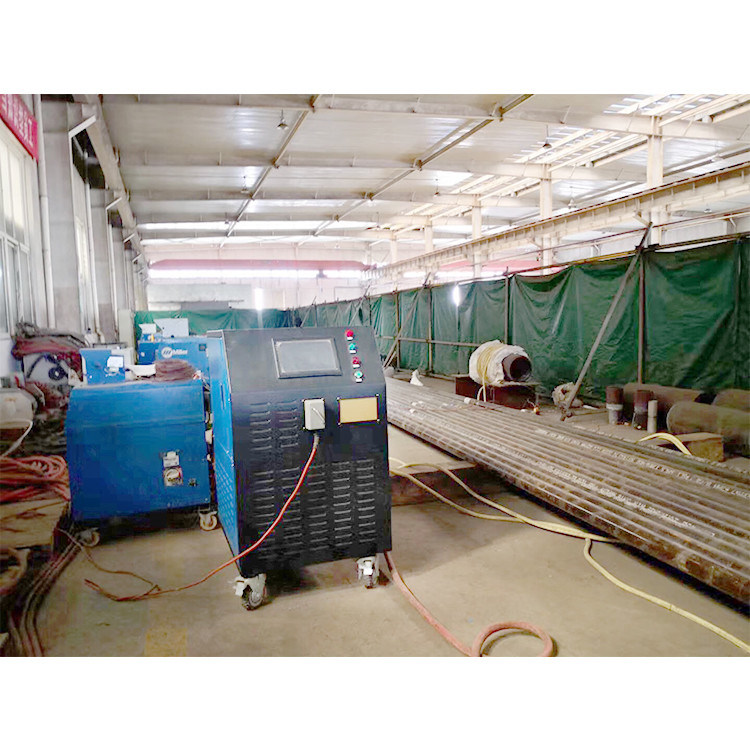

IGBT Post Weld Heat Treatment Equipment

IGBT Post Weld Heat Treatment Equipment
IGBT Post Weld Heat Treatment Equipment

Large Image :  IGBT Post Weld Heat Treatment Equipment

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-MYDS-40KW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3299-USD6699/set
Packaging Details: Standard export wooden box
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10 Sets/week
Detailed Product Description
Product Name: IGBT Post Weld Heat Treatment Equipment 40kw Input Voltage: 3*380v
Input Current: 60A 0utput Power: 40KW
Output Frequency: 2KHZ ~ 30KHZ Max Temperature: Max 900℃
Temperature Control: 6 Channel Recorder Accessories:: Coil, Insulation Blanket, Thermocouple, Extension Cord, Temperature Recorder
High Light:

IGBT Post Weld Heat Treatment Equipment

,

40kw Post Weld Heat Treatment Equipment

,

PWHT Post Weld Heat Treatment

IGBT Post Weld Heat Treatment Equipment 40kw



Induction post weld heat treatment machine is designed for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair.
For PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm, heating temperature will reach 788℃ at most.Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.



IGBT Post Weld Heat Treatment Equipment 0



Technical parameter of the Pipeline Post Weld Heat Treatment Machine



Model MYD-10KW MYD-20KW MYD-30KW
input voltage 3*380v
Input Current 1-15A 1-30A 1-40A
Output Current 1-150A 1-200A 1-250A
Output Power 1-10KW 1-20KW 1-30KW
Output Frequency 5-30KHZ
Thermocouple K type
Max Temperature Max 900℃
Heating Pipeline Size Dia:50-400mm Dia:50-600mm Dia:50-750mm
Heater Size 500*350*400mm 550*400*450mm 750*450*700mm
Weight 26kg 30kg 45kg
Induction Heating coil
Length 15-30M
Diameter 10 mm 13 mm 15 mm
  Working Temperature: 0-350℃



Model MYDS-40KW MYDS-60KW MYDS-80KW
Input power 3 * 380VAC (Default) 3 * 220VAC /3 * 440VAC (Optional)
Output frequency 2KHZ ~ 30KHZ
Output power 40KW 60KW 80KW
Input current 60A 90A 120A
Cooling type Water cooling induction coil
Heat temperature Max:900℃ Heating Speed:5-400℃/min
Temperature control 6 channel recorder
Accessories: coil, insulation blanket, thermocouple, extension cord, temperature recorder



Features of Pipeline Post Weld Heat Treatment Machine:



Friendly Interface and Accurate Control
The control board offers various parameters for setting so the heating process can be controlled precisely by giving value to temperature, time, heating rate, cooling rate, etc.



Various Control Mode
The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.



Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.



Easy Maintenenace
Due to modular design, the maintance will be easy and low-cost.



Self Diagnosis
Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.



High Efficiency
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.



Uniform Heating
The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.



Replaceable Heating Inductor

Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are easily dismountable and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.

IGBT Post Weld Heat Treatment Equipment 1

IGBT Post Weld Heat Treatment Equipment 2
