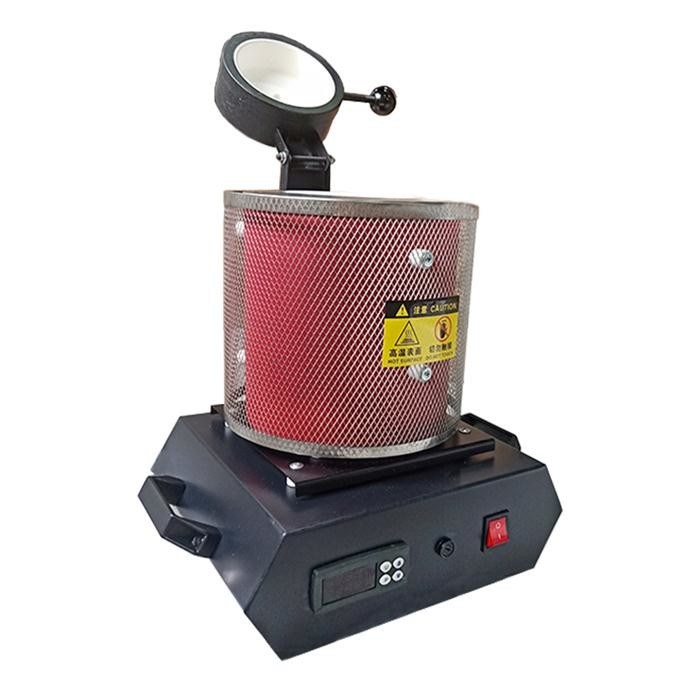

Compact 3KG 220V Mini Gold Melting Machine Light Weight

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

Compact 3KG 220V Mini Gold Melting Machine Light Weight

Compact 3KG 220V Mini Gold Melting Machine Light Weight
Compact 3KG 220V Mini Gold Melting Machine Light Weight

Large Image :  Compact 3KG 220V Mini Gold Melting Machine Light Weight

Product Details:
Place of Origin: Henan ,China
Brand Name: IRIS
Certification: CE
Model Number: IS-01
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD240/SET
Packaging Details: Carton Case
Delivery Time: 5days
Payment Terms: T/T
Supply Ability: 500SET/Month
Detailed Product Description
Voltage: 220/380v Dimension: 250*240*340mm
Power: 1500W Weight: 12kg
Color: Red/black Melting Time: 20-30minutes
Melting Material: Gold,silver Application: Jewelry Shop Use
Capacity: 1-3kg
High Light:

220V Mini Gold Melting Machine


3KG Mini Gold Melting Machine


Compact 3KG Melting Machine

3KG 220V Mini Gold Melting Electrical Furnace for France ,German and South Africa customers


1. Introduction


1 With compact design is ideal for professional use. By using high-quality materials, the smelting furnace can meet the requirements of the industry and the workshop, are suitable for the processing of precious metals such as gold, silver and copper.


2 The maximum adjustable temperature of our product is 1150 degrees celsius. Thus, the melting furnace is perfectly designed for the melting of precious metals. The melting point of silver is 962 degrees celsius, gold is 1064 degrees celsius and copper is 1084 degrees celsius.


3 The regulation of the melting temperature is very user-friendly via a highly modern PID module. This module allows the digital adjustment of the setpoint temperature to the degree accurately.


4 Thanks to the use of a heat-resistant and efficient insulation, the radially arranged heating element can give full effect and a homogeneous temperature distribution results in the melting crucible. The high performance and the good insulation ensure a rapid reaching of the desired melting temperature.


5 In addition to housing insulation, a thermally insulated grid protects against accidental contact with the heating chamber. This is an important safety feature when dealing with the melting furnaces. To match the melting crucible, we supply a melting tongs that fit into the groove around the crucible head. This allows you to work safely with the hot melt crucible.

2. Features

1. Light weight and small volume
2. High efficiency of refining
3. Easy installation and operation
4. Fast speed of raising temperature, the temperature is constant
5. Safe and environment-friendly operation


3Technical Parameters


Item Decsription
Furnace Voltage 110V/220V Single phase
Furnace Power 1500W
Chamber Size Dia63*170mm
Working Temperatrue 1150 Degrees C(2102F)
Max Temperature 1200 Degrees C(2192F)
Furnace Size 170*220*370mm
Melting Capacity 1-3kg for gold melting
Melting Material Gold copper silver aluminum lead zinc etc
Heating Rate About 20-25 minutes
Furnace Package Carton box package(10kgs,43*30*30cm)
Delivery Time Within 7days after getting payment
Payment Method T/T,PayPal,Western Union and Alibaba TradeAssurance Order
Shipment Fast express transport,such as FedEx,UPS,DHL,TNT,EMS etc
Export Experience 9 years
Others Can be custom


This gold melting furnace includes one graphite crucible,one crucible tong and one manual instruction.

Compact 3KG 220V Mini Gold Melting Machine Light Weight 0

Notes:As graphite crucibles are easily-consumed products,so sugeest buy some extra ones for spare use.These are common crucibles and moulds.Others can be customized.

Packing and Delivery:

* Normal Package:Carton Box Package for each set furnace;
* If over 10 sets,it will be packaged with the pallet;this way can save a lot of your purchasing cost.

We have professional packaging and shipping insurance so your purchase will arrive safely.
* Delivered by express,such as UPS,FedEx,DHL,TNT and so on;3-7 working days to the destination generally;
* Payment Terms:T/T,Western Uinon,PayPal and Alibaba Trade Assurance Order are all OK for us.

* Delivery time:Within 7 days after getting the payment;
