Henan IRIS Electromechanical Equipment  Co., Ltd.
Home ProductsInduction Melting Furnace

50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

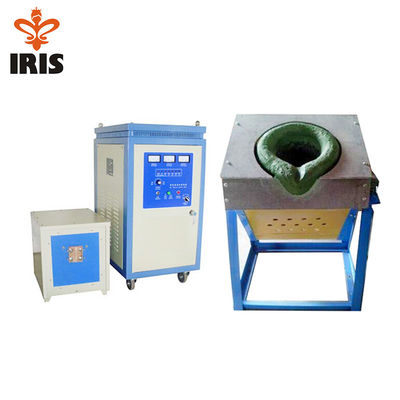

50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine

50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine
50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine 50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine 50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine

Large Image :  50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-HF
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2200-USD2500/Set
Packaging Details: Wooden box
Delivery Time: Within 7 days
Payment Terms: T/T,Credit card
Supply Ability: 30 sets/week
Detailed Product Description
Product Name: 50kg Induction Melting Furnace Melting Material: Iron
Capacity: Iron 10kg Condition: New
Maximum Input Power: 35KW Output Voltage:: 70-520V
Input Current:: 5-70A Input Voltage:: 3-phase 380V, 50/60HZ
High Light:

50kg Medium Frequency Induction Furnace

,

35kw Medium Frequency Induction Furnace

,

Scrap Iron Brass Melting machine

50kg Induction Melting Furnace Scrap Iron Brass Melting



50kg Induction Melting Furnace Scrap Iron Brass Melting are mainly used for the melting of steel, stainless steel, copper, brass, silver, gold, aluminium materials, etc. Melting capacity can be from 3KG to 200KG.

Typical applications: The basic composition of medium frequency smelting furnace includes medium frequency power supply, compensation capacitor box and smelting furnace. According to different application requirements, it may also include infrared thermometer, temperature controller and other devices. There are three kinds of smelting furnaces: overturned smelting furnace, ejection smelting furnace and fixed smelting furnace. The overturning furnace can be divided into mechanical overturning furnace, electric overturning furnace and hydraulic overturning furnace according to the overturning mode.



Main models melting abilities:



Model Aluminum Copper Stainless
MF-15KW 3kg 10kg 3kg
MF-25KW 5kg 20kg 5kg
MF-35KW 10kg 30kg 10kg
MF-45KW 18kg 50kg 18kg
MF-70KW 25kg 100kg 25kg
MF-90KW 40kg 120kg 40kg
MF-110KW 50kg 150kg 50kg
MF-160KW 100kg 250kg 100kg

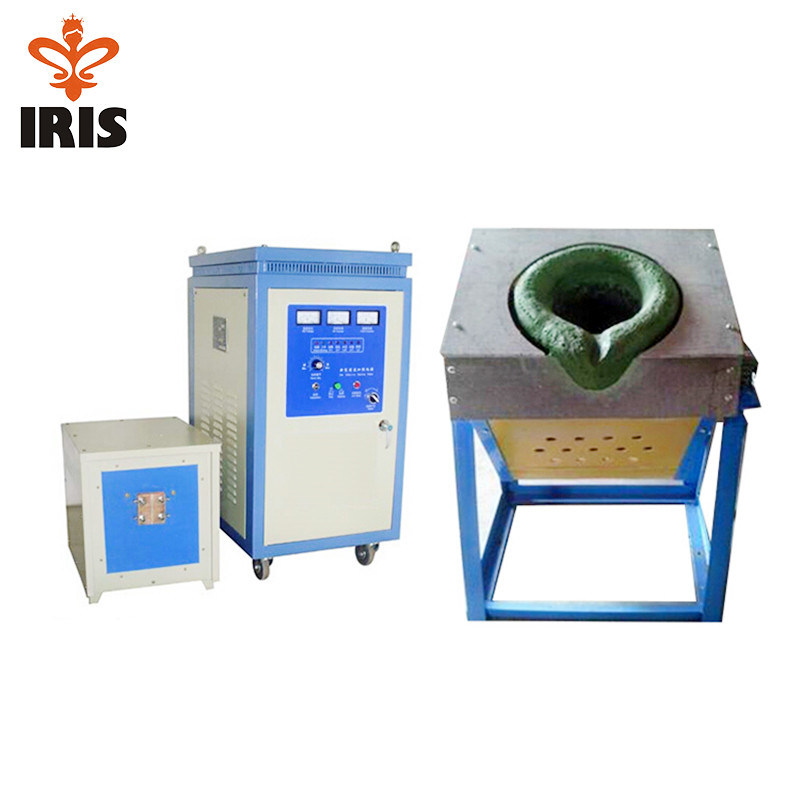

50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine 0



Main features of 50kg Induction Melting Furnace Scrap Iron Brass Melting​​:


1. M.F. melting machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux oxides to produce high quality casting parts.
3. Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency other factors.
4. Power efficiency is 20% higher than the SCR medium frequency machines;
5. Small light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college researching companies to use.

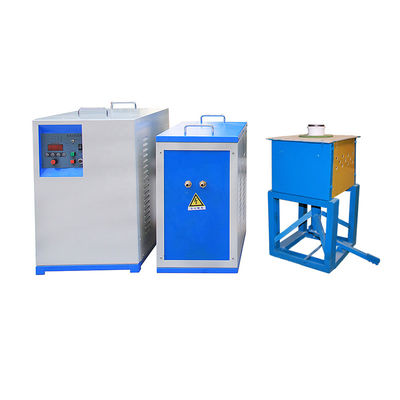

50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine 1



Packaging&Delivery



  • All the goods will be test and packed well before shipping to avoid damage during delivery.
  • Plastic inside,Polyfoam filled,Carton Outside.
  • Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.

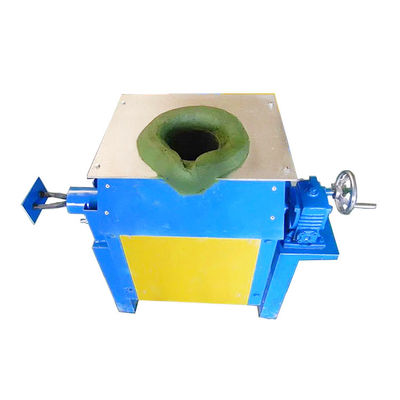

50kg Medium Frequency Induction Furnace Scrap Iron Brass Melting Machine 2
