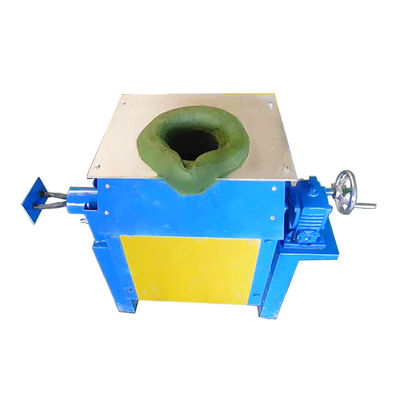

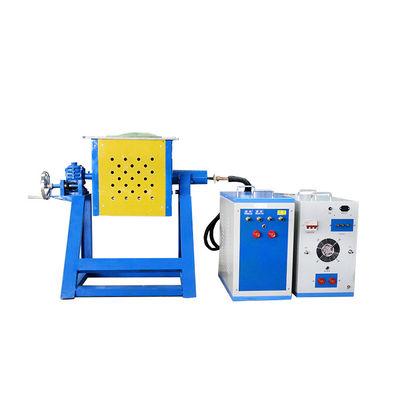

Small Electric Medium Frequency Induction Melting Furnace

Small Electric Medium Frequency Induction Melting Furnace
Small Electric Medium Frequency Induction Melting Furnace Small Electric Medium Frequency Induction Melting Furnace Small Electric Medium Frequency Induction Melting Furnace Small Electric Medium Frequency Induction Melting Furnace

Large Image :  Small Electric Medium Frequency Induction Melting Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-MF90
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3599-USD5599/Set
Packaging Details: Wooden box
Delivery Time: Within 7 days
Payment Terms: T/T,Credit card
Supply Ability: 30 sets/week
Detailed Product Description
Product Name: Small Electric Induction Furnace Melting Material: Aluminum
Capacity: 40kg Condition: New
Maximum Input Power: 110KW Output Voltage:: 70-520V
Input Current:: 30-200A Input Voltage:: 3-phase 380V, 50/60HZ
High Light:

Steel Medium Frequency Induction Melting Furnace

,

Copper Medium Frequency Induction Melting Furnace

,

Brass Medium Frequency Induction Melting Furnace

Small Electric Induction Furnace Iron Copper Brass Melting Furnace



This machine is widely use in the foundry industry, with the IGBT/KGPS Technology, which can smelt scrap metal copper steel iron with capacity 10kg to 200KG per batch. and melting time for each pot is around 60 minutes. Our power supply adopt the most advanced IGBT technology from Germany which is the most energy saving and environmental method to melt the copper Scrap.



Small Electric Medium Frequency Induction Melting Furnace 0



Main models melting abilities:



Model Aluminum Copper Stainless
MF-15KW 3kg 10kg 3kg
MF-25KW 5kg 20kg 5kg
MF-35KW 10kg 30kg 10kg
MF-45KW 18kg 50kg 18kg
MF-70KW 25kg 100kg 25kg
MF-90KW 40kg 120kg 40kg
MF-110KW 50kg 150kg 50kg
MF-160KW 100kg 250kg 100kg



Structure of the Small Electric Induction Furnace Iron Copper Brass Melting Furnace

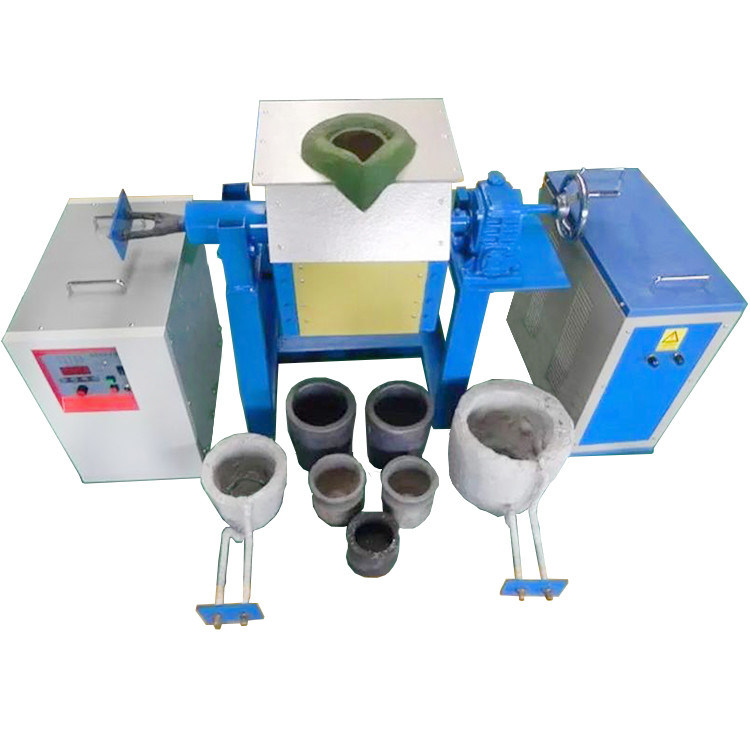

  • The melting furnace set includes medium frequency generator, compensating capacitor melting furnace, melting furnace body.

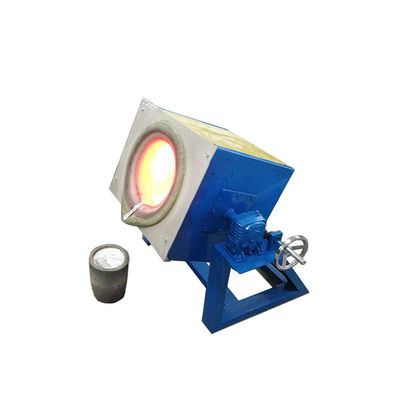

  • According to the method of tilting, tilting furnace is divided into three kinds: manual tilting furnace, electrical tilting furnace hydraulic tilting furnace.

Small Electric Medium Frequency Induction Melting Furnace 1



Main features of Small Electric Induction Furnace Iron Copper Brass Melting Furnace


1. M.F. melting machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux oxides to produce high quality casting parts.
3. Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency other factors.
4. Power efficiency is 20% higher than the SCR medium frequency machines;
5. Small light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college researching companies to use.



Packaging&Delivery



  • All the goods will be test and packed well before shipping to avoid damage during delivery.
  • Plastic inside,Polyfoam filled,Carton Outside.
  • Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.

Small Electric Medium Frequency Induction Melting Furnace 2
