Product Details:
Payment & Shipping Terms:
|
| Product Name: | Good Thermal Conductivity Metal Casting Crucible | Material:: | High Pure Graphite Materials |
|---|---|---|---|
| Size:: | Difference Size Avaliable | Compress Strength:: | 65-135MPa |
| Density: | 1.75-1.85 G/cm3 | Sample: | Support |
| Outside Diameter: | 84mm | Height: | 136.5mm |
| Highlight: | Aluminum Metal Casting Crucible,Dia 84mm Metal Casting Crucible,136.5mm Aluminum Casting Crucible |
||

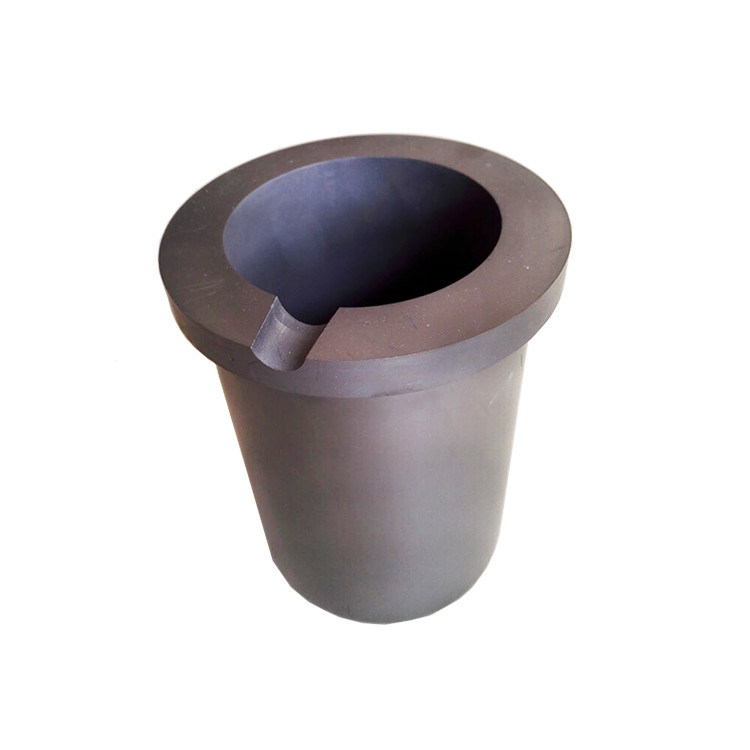

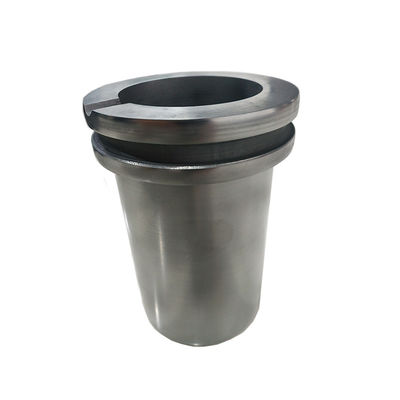

Good Thermal Conductivity Metal Casting Crucible For High Temperature Resistance
Crucible is an important part of chemical apparatus, which is melting and refining of metal liquid and solid-liquid heating, the reaction vessel is to ensure the smooth conduct of basic chemical reactions.Graphite crucibles are widely used to melt gold, silver, copper and other metals.
![]()
Technical Parameter of the Graphite Crucible With Ceramic Sleeve /Quartz Crucibles
| Name | Model | Outside diameter | Outer diameter | Inter diameter | Step height | Height |
| Graphite crucible | 1kg | 58mm | 46mm | 34mm | 10mm | 88mm |
| Graphite crucible | 2kg | 73mm | 61mm | 48mm | 88mm | 78mm |
| Graphite crucible | 3kg | 85mm | 76mm | 62mm | 10mm | 103mm |
| Graphite crucible | 4kg | 84mm | 74.5mm | 56mm | 11.5mm | 136.5mm |
| Graphite crucible | 5kg | 100mm | 87mm | 67mm | 12mm | 135mm |
| Graphite crucible | 5.5kg | 105mm | 90mm | 74mm | 13mm | 155mm |
| Graphite crucible | 6kg | 115mm | 102mm | 80mm | 12mm | 180mm |
| Graphite crucible | 8kg | 124mm | 108mm | 90mm | 15mm | 183mm |
| Quartz crucible | 1kg | 69mm | 55mm | 50mm | 5mm | 86mm |
| Quartz crucible | 2kg | 85mm | 70mm | 63mm | 7.5mm | 86mm |
| Quartz crucible | 3kg | 95mm | 87mm | 78mm | 10mm | 102mm |
| Quartz crucible | 4kg | 99mm | 87mm | 80mm | 8.5mm | 133mm |
| Quartz crucible | 5kg | 118mm | 100mm | 91mm | 10.5mm | 135mm |
| Quartz crucible | 5.5kg | 119mm | 106mm | 93mm | 8mm | 154mm |
| Quartz crucible | 6kg | 131mm | 118mm | 106mm | 10mm | 179mm |
| Quartz crucible | 8kg | 144mm | 132mm | 113mm | 9mm | 184mm |
![]()
![]()
Crucibles we manufacture and supply:
![]()
