Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

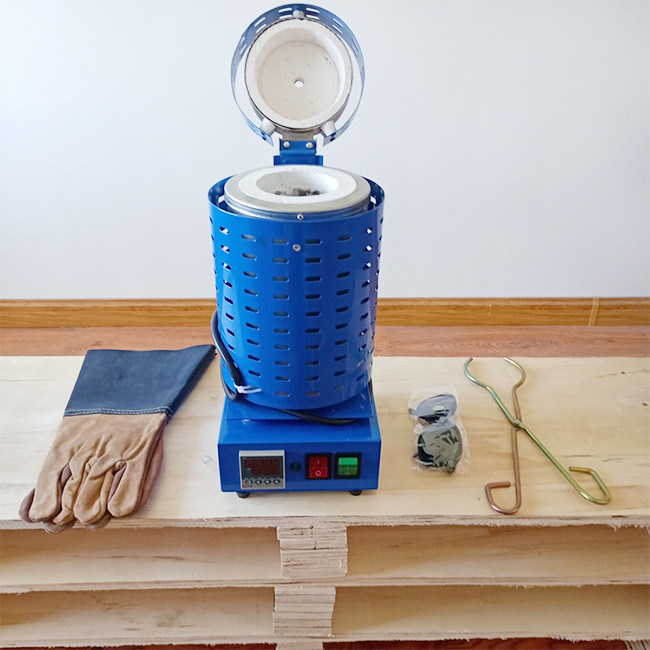

Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace

Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace
Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace

Large Image :  Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IRIS-L1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD369/Set
Packaging Details: Paper Carton
Delivery Time: Within 5days
Payment Terms: T/T,Credit card
Supply Ability: 100 Set/Week
Detailed Product Description
Product Name: Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace Capacity: 2kg Gold
Color: Blue Power: 1.5kw
Max Temperature: 1200℃ Work Temperature: 1150 ℃
Melting Time: 30 Minutes Condition: 100% New
Warranty: 1 Year Consumable Accessorie: Resistance Wire
High Light:

IRIS-01-1 Gold Melting Furnace

,

IRIS-L1 Gold Melting Furnace

,

IRIS-01-2 Sliver Melting Furnace



Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace Descraption


【2KG Compacity】2kg CRUCIBLE capacity; Power input:1500(w); Power supply: 220V, 50Hz; Max temperature is 1200℃
【Work Efficiently】The furnace wire seal integrated machine can be heated and heated quickly.Inner temperature can Be 1100℃, because of which metals could be melted completely in 40-48 minutes.
【Advanced Digital Control】Highly advanced PID module and digital control system,providing you precise and convenient metal melting,avoiding any issue of overheat or cool down.
【Work Safety】The melting crucible comes with a melting tongs that fit into the groove around the crucible head, which allows you to work safely with the hot melt crucible.
【The Warranty Time】 12 Months.We offer you the Best & Professional service, if you have any questions, please contact us firstly, we will always help you. And If our products have any problem, we promise help you within 24hrs.



Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace 0

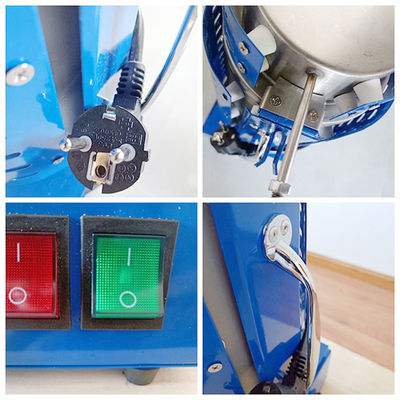

Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace Feature:


  • Digital pressure–sensitive touchpad and LED display.
  • CE/UL and CUL–certified with insulated lid.
  • Built–in pyrometer and extended–life heating element.
  • Graphite crucible
  • Automatic shut off/on.

Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace 1

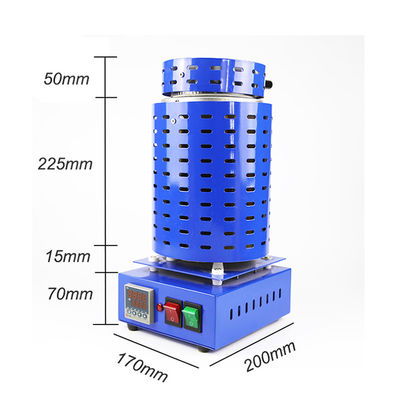

Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace Technical Parameters:




Model IRIS-01-1 IRIS-01-2
Voltage 110V 220V
Power 1KW 1.5KW
Adjustable temperature 0-1200℃ 0-1200℃
Melting time  30 mins 30 mins
Accuracy ±1°C ±1°C
Material of the furnace liner Silicon carbide materials
Material of the furnace cover Stainless steel
Note hermocouple input, relay output



Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace Packaging&Delivery


  • All the goods will be test and packed well before shipping to avoid damage during delivery.
  • Plastic inside,Polyfoam filled,Carton Outside.
  • Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.



Graphite Crucible 2KG Max Temparature 1200C Mini Gold Melting Furnace 2
