Payment & Shipping Terms:
|Voltage:||380V 50Hz 3phase||Power:||45kw|
|Application:||Melting Factory Or Personal Shop||Size:||460*270*450mm|
|Temperature:||500-2300 Degree||Cooling Way:||Water Cooled|
15kw Induction Melting Furnace,
Shock Resistant Induction Melting Furnace,
IRIS stainless steel melting furnace

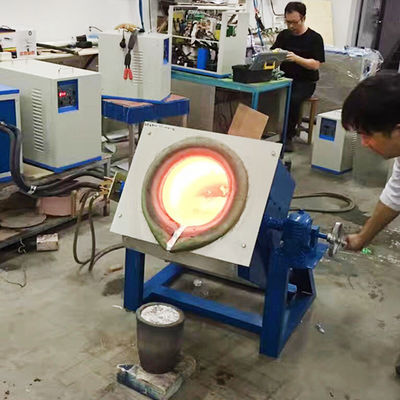

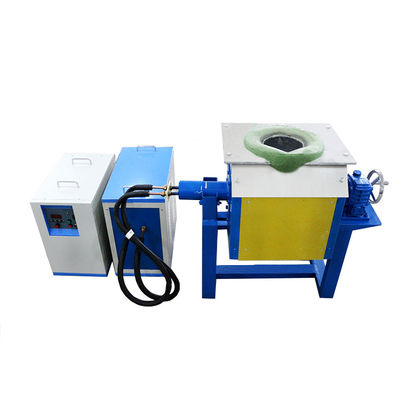

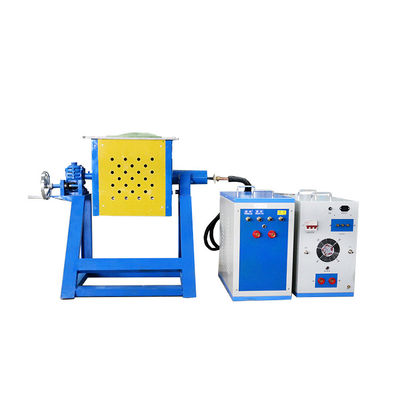

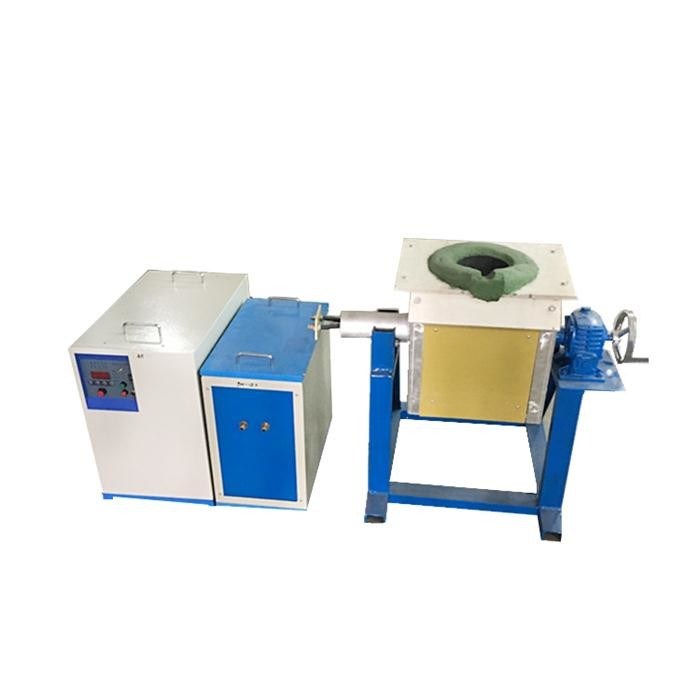

Shock resistant Blue 15kw Medium Frequency Induction iron melting furnace
The Features of medium frequency induction melting furnace:
1) Medium frequency induction melting furnace can be used for the melting of steel, stainless steel, iron, brass, copper, aluminum, gold, silver, platinum , zinc, metal alloys and so on.
2) Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.
3) Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4) Compared with SCR medium frequency induction furnace, it can save energy at least 20% and up.
5) Small and light weight, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the college and researching companies to use.
6) 24hours non-stop melting ability.
7) It's easy to change melting furnace for different capacity, different material, different way of pouring out, to suitable for all kinds of requirements.
Technical Parameters of IGBT Medium Frequency Induction Melting Furnace:
