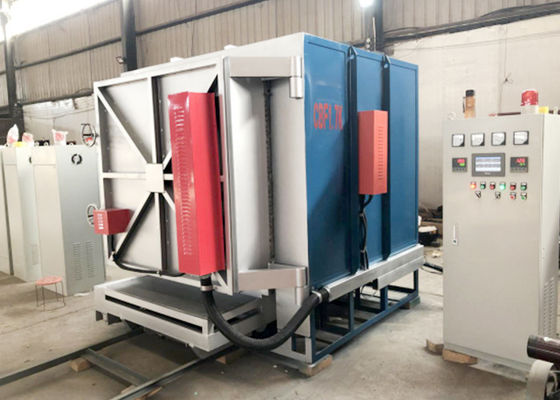

1250C High Temperature Trolley Type Heat Treatment Furnace

1250C High Temperature Trolley Type Heat Treatment Furnace
1250C High Temperature Trolley Type Heat Treatment Furnace

Large Image :  1250C High Temperature Trolley Type Heat Treatment Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRS-SIC100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2999-USD4999/Set
Packaging Details: Standard export wooden box packaging
Delivery Time: Within 25days
Payment Terms: L/C, T/T
Supply Ability: 5 Sets/months
Detailed Product Description
Product Name: Trolley Type Heat Treatment Furnace Furnace Effective Size: 600×1000×1200mm
Capacity: 80 PCS For The Workpieces (600×450×250) Fuel Name: Natural Gas
Furnace Structure: Mullite Light Brick Structure Of Trolley: Grade I High Alumina Heavy Brick
Number Of Burners: 20 Pieces Minimum Fuel Heating Value: 8300Kcal/Nm3
High Light:

1250C Heat Treatment Furnace

,

80pcs Heat Treatment Furnace

,

8300Kcal/Nm3 Heat Treatment Furnace

1250℃ High Temperature Trolley Type Heat Treatment Furnace Use Forfiring Ceramic Parts



1. Equipment application and system composition



This equipment is mainly used in the high temperature firing process of ceramic parts.



2. Mainly parameter



Item Name Description
1 Furnace effective size 600×1000×1200mm
2 Maximum temperature 1250℃
3 Capacity 80 PCS for the workpieces (600×450×250)
4 Furnace temperature uniformity Each point ≤ ± 10 ℃ when the insulation period ends
5 Burner model SIC100
6 Fuel name Natural Gas
7 Minimum fuel heating value 8300Kcal/Nm3
8 Heating method High-speed pulse (flame speed 80-100m / s)
9 Furnace structure Mullite light brick
10 Structure of trolley Grade I high alumina heavy brick
11 Number of burners 20 pieces
12 Temperature control Divided into 3 zones in the length direction
13 Control method Two-stage pulse control, automatic gas ignition function
14 Compressed air pressure 0.3~0.5MPa
15 Fuel burner front pressure 4~8KPa
16 Combustion air pressure 4~5KPa
17 Maximum natural gas consumption 50Nm3/h
18 Average gas consumption About 10-50Nm3/t
19 Heating rate 0℃~450℃/h
20 Cooling rate 0℃~120℃/h(500℃以下≤40℃/h)
21 Trolley access method Electric
22 Furnace door opening method Open manually left or right
23 Trolley running speed 6~8m/min
23 Furnace door lifting speed 7m/min
24 Temperature control instrument accuracy grade 0.3 grade
25 Thermocouple Platinum rhodium platinum (S division number)
26 Electrical automatic control system Master Siemens PLC
27 Furnace surface temperature rise Furnace side≤45 ℃, furnace top≤55 ℃
28 Size 7500×2300×2500mm
29 Weight 9200Kg



3.Equipment List



Furnace body: 1pc
Trolley: 1pc
Burner: 20pcs
Pipeline: 2sets
Combustion fan: 1pc
Furnace door: 1set
Furnace door compaction: 1set
Executive control cabinet :1pc
Thermocouple: 3pc
Compensation wire :80m
Accessories: Burner, burner control box, thermocouple
