5KVA 50KG Induction Bearing Heater Ball Bearing Heating Machine

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

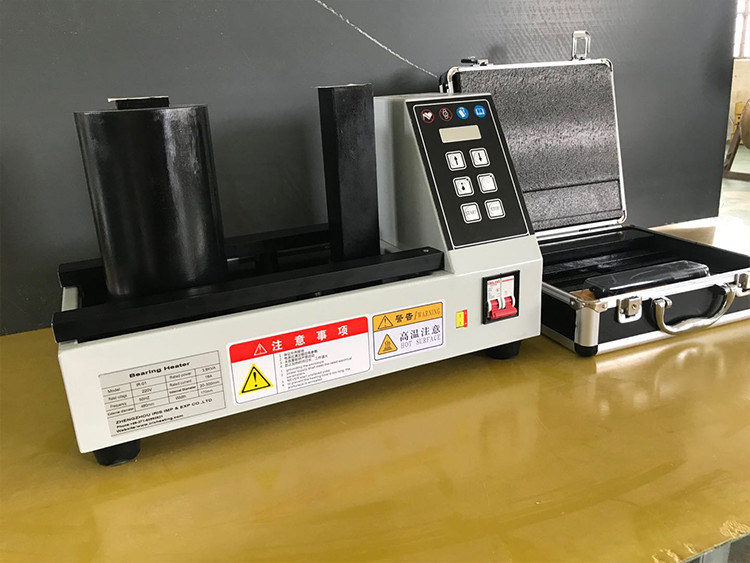

5KVA 50KG Induction Bearing Heater Ball Bearing Heating Machine

5KVA 50KG Induction Bearing Heater Ball Bearing Heating Machine
5KVA 50KG Induction Bearing Heater Ball Bearing Heating Machine

Large Image :  5KVA 50KG Induction Bearing Heater Ball Bearing Heating Machine

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IB-01
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD600-USD800/Set
Packaging Details: Standard export wooden box package
Delivery Time: Within 5days
Payment Terms: T/T,Credit card
Supply Ability: 10 Sets/weeks
Detailed Product Description
Product Name:: 5 KVA 220 V Induction Bearing Heater Vertical Heating Inner Hole: 20-140 Mm
Horizontal Heating Inner Bore: 140-300mm Maximum Outer Diameter: 400mm
Maximum Width: 140mm Apparent Power: 5KVA
Current: 23A Load Bearing: 50KG
Magnetic Probe: K Type ( Accuracy: ±5 ℃) Warranty: One Year
High Light:

5KVA Induction Bearing Heater

,

50KG Induction Bearing Heater

,

IRIS Ball Bearing Heating Machine

5 KVA 220 V Induction Bearing Heater for Heating Ball Bearing 140-300 mm



High performance induction heaters are mainly used to heat bearings, making bearing installation safer and faster, and suitable for heating gears, couplings, flanges and other closed-loop metal parts.



5 KVA 220 V Induction Bearing Heater for Heating  Ball Bearing 140-300 mm



Feature:

Quick heating, high efficient and energy saving
Clean: no oil fume or oil vapor or wastes to be dealt with
Safe, clean and environmentally-friendly
Quick, but no damage for the bearing
Design concept :practicality, reliability, convenience and durability.



Parameter:



Model IB-01 IB-02 IB-03
Vertical heating inner hole: 20-140mm 40-160mm 80-180mm
Horizontal heating inner bore: 140-300mm 160-400mm 180-500mm
Maximum outer diameter: 400mm 550mm 750mm
Maximum width: 140mm 200mm 280mm
Voltage 220v 380v 380V
Apparent power 5KVA 8KVA 25KVA
Current 23A 23A 66A
Load bearing 50KG 100KG 300KG
Adjustment method Time(0-9999s)/Temperature (0-300℃)
Magnetic probe: K type ( Accuracy: ±5 ℃)
Machine weight 55KG 85KG 160KG
Mahcine size 520*380*350mm 600*380*490mm 1300*400*825mm



Working conditions

  • The heater is designed for indoor use in an industrial environment.
  • The ambient temperature can be from -10℃ to 50℃ (14℉-122℉).
  • The ambient humidity can be between 5%-90%.
