Product Details:
Payment & Shipping Terms:
|
| Product Name:: | Induction Bearing Heater | Vertical Heating Inner Hole: | 20-145 Mm |
|---|---|---|---|
| Horizontal Heating Inner Bore: | 140-300mm | Maximum Outer Diameter: | 400mm |
| Maximum Width: | 140mm | Apparent Power: | 5KVA |
| Current: | 23A | Load Bearing: | 50KG |
| Magnetic Probe: | K Type ( Accuracy: ±5 ℃) | Adjustment Method: | Time(0-9999s)/Temperature (0-300℃) |
| High Light: | 50KG Portable Bearing Heater,Electromagnetic Portable Bearing Heater,5KVA Electromagnetic Bearing Heater |
||

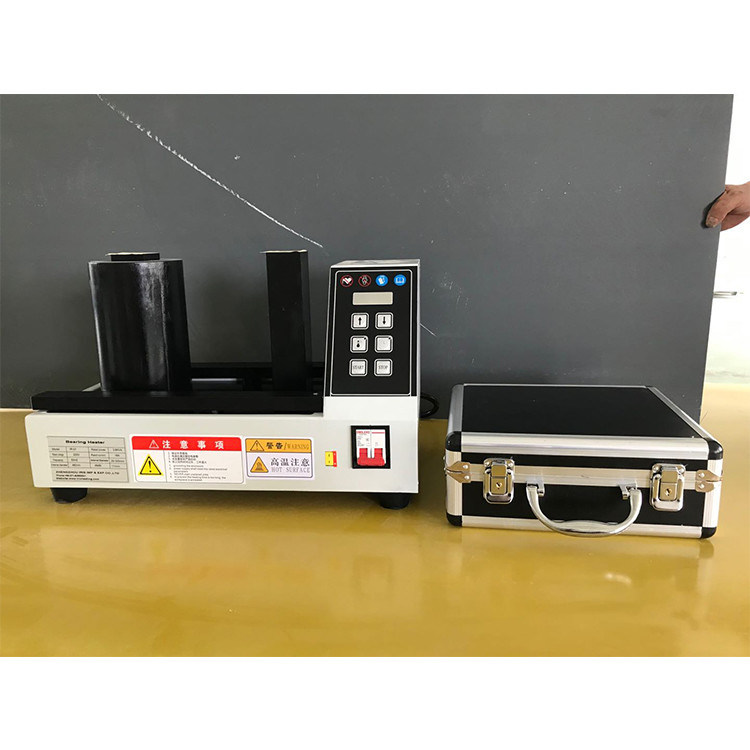

Portable Gear Bearing Electromagnetic Heaters Induction Heaters Assemble Quickly
The working principle of the bearing heater is to use metal to generate eddy current in the alternating magnetic field to generate heat by itself. It is usually used in metal heat treatment. The principle is that when a thicker metal is in an alternating magnetic field, current will be generated due to electromagnetic induction. After the thicker metal generates current, the current will form a spiral flow path inside the metal, so that the heat generated by the current flow is absorbed by the metal itself, which will cause the metal to quickly heat up.
Feature:
Quick heating, high efficient and energy saving
Clean: no oil fume or oil vapor or wastes to be dealt with
Safe, clean and environmentally-friendly
Quick, but no damage for the bearing
Design concept :practicality, reliability, convenience and durability.
Parameter:
| Model | IB-01 | IB-02 | IB-03 |
| Vertical heating inner hole: | 20-140mm | 40-160mm | 80-180mm |
| Horizontal heating inner bore: | 140-300mm | 160-400mm | 180-500mm |
| Maximum outer diameter: | 400mm | 550mm | 750mm |
| Maximum width: | 140mm | 200mm | 280mm |
| Voltage | 220v | 380v | 380V |
| Apparent power | 5KVA | 8KVA | 25KVA |
| Current | 23A | 23A | 66A |
| Load bearing | 50KG | 100KG | 300KG |
| Adjustment method | Time(0-9999s)/Temperature (0-300℃) | ||
| Magnetic probe: | K type ( Accuracy: ±5 ℃) | ||
| Machine weight | 55KG | 85KG | 160KG |
| Mahcine size | 520*380*350mm | 600*380*490mm | 1300*400*825mm |
Working conditions
