| Product Name: | Medium Frequency Small Induction Furnace Aluminum Copper Smelt Furnaces | Model: | 90kw |
|---|---|---|---|
| Voltage:: | 380v | Output Current:: | 25-170A |
| Oscillation:: | 1-20HZ | Melting Material: | Copper |
| Capacity:: | 120kg | Melting Time: | 60 Mins |
| Melting Temperature: | 1300 ℃ | Heating Method:: | Induction Method |
| High Light: | 20HZ Aluminum Copper Induction Furnace,170A Aluminum Copper Induction Furnace,120kg Induction Melting Furnace |
||
Medium Frequency Small Induction Furnace Aluminum Copper Smelt Furnaces
The medium frequency IGBT induction melting furnace is small size and move easily, which is very suitable for small output metal melting. Generally speaking, tilt furnace is the best choice for metal smelting less than 100kg. Not only the cost is low, but it is also convenient to replace the crucible.
Main models melting abilities:
| Model | Aluminum | Copper | Stainless |
| MF-15KW | 3kg | 10kg | 3kg |
| MF-25KW | 5kg | 20kg | 5kg |
| MF-35KW | 10kg | 30kg | 10kg |
| MF-45KW | 18kg | 50kg | 18kg |
| MF-70KW | 25kg | 100kg | 25kg |
| MF-90KW | 40kg | 120kg | 40kg |
| MF-110KW | 50kg | 150kg | 50kg |
| MF-160KW | 100kg | 250kg | 100kg |

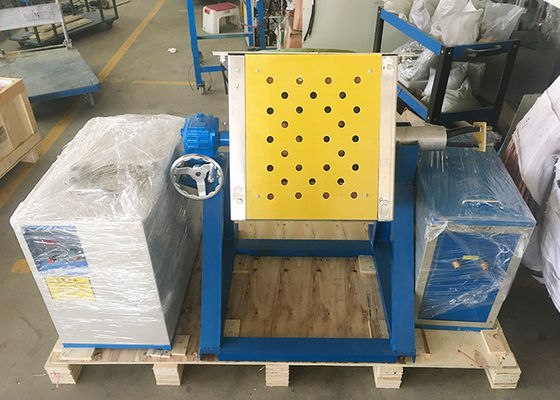

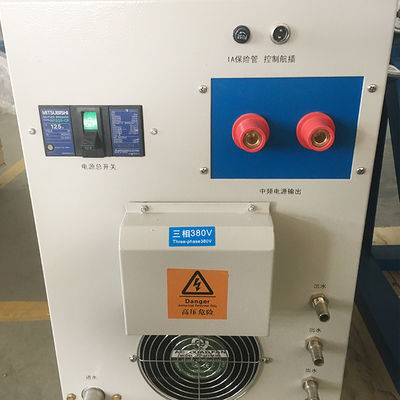

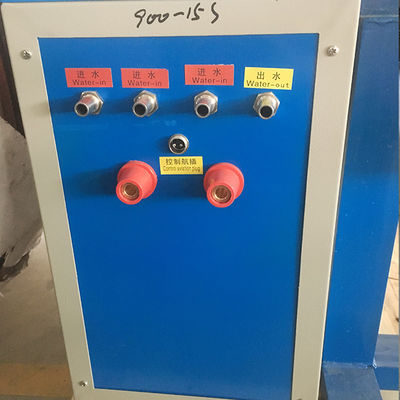

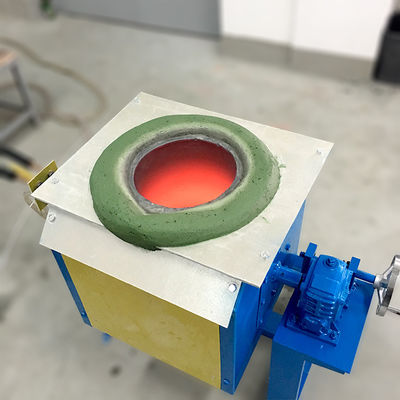

Smelting metals such as Gold,Sliver, Copper, Bronze, Brass, Steel,Aluminum etc.Small capacity smelt of them , the best chooise is the Medium Frequency Furnace Induction Melting Machine.Small medium frequency melting furnace includes power supply cabinet, capacitor cabinet and melting furnace body.
