2192F Mini Gold Melting Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

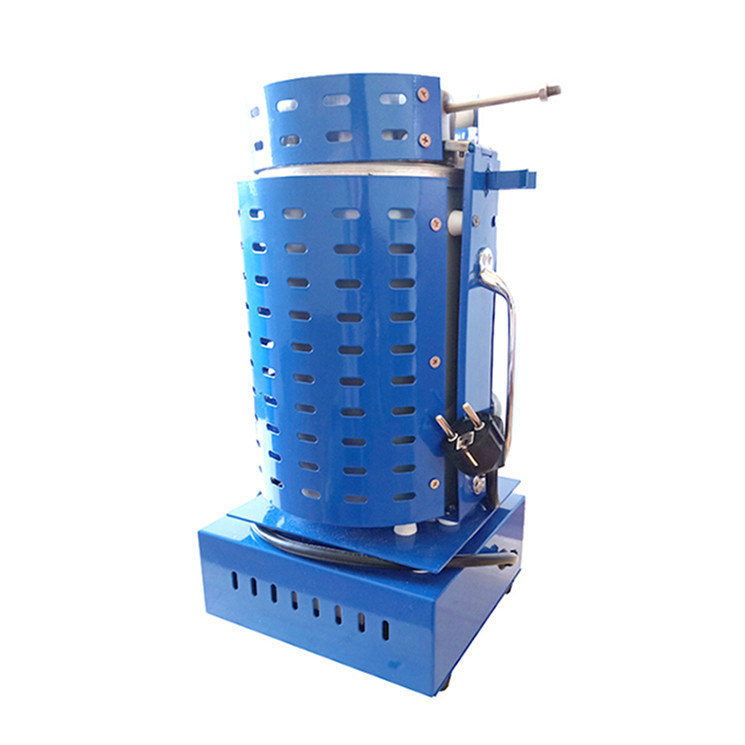

2192F Mini Gold Melting Furnace

2192F Mini Gold Melting Furnace
2192F Mini Gold Melting Furnace

Large Image :  2192F Mini Gold Melting Furnace

Product Details:
Place of Origin: Henan ,China
Brand Name: IRIS
Certification: CE
Model Number: IS-01
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD240/SET
Packaging Details: Carton Case
Delivery Time: 5days
Payment Terms: T/T
Supply Ability: 500SET/Month
Detailed Product Description
After Sales: Video Technical Support Voltage: 220 / 380V
Dimension: 170*220*370mm Power: 1500W
Weight: 12kg Color: Red/black
Melting Time: 20-30minutes Melting Material: Gold,silver
Application: Jewelry Shop Use Capacity: 1-3kg
High Light:

2192F Mini Gold Melting Furnace


1200C Mini Gold Melting Furnace


1500W gold melting machine

Mini/Portable Electronic Melting Furnace for Metal Gold/Silver



1. Using high quality materials, high temperature resistance, high efficiency.
2. Small size, convenient to operate and store.
3. Quartz protecting wall, sealed in one, with heat emission hole.
4. The temperature control meter has wide measuring range, high accuration and quick thermal response.
5. High quality crucible and crucible tongs, high temperature resistant, corrosion resistant and durable.



2192F Mini Gold Melting Furnace 0

2. Features

1. Light weight and small volume
2. High efficiency of refining
3. Easy installation and operation
4. Fast speed of raising temperature, the temperature is constant
5. Safe and environment-friendly operation


3 Technical Parameters


Item Decsription
Furnace Voltage 110V/220V Single phase
Furnace Power 1500W
Chamber Size Dia63*170mm
Working Temperatrue 1150 Degrees C(2102F)
Max Temperature 1200 Degrees C(2192F)
Furnace Size 170*220*370mm
Melting Capacity 1-3kg for gold melting
Melting Material Gold copper silver aluminum lead zinc etc
Heating Rate About 20-25 minutes
Furnace Package Carton box package(10kgs,43*30*30cm)
Delivery Time Within 7days after getting payment
Payment Method T/T,PayPal,Western Union and Alibaba TradeAssurance Order
Shipment Fast express transport,such as FedEx,UPS,DHL,TNT,EMS etc
Export Experience 9 years
Others Can be custom


This gold melting furnace includes one graphite crucible,one crucible tong and one manual instruction.

2192F Mini Gold Melting Furnace 1

Notes:As graphite crucibles are easily-consumed products,so sugeest buy some extra ones for spare use.These are common crucibles and moulds.Others can be customized.

Packing and Delivery:

*Normal Package:Carton Box Package for each set furnace;
*If over 10 sets,it will be packaged with the pallet;this way can save a lot of your purchasing cost.

*We have professional packaging and shipping insurance so your purchase will arrive safely.
*Delivered by express,such as UPS,FedEx,DHL,TNT and so on;3-7 working days to the destination generally;
*Payment Terms:T/T,Western Uinon,PayPal and Alibaba Trade Assurance Order are all OK for us.

*Delivery time:Within 7 days after getting the payment;
