|Product Name:||20kg Steel 45kw Medium Frequency Furnace Induction Metal Heater Melting Machines||Model:||45kw|
|Maximum Input Power:||45KW||Oscillation Frequency:||1-20KHZ|
|Input Current::||5-70A||Output Voltage::||70-520V|
|Input Voltage::||3 Phase 380V 50/60HZ||Cooling Water Requirements::||≥ 0.2Mpa, ≥ 5L/min|
|Load Duration::||100%||Melting Metal:||Steel,Iron,Aluminum|
20kg Medium Frequency Induction Melting Furnace,
45kw Medium Frequency Induction Melting Furnace,
20kg induction metal heater

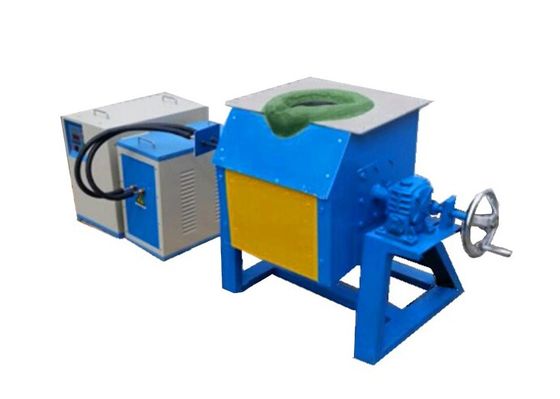

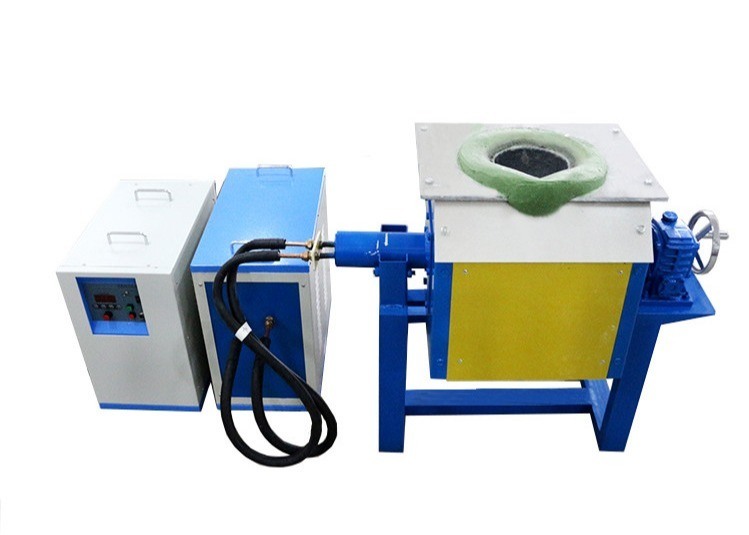

Medium Frequency Furnace Induction Metal Heater Melting Machines
The IGBT intermediate frequency power supply is a series resonance type intermediate frequency induction melting furnace. Its inverter device is a new type of IGBT module (insulated gate bipolar transistor, produced in Germany). It is mainly used for melting ordinary carbon steel and alloys. Steel, cast steel, non-ferrous metals. It has the advantages of fast melting speed, energy saving and low harmonic pollution.
20kg Steel 45kw Medium Frequency Furnace Induction Metal Heater Melting Machines can be used for melting steel,stainless steel , brass, aluminum, gold silver etc. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.Wide

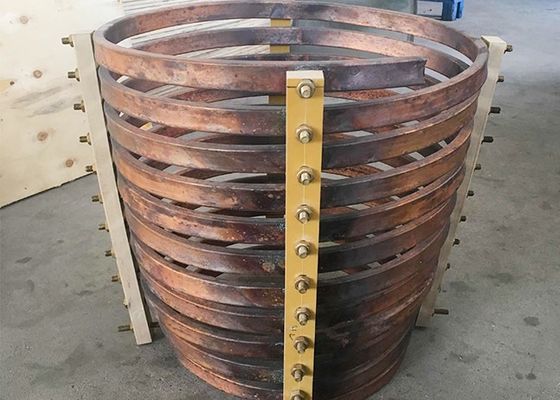

frequency range from1KHZ-20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.When melting, the cold furnace need 50-60minutes.The hot furnace need 20-30 minutes.
Features of IGBT Medium Frequency Induction Melting Furnace
●Product startup performance is very good.
It adopts a series resonant circuit, which completely solves the problem of difficulty in starting the thyristor at intermediate frequency.
●The product hardly produces high-order harmonics.
It will not pollute the power grid and transformer, the switch will not generate heat, and will not interfere with the operation of electronic equipment in the factory.
●The product has high reliability.
The main components are all produced by world famous factories.
●The product saves electricity.
●Product water circulation system adopts water heat exchanger and internal and external water circulation system.
The internal circulation is distilled water, which can be used for a long time without scaling or clogging of the water channels in the equipment, which greatly reduces the failure and saves the maintenance cost.
●The product can always maintain constant power output during the smelting process.
Medium Frequency Furnace Induction Metal Heater Melting Machines:
|Melting furnace model||Steel and stainless steel||Gold, copper,silver||aluminum|
Scope of application
scenes to be used

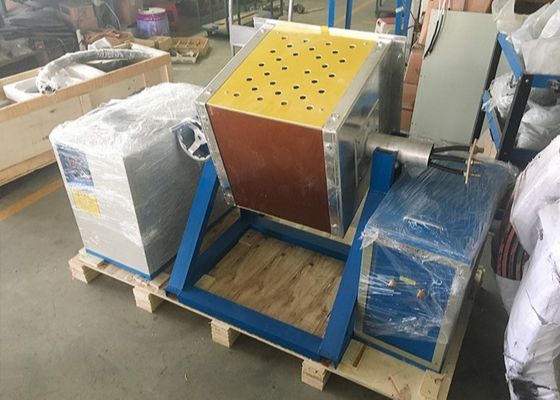

1. Standard export wooden box packaging.
2. Foam and plastic are used for shockproof and waterproof. Steel belt and rivets are used to fasten the wooden case.
3. The bottom pallet can bear 3 times weight than goods.
4. Shipping the goods within 5 working days after received the payment.
