Bronze Copper 150kg Medium Frequency Induction Melting Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

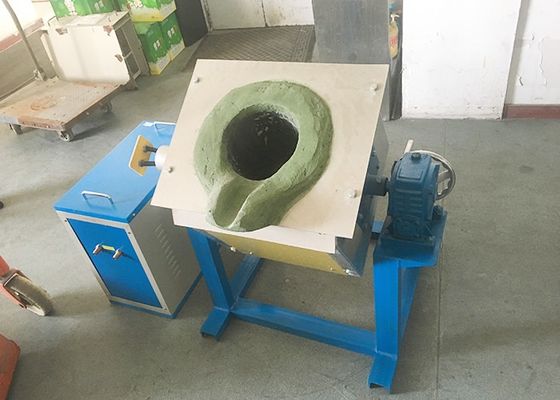

Bronze Copper 150kg Medium Frequency Induction Melting Furnace

Bronze Copper 150kg Medium Frequency Induction Melting Furnace
Bronze Copper 150kg Medium Frequency Induction Melting Furnace Bronze Copper 150kg Medium Frequency Induction Melting Furnace Bronze Copper 150kg Medium Frequency Induction Melting Furnace Bronze Copper 150kg Medium Frequency Induction Melting Furnace

Large Image :  Bronze Copper 150kg Medium Frequency Induction Melting Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9001
Model Number: MF-110150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8999-$10080/set
Packaging Details: Export wooden box
Delivery Time: Within 5 working days
Payment Terms: T/T
Supply Ability: 100 set/month
Detailed Product Description
Product Name: Medium Frequency Induction Bronze Copper Melting Pot With Hydraulic Tilting System Induction Melting Furnace 150kg Model: 110kw
Voltage:: 380v Output Current:: 30-200A
Oscillation:: 1-20HZ Melting Material: Copper
Capacity:: 150kg Melting Time: 40mins
Melting Temperature: 1300 ℃ Accessories: IGBT
High Light:

150kg Medium Frequency Induction Melting Furnace

,

20HZ Medium Frequency Induction Melting Furnace

,

150kg vacuum induction melting furnace



Medium Frequency Induction Bronze Copper Melting Pot With Hydraulic Tilting System Induction Melting Furnace 150kg





The small intermediate frequency melting furnace includes a power supply cabinet, a capacitor cabinet, and a melting furnace body,and the spare parts of the furnace is the crucible, because you need to replace the crucible regularly.



When the smelting capacity is more than 100kg, you can choose hydraulic tilting instead of manual operation, which is more labor-saving and safer.Regarding cooling water equipment, we recommend that you use pools and water pumps instead of chillers, which is more economical. Of course, we will provide you with drawings.



Main models of the Medium Frequency Induction Bronze Copper Melting Pot With Hydraulic Tilting System Induction Melting Furnace 150kg​ ​:



Model Aluminum Copper Stainless
MF-15KW 3kg 10kg 3kg
MF-25KW 5kg 20kg 5kg
MF-35KW 10kg 30kg 10kg
MF-45KW 18kg 50kg 18kg
MF-70KW 25kg 100kg 25kg
MF-90KW 40kg 120kg 40kg
MF-110KW 50kg 150kg 50kg
MF-160KW 100kg 250kg 100kg



Medium Frequency Induction Bronze Copper Melting Pot With Hydraulic Tilting System Induction Melting Furnace 150kg

Smelting metals such as Gold,Sliver, Copper, Bronze, Brass, Steel,Aluminum etc.Small capacity smelt of them , the best chooise is the Medium Frequency Furnace Induction Melting Machine.Small medium frequency melting furnace includes power supply cabinet, capacitor cabinet and melting furnace body.

Medium Frequency Induction Bronze Copper Melting Pot With Hydraulic Tilting System Induction Melting Furnace 150kg

Medium Frequency Induction Bronze Copper Melting Pot With Hydraulic Tilting System Induction Melting Furnace 150kg include:



Medium Frequency Induction Bronze Copper Melting Pot With Hydraulic Tilting System Induction Melting Furnace 150kg

Medium Frequency Induction Bronze Copper Melting Pot With Hydraulic Tilting System Induction Melting Furnace 150kg
