35KW 20kg Industrial Induction Melting Furnace For Metal Iron Copper

35KW 20kg Industrial Induction Melting Furnace For Metal Iron Copper
35KW 20kg Industrial Induction Melting Furnace For Metal Iron Copper 35KW 20kg Industrial Induction Melting Furnace For Metal Iron Copper 35KW 20kg Industrial Induction Melting Furnace For Metal Iron Copper 35KW 20kg Industrial Induction Melting Furnace For Metal Iron Copper

Large Image :  35KW 20kg Industrial Induction Melting Furnace For Metal Iron Copper

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IRIS-3501
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3140/Set
Packaging Details: Wooden Box
Delivery Time: Within 5 working days
Payment Terms: T/T, Credit card
Supply Ability: 500 sets per month
Detailed Product Description
Product Name: Cost-Effective Industrial Melting Furnace For Metal Iron Copper Electric Smelting Furnace Industrial Induction Oven Model: 35KW
Maximum Input Power: 35KW Oscillation Frequency: 1-20KHZ
Input Current:: 5-70A Output Voltage:: 70-520V
Input Voltage:: 3 Phase 380V 50/60HZ Cooling Water Requirements:: ≥ 0.2Mpa, ≥ 5L/min
Melting Metal: Iron Melting Capacity: 20kg
High Light:

20kg Industrial Induction Melting Furnace

,

35KW Copper Induction Melting Furnace

,

Metal Iron Industrial Melting Furnace

Cost-Effective Industrial Melting Furnace For Metal Iron Copper Electric Smelting Furnace Industrial Induction Oven



Small medium frequency smelting furnaces are widely used in scrap metal smelting, such as aluminum cans, steel powder, copper rods, etc. The metal smelting furnace is simple and convenient, which can meet the needs of small and medium-sized production. We can provide the replacement of crucible and refractory materials. The thoughtful service has won the trust of our customers. Our customers have many purchases in countries such as Singapore, Malaysia, Myanmar, Vietnam, Mongolia, Russia, Romania and Chile, as well as Saudi Arabia and other countries.

Cost-Effective Industrial Melting Furnace For Metal Iron Copper Electric Smelting Furnace Industrial Induction Oven



Technical Parameters of Cost-Effective Industrial Melting Furnace For Metal Iron Copper Electric Smelting Furnace Industrial Induction Oven:



Melting furnace model Steel and stainless steel Gold, copper,silver aluminum
30kw 2kg 10kg 3kg
40kw 5kg 20kg 6kg
50kw 10kg 30kg 10kg
60kw 18kg 50kg 20kg
80kw 25kg 100kg 30kg
120kw 50kg 150kg 50kg
160kw 100kg 250kg 100kg

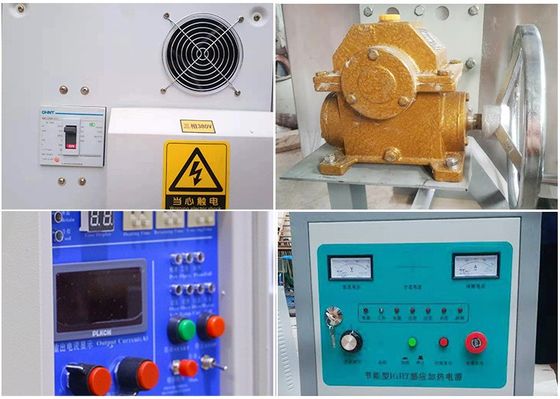

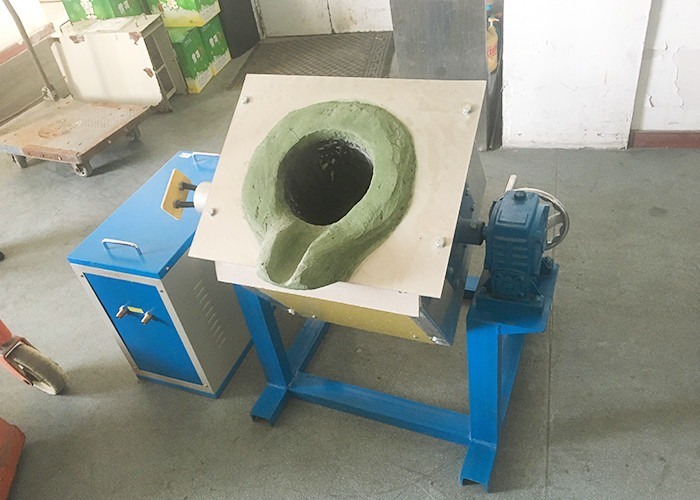

The small intermediate frequency melting furnace includes a power supply cabinet, a capacitor cabinet, and a melting furnace body,and the spare parts of the furnace is the crucible, because you need to replace the crucible regularly.If you need, we can offer some refractory material. Regarding cooling water equipment, we recommend that you use pools and water pumps instead of chillers, which is more economical. or you can choose the chillers , it is more tidy and clean.



When the smelting capacity is more than 100kg, you can choose hydraulic or motor tilting instead of manual operation, which is more labor-saving and safer.



Cost-Effective Industrial Melting Furnace For Metal Iron Copper Electric Smelting Furnace Industrial Induction Oven



We Guarantee:





1. Standard export wooden box packaging.

2. Foam and plastic are used for shockproof and waterproof. Steel belt and rivets are used to fasten the wooden case.
3. The bottom pallet can bear 3 times weight than goods.

4. Shipping the goods within 5 working days after received the payment

.

Cost-Effective Industrial Melting Furnace For Metal Iron Copper Electric Smelting Furnace Industrial Induction Oven
