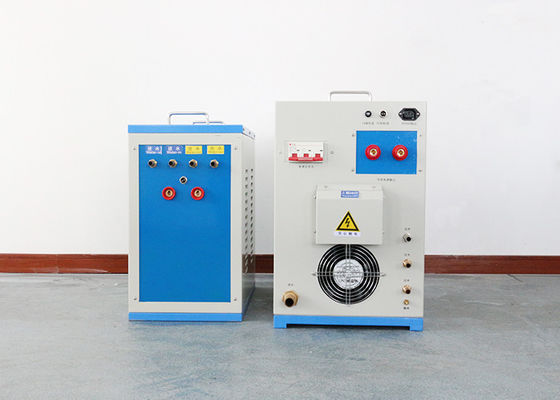

35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine

35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine
35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine 35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine 35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine 35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine 35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine

Large Image :  35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO
Model Number: 35KW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2369
Packaging Details: Export Woodern Box
Delivery Time: within 3-7 working days
Payment Terms: T/T
Supply Ability: 500 set /month
Detailed Product Description
Product Name: Small Portable Heating Speed High Frequency Gold Silver Copper Steel Induction Melting Furnace Model: 35kw
Input Voltage: 3Phase 380V 50/60Hz Maximum Input Power: 35KW
Cooling Water: ≥6L/min (1.6 Gallons) Output Frequency: 30-80KHz
Heating Current: 12-70A Max Input Current: 55A
Duty Cycle: 100% Auto Heating Time: 1-99S
High Light:

35KW Gold Melting Machine

,

55A Gold Melting Machine

,

30KHZ high frequency induction heating machine

Small Portable Heating Speed High Frequency Gold Silver Copper Steel Induction Melting Furnace



Applytion of the high Frequency Gold Silver Copper Steel Induction Melting Furnace:


1. Melting for iron, steel, copper, aluminum;
2. Melting for precious metals such as gold and silver;
3. Melting for ferrous and nonferrous metals;
4. Melting for alloys;
5. Melting for metal rods;

6. Other heating work for metal products.



35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine 0

35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine 1



Parameter of the high Frequency Gold Silver Copper Steel Induction Melting Furnace:



Product name High frequency induction heating machine
Models HF-35AB Input voltage 3Phase 380V 50/60Hz
Maximum input power 35KW Cooling water 6L/min (1.6 gallons)
Output frequency 30-80KHz Heating current 12-70A
Max input current 55A Duty cycle 100%
Auto heating time 1-99S Net weight 68kg
Auto retaining time 1-99S Size(mm) 710*660*760
Auto cooling time 1-99S Packing weight 88kg



Feature of high Frequency Gold Silver Copper Steel Induction Melting Furnace:



1. IGBT module and Inverting technologies of third generation been used.Higher reliability and lower maintenance cost.

2. 100% Duty cycle, continuous working is allowed at maximum power output.

3. Constant current or constant power status can be selected accordingly to achievehigher heating efficiency.

4. Display of heating power and heating current and oscillating frequency.

5. Simple to install, Installation can be done by unprofessional person very easily.

6. Convenient to change furnace crucible for different material melting.

7. Use ready-made crucible: no need skilled person to make lining with refractory material, convenient for users.

8. Small size, light weight, and convenient to move.

9. Low power consumption, with electromagnetic grinding capability, providing uniform smelting.Save at least 20% energy comparing with KGPS thyristor type induction system.

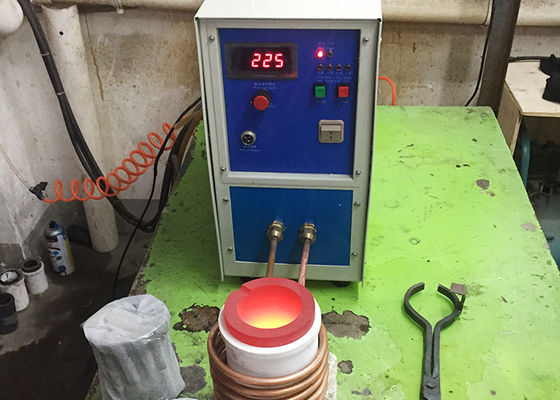

Application examples

35KW Copper Silver Gold Melting Machine High Frequency Induction Heating Machine 2

FAQ:



Q:How to install your machine

A:We have paper installation instructions and video, and you can contact us to teach you


Q:Do you have any equipment in stock?

A:Yes, we have some of the best-selling models in stock, and can shipped immediately after payment


Q:How is your quality control?

A:We have a professional team responsible for product testing and packaging before delivery, you can be assured to purchase.


Q:How many days can the machine arrive after I bought it?

A:Usually 5-10 days(excluding holiday),large machines take 20-30 days



Q: If the machine get damaged, what can I do ?

A: We will give you some spare parts free of charge during the one-year shelf life of the machine.For the customers who have bought the machine, if there is any problem with the machine, they can take a photo or record a video to us. We will guide the customers to perform the repair.


Q.How about the warranty?

A: All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
