|Product Name:||High Quality 10kg Gold Induction Furnace Mini Gold Melting Furnace 30KW||Input Power:||30kw|
|Melting Capacity:||5kg||Melting Time:||10 Min|
|Melting Temperature:||1600℃||Frequency:||High Frequency|
10kg Mini Gold Melting Furnace,
30KW Mini Gold Melting Furnace,
30KW Gold Induction Furnace

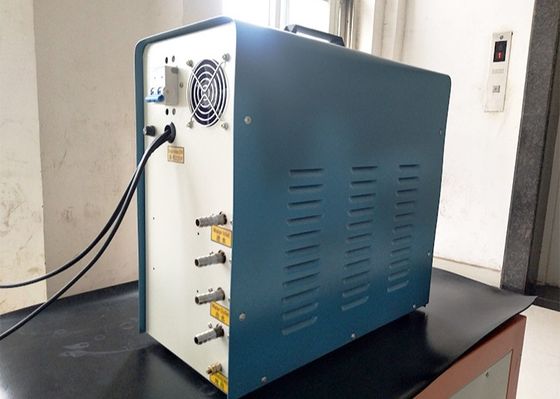

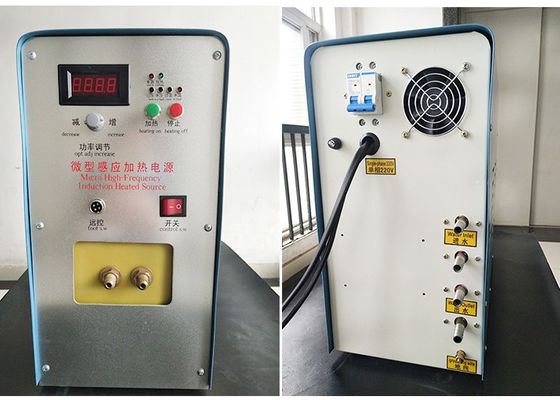

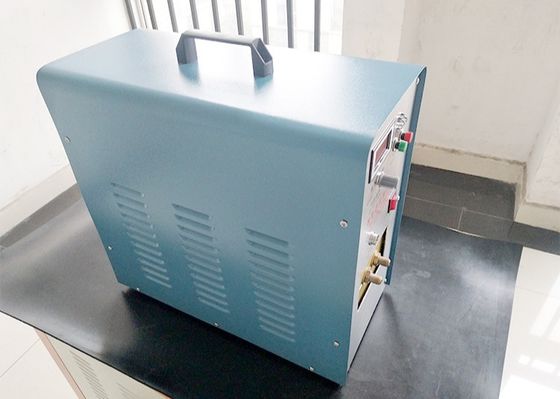

High Quality 10kg Gold Induction Furnace Mini Gold Melting Furnace 30KW
Product introduction of High Quality 10kg Gold Induction Furnace Mini Gold Melting Furnace 30KW
|Melt material||Gold||Gold,steel, Copper|
|Melting time||10 mins||10 mins|
|Frequency||High Frequency||High Frequency|
Mainly used in
Mainly for melting range of high quality alloy steel, carbon steel, alloy cast iron ,gold,copper and a variety of non-ferrous metals
Furnace using a non-magnetic metal asbestos board, induction coils, refractories and high-strength insulation materials and other components; non-magnetic metal aluminum material for the furnace. Copper rod connected to the furnace and sensors to asbestos and refractory bricks lining material.
Induction coil shaped brass around the system.Induction coils outside of the welded M8 bolts and insulation column connected, the user can easily disassembled when replacing consumable parts. Cooling water should be top intake and below out of.
Furnace drive adopt mechanical transmission. Reducer output shaft driven by the motor, and then realized through furnace shaft rotation. Hand wheel of gear reducer can be used manually during a power outage . Reducer should be regularly add oil into the oiling hole
Mounting arrangement of the equipment should be determined according to the actual needs proper position, should reference floorplan and base on map provided by us,the furnace and converter should not be too far away, so as to avoid the loss of power.
After you determine the model, you need to determine your crucible:
1. Use graphite crucible to melt gold
2. Use silicon carbide crucible to melt copper
3. Use magnesium oxide crucible to melt steel
If you are interested in small high frequency melting furnace, please contact me to get the more details.
