|Product Name:||Heating Furnace High Temperature Bogie Hearth Electric Resistance Furnace||Effective Size::||1000×800×800mm|
|Rated Temperature::||950℃||Rated Power::||45KW|
|Working Voltage::||380V||Temperature :control Zones Number:||1|
|Temperature Control Deviation::||±3℃||Insulation Power::||≤15KW|
950C Electric Resistance Furnace,
Bogie Hearth Electric Resistance Furnace,
45KW high temperature resistance furnace

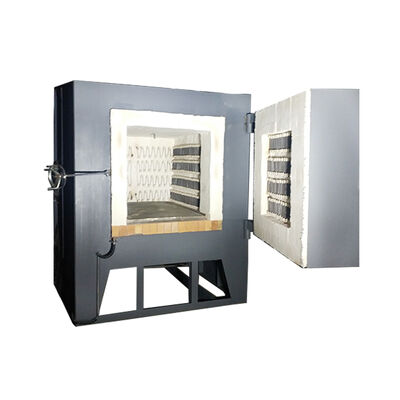

Heating Furnace High Temperature Bogie Hearth Electric Resistance Furnace
The furnace shell will be fabricated out of 4/5/12/20mm thick sheet of Q235 steel plate adequately reinforced with suitable size of angle and channel giving rigid strength to the mechanical structure.We adopt continuous tight welding and rivet welding.
The furnace lining is boned 300mm thick ceramic fiber block and 20mm thick aluminum ceramic fiber and blanket to resist the high temperature. Our insulation material is LUYANG, SHANDONG with excellent insulation effect.
The total thick of the insulation layer is:330mm.
And the fixing anchor can resist temperature 1300℃.
The installation method is side-by-side configuration in four sides and top of furnace, and using anchoring to fix it.
Refractory fiber has the following advantages:Heating Furnace High Temperature Bogie Hearth Electric Resistance Furnace
1)light weight (about 1/10 of the refractory brick)
2)very low coefficient of thermal conductivity
3)Excellent heat insulation, fire prevention, sound-absorbing
4)Heat up fast
5)Low hot melting
6)good heat preservation performance
7)Good thermal shock performance
8)Good tensile strength
9)Excellent thermal stability and thermal shock resistance
10)Long service life, energy saving, convenient maintenance, etc.
It includes furnace door, lifting device, and furnace door pressing device.
The door frame will be manufacture with 10/12mm thick sheet of Q235 steel plate and then install insulation material.
The furnace door is closed and open by electric lifting device with reducer, the lifting speed: 6-8m/min.
There are mechanical limit and electrical limit for furnace up and down. The driving device of the lifting device is installed at the furnace door beam, easy to maintain.

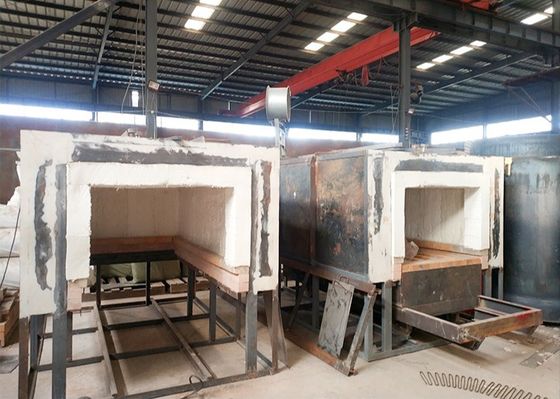

1. Trolley steel structure: Welding with Q235 steel plate
2. Trolley insulation structure: The 1 layer is 10mm Calcium silicate board insulation layer, then one layer of lightweight insulation brick insulating layer , one layer of Mullite firebrick, refractory layer is built by clay load-bearing brick, and the refractory layer is layed with heating element .
3. Trolley drive structure: the trolley is driven by 1 reducer, power 1.1 kw. There are 2 sets of wheels group, wheel diameter:300mm.
4. Trolley sealing: Two sides of furnace body--We adopt double inserted sealing form.
5. Bogie hearth plate mat erial : ZG40Cr2 5Ni20
Heating Furnace High Temperature Bogie Hearth Electric Resistance Furnace technical parameter:
|Temperature control zones number:||1 zone|
|Temperature control deviation:||±3℃|
|Heating element:||resistance band|
|Furnace structure:||fiber cotton|
|Cooling method:||forced cooling by blower|
Q: Can you produce furnaces according to our requirement?
A: Yes, of course, we can. We can design and produce all kinds of furnaces according to customers’ demand.
Q: How do you control the quality?
A: The soul of the quality lies in the spirit of the craftsman, we well understand quality is the basic of survive of an enterprise. We always emphasize in quality control, we test each furnace to guarantee the perfect performance of our furnace before supplying it to customer.
Q: How long is you delivery time?
A: Usually 20-45 days according to your ordered quantity.
Q: What about your payment terms?
A: 100% T/T in advance if the amount is less than USD 3000.00;
50% T/T as tthe prepayment, the balance before delivery if the amount is over than USD3000.00
100% irrevocable, confirmed L/C at sight (Only when the amount over USD500,000.)
Q: Can we be your agent in our country or district?
A: Yes, we are looking for agent and distributors nowadays. If you have interest to be our agent, please contact with us freely, we would like to give you favorite policy to support you.
