Product Details:
Payment & Shipping Terms:
|
| Product Name: | Factory Directly Supply Pit Type Electric Resistance Furnace For Quenching/Tempering/Annealing/Carburizing/Nitriding | Type: | Resistance Furnace |
|---|---|---|---|
| Rated Voltage: | 3*380V / 50-60Hz | Rated Power: | 90KW |
| Number Of Heating Zones: | 1 Zone | Temperature Control Method: | Intelligent Instrument PID Control |
| Power Actuator: | SSR300A/1700V SCR Module | Rated Furnace Capacity: | 400Kg |
| Empty Furnace Heating Time: | ≤1.2h | Furnace Cover Lifting Method: | Hydraulic |
| High Light: | 400Kg Resistance Heating Furnace,90KW Resistance Heating Furnace,400Kg electric resistance furnace |
||

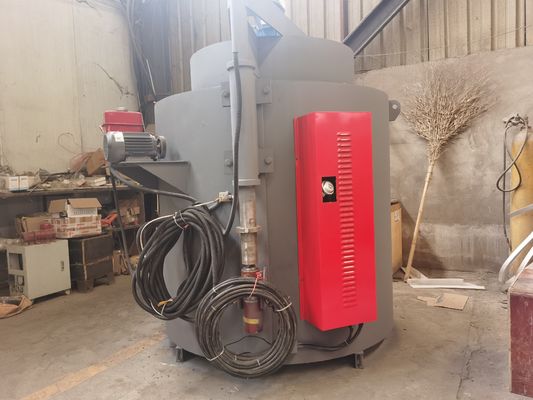

Factory Directly Supply Pit Type Electric Resistance Furnace For Quenching/Tempering/Annealing/Carburizing/Nitriding
This pit type resistance furnace is mainly used for quenching,tempering or annealing of rod, long axis, roll, 45 steel, stainless steel and other metal materials and mechanical parts.

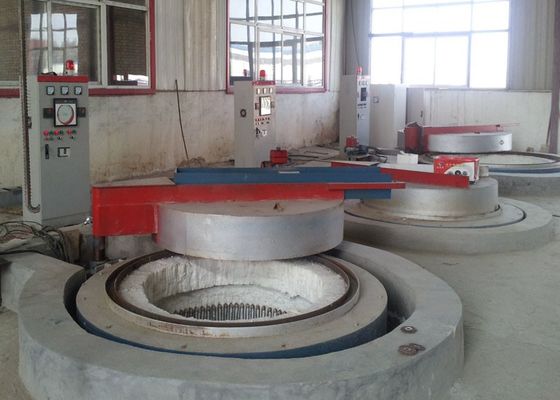

1. Structure of pit type tempering furnace:
Pit type tempering furnace is mainly composed of furnace shell, furnace lining, furnace cover and lifting device, heating device, loading frame and electrical control cabinet.,etc.
2. Application of pit type tempering furnace:
This pit type tempering furnace is mainly used for tempering of carbon steel materials mechanical parts after quenching.
The paramter of the Factory Directly Supply Pit Type Electric Resistance Furnace For Quenching/Tempering/Annealing/Carburizing/Nitriding
| Effective size | Ф700mm×1000mm |
| Rated power | 65KW/45KW |
| Rated voltage | 380V |
| Maximum temperature | 650℃ (until the workpiece is damaged, the instrument sets the maximum input upper limit) |
| Number of heating zones | 1 zone |
| Temperature control method | intelligent instrument PID control |
| Power actuator | SSR300A/1700V SCR module |
| Temperature control deviation | ±2℃ (during heat preservation) |
| Temperature control accuracy | 0.3 level |
| Soaking method | soaking by the top fan |
| Furnace temperature uniformity | ≤±3℃ (five-point temperature measurement in the furnace during the test) |
| Rated furnace capacity | 400Kg |
| Empty furnace heating time | ≤1.2h |
| Empty furnace loss | ≤12KW |
| Furnace wall temperature rise | ≤environment+30℃ |
| Furnace cover lifting method | hydraulic |
| Furnace weight | 2800Kg |
Our service:
As a manufacturer with 15 years’ R&D experience in China, we would like to offer any support you need as follows:
1. Immediate reply to your inquiry.
2. Detailed information of our products, and our company if you need.
st quotation.
4. Immediate reply to your questions about our products
5. Technical support, or alternative accessories if necessary.
