|Product Name:||50kg Copper Melting Medium Frequency Induction Melting Furnace Oven 45 Kw 1300 Degrees||Melting Material:||Copper|
|Maximum Input Power:||45KW||Output Voltage::||70-520V|
|Input Current::||15-95A||Input Voltage::||3-phase 380V, 50/60HZ|
|Melting Temperature:||1300℃||Melting Time:||50 Mins|
50kg Medium Frequency Induction Melting Furnace,
45kw Medium Frequency Induction Melting Furnace,
1300 Degrees vacuum induction melting furnace
50kg Copper Melting Medium Frequency Furnace Induction Oven 45kw 1300 Degrees

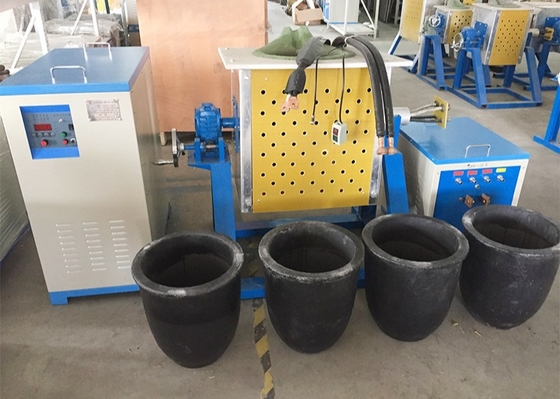

The composing of the 50kg Copper Melting Medium Frequency Furnace:

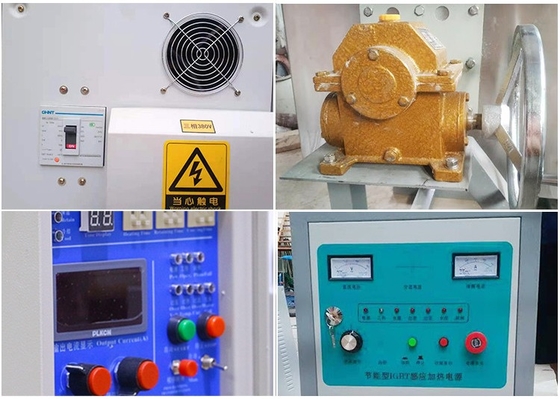

1. IGBT medium frequency main control cabinet
2. Capacitor cabinet
3. Tilting induction melting furnace

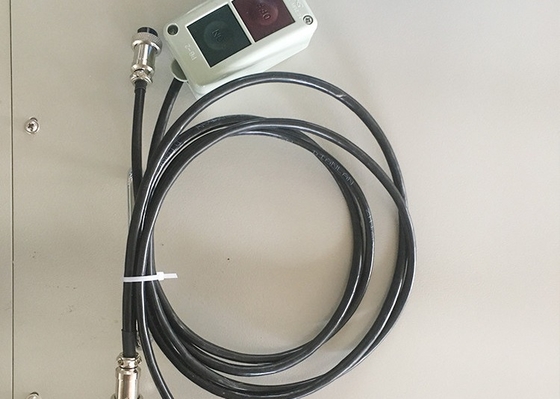

4. Remote controller(foot switch)
Main models melting abilities:
Please note that according to the method of tilting, tilting furnace is divided into three kinds: manual tilting furnace, electrical tilting furnace hydraulic tilting furnace.
Main features of IGBT Industrial Furnace For 50kg Copper Melting Medium Frequency Furnace
1. M.F. melting machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux oxides to produce high quality casting parts.
3. Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency other factors.
4. Power efficiency is 20% higher than the SCR medium frequency machines;
5. Small light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college researching companies to use.
