Product Details:
Payment & Shipping Terms:
|
| Product Name: | 20kw Bearing Induction Heater Electromagnetic Induction Heater | Model: | 20kw |
|---|---|---|---|
| Input Voltage: | 3x380V±15% 50-60Hz | Input Voltage Range: | 320-420V |
| Input Oscillation Frequency: | 5-20KHz | Impedance Matching Level: | 3-5 Level |
| Heating Oscillating Current: | 30A | Structure: | All In One |
| Machine Size: | 320*320*520 | ||
| High Light: | 20kw Bearing Induction Heater,ISO9001 Bearing Induction Heater,IRIS Electromagnetic Induction Furnace |
||

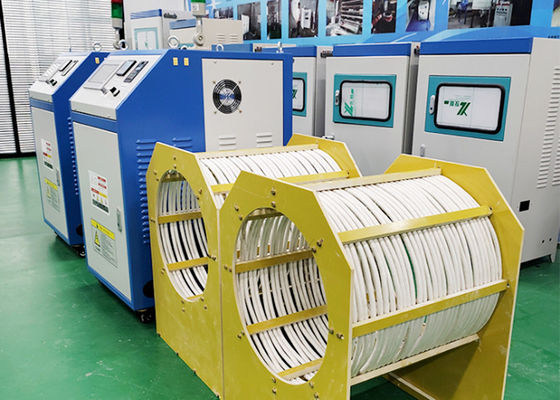

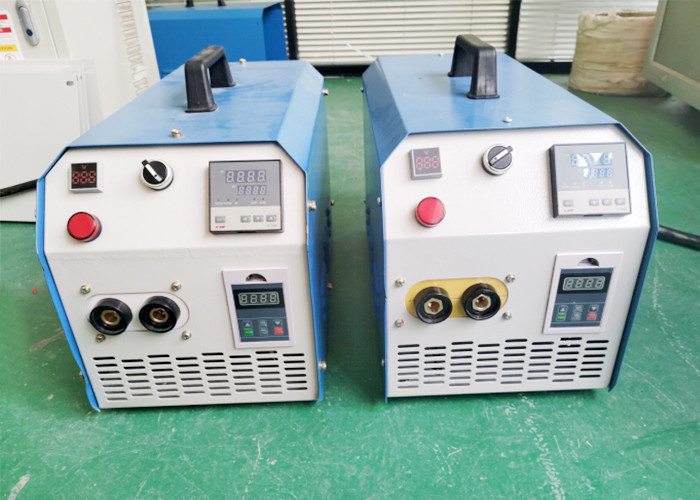

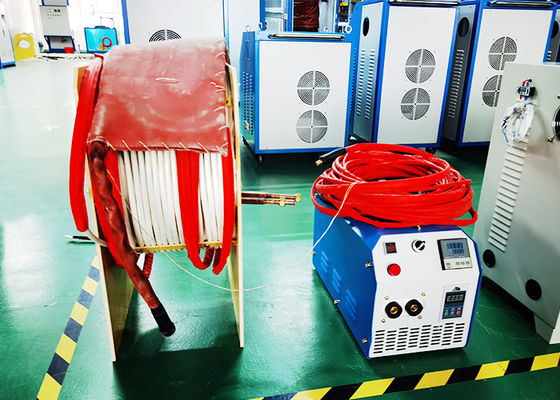

20kw Bearing Induction Heater Electromagnetic Induction Heater
Features:
With strong cooling system,machine can keep on working for long time.Protect the near parts(no need to remove engine parts).
Efficient:only heat the necessary parts accurately,remove all adhesives,logos,side moldings.
Remove stone guard protection and sealers.Clean:remove parts solvent.
Safe:instant heating without flame,with smart energy management.
Technical Parameters of 20kw Bearing Induction Heater Electromagnetic Induction Heater
| Model | IRIS-C20 | IRIS-C30 |
| Input voltage | 3x380V±15% 50-60Hz | 3x380V±15% 50-60Hz |
| Input voltage range | 320-420V | 320-420V |
| Input oscillation frequency | 5-20KHz | 5-20KHz |
| Impedance matching level | 3-5 Level | 3-5 Level |
| Machine weight | about 35kg | about 35kg |
| Heating oscillating current | 12-30A | 20-45A |
| Heating oscillating current | 30A | 50A |
| Maximum input power | 20KW | 30KW |
| Continuous operating power | 15-20kwKW | 20-30KW |
| Duty rate | 100%(40℃ Room) | 100%(40℃ Room) |
| Structure | All in one | All in one |
| Machine size | 320*320*520 |
320*320*520 |
FAQ
1.Why choose our factory?
Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad.
2.The advantage for our product?
High efficiency , energy saving,delivery fast and good quality
3.The advantage for us ?
Reasonable price and best services , advanced equipment and strong technology.
4.How to order?
Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity.
5. What about the quality?
All products according to ISO and National highest standard, also we can offer CE, certificate if necessary.
6. What payment is available?
T/T or the credit Card
7. The delivery time and valid warranty time.
Usually 7-15 working days and the machine have one year warranty.
