Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Frequency Electromagnetic Induction Heater 40KW For Pipe Welding | Model: | 40kw |
|---|---|---|---|
| Input Voltage: | 3x380V±15% 50-60Hz | Input Voltage Range: | 320-420V |
| Input Oscillation Frequency: | 5-20KHz | Impedance Matching Level: | 3-5 Level |
| Heating Oscillating Current: | 65A | Structure: | All In One |
| Machine Size: | 700*480*700mm | ||
| High Light: | High Frequency Electromagnetic Induction Heater,65A Electromagnetic Induction Heater,Pipe Welding pwht machine |
||

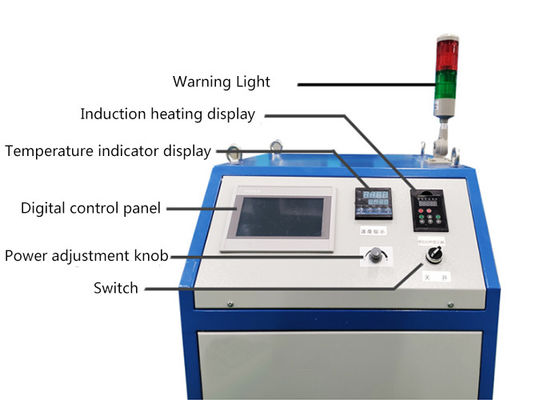

High Frequency Electromagnetic Induction Heater 40KW For Pipe Welding
Induction heating is a method to heat workpieces by generating eddy current inside through
electromagnetic induction.Thanks to its advantages, this equipment is widely used for PWHT,
preheat before welding, anti-corrosion coating mainly in oil and gas pipeline construction and
offshore platform construction. Professional for heat treatment of copper and steel pipes, joints,
flange,circular and longitudinal seams, pipeline support crack, rotor thermal, and so on.
Technical Parameters of High Frequency Electromagnetic Induction Heater 40KW For Pipe Welding
| Model | IRIS-C40 | IRIS-C50 |
| Input voltage | 3x380V±15% 50-60Hz | 3x380V±15% 50-60Hz |
| Input voltage range | 320-420V | 320-420V |
| Input oscillation frequency | 5-20KHz | 5-20KHz |
| Impedance matching level | 3-5 Level | 3-5 Level |
| Machine weight | 65kg | 65kg |
| Heating oscillating current | 20-80A | 75A |
| Heating oscillating current | 65A | 75A |
| Maximum input power | 40KW | 50KW |
| Continuous operating power | 30-40KW | 30-50KW |
| Duty rate | 100%(40℃ Room) | 100%(40℃ Room) |
| structure | All in one | All in one |
| Machine size(mm) | 700*480*700 | 700*480*700 |
FAQ
1.Why choose our factory?
Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad.
2.The advantage for our product?
High efficiency , energy saving,delivery fast and good quality
3.The advantage for us ?
Reasonable price and best services , advanced equipment and strong technology.
4.How to order?
Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity.
5. What about the quality?
All products according to ISO and National highest standard, also we can offer CE, certificate if necessary.
6. What payment is available?
T/T or the credit Card
7. The delivery time and valid warranty time.
Usually 7-15 working days and the machine have one year warranty.
