| Product Name: | Steel Pipe PWHT Induction Heating Machine Welding Preheat Treatment Machine PWHT Stress Relieving Machine | Model: | 60kw |
|---|---|---|---|
| Input Voltage: | 3x380V±15% 50-60Hz | Input Voltage Range: | 320-420V |
| Input Oscillation Frequency: | 5-20KHz | Impedance Matching Level: | 3-5 Level |
| Heating Oscillating Current: | 75A | Structure: | All In One |
| Machine Size: | 320*320*520 | ||
| High Light: | PWHT Induction Heating Machine,60kw Induction Heating Machine,IRIS Pre Heat Treatment Machine |
||

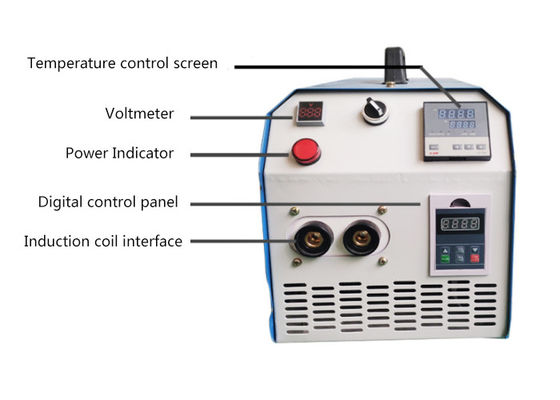

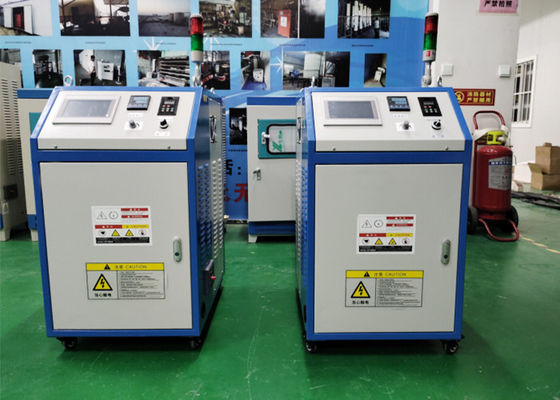

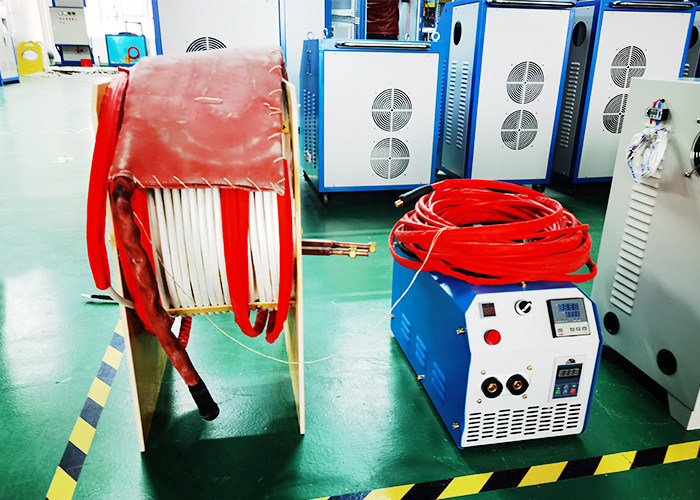

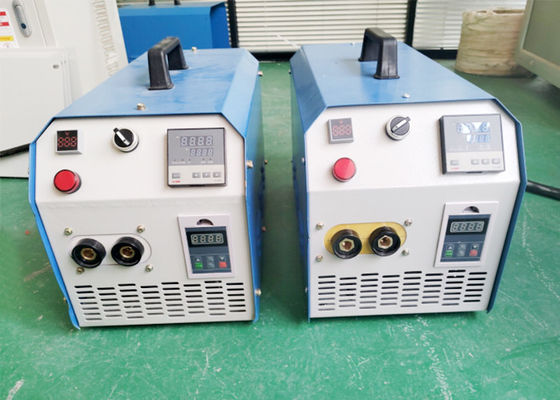

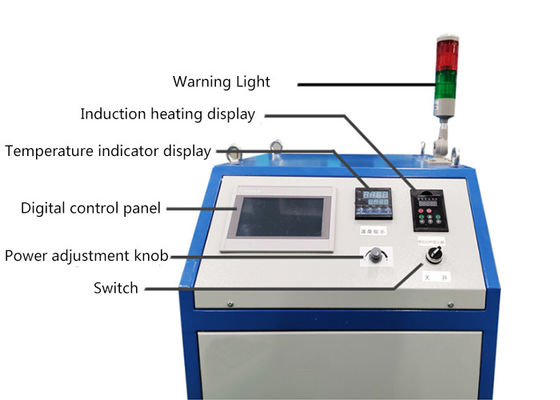

Steel Pipe PWHT Induction Heating Machine Welding Preheat Treatment Machine PWHT Stress Relieving Machine
Induction heating equipment is widely used in metal hardware and tools heat treatment, all kinds of hardware brazing welding, mechanical parts and automobile and motorcycle accessories quenching, stainless steel annealing demagnetization, heat red through the heart and pushing the elbow and some special partly heating, metals and alloys melting and so on.
According to the different parts, it can be local heating, internal hole heating, or the overall heating, surface heat treatment or the overall diathermy, the maximum temperature can up to 1500-2500 ℃.
Technical Parameters of Steel Pipe PWHT Induction Heating Machine Welding Preheat Treatment Machine PWHT Stress Relieving Machine
| Model | IRIS-C50 | IRIS-C60 |
| Input voltage | 3x380V±15% 50-60Hz | 3x380V±15% 50-60Hz |
| Input voltage range | 320-420V | 320-420V |
| Input oscillation frequency | 5-20KHz | 5-20KHz |
| Impedance matching level | 3-5 Level | 3-5 Level |
| Machine weight | 65kg | 65kg |
| Heating oscillating current | 75A | 90A |
| Maximum input power | 50KW | 60KW |
| Continuous operating power | 30-50KW | 30-60KW |
| Duty rate | 100%(40℃ Room) | 100%(40℃ Room) |
| structure | All in one | All in one |
| Machine size(mm) | 700*480*700 | 700*480*700 |
