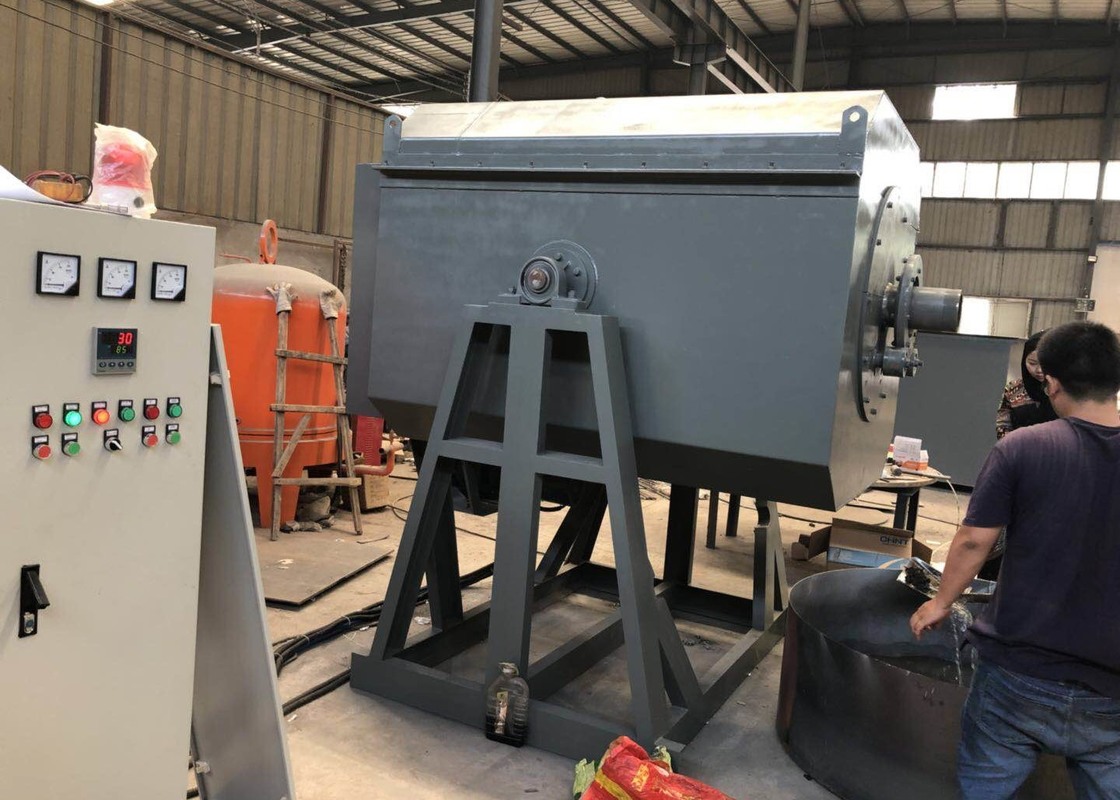

150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw

150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw
150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw

Large Image :  150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-g100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD8954-USD13654/set
Packaging Details: Standard export wooden box packaging
Delivery Time: Within 25 days
Payment Terms: L/C, T/T
Supply Ability: 5 Sets/Month
Detailed Product Description
Product Name: Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg Rated Power: 60Kw(customizable)
Rated Voltage: 380V Rated Temperature: 950℃(customizable)
Effective Heating Size: Ф500×650(customizable) Productivity: 150Kg/h(customizable)
Insulation Thickness: 380mm Heating Method: High Temperature Resistance Band
Roller Rotation Speed: Stepless Frequency Conversion Adjustment Workpieces: Screw
High Light:

150kg Resistance Heating Furnace

,

Quenching Hardening Resistance Heating Furnace

,

150kg vacuum oil quench furnace

Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg



The furnace is mainly used for quenching, tempering, annealing, and other heat treatment of bicycle parts, sewing machine parts, standard parts, steel ball bearings, rollers, nails, screws and other small parts. The furnace has the characteristics such as: good uniformity of furnace temperature, simple operation, simple maintenance, low energy consumption and energy saving.



Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg



Technical parameter of the Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg



Rated power 45kw/60Kw
Rated voltage 380V
Number of phases 3 phases
Rated frequency 50Hz
Rated temperature 950℃
Number of temperature control zones 1 zone
Effective drum heating size

Ф400×500

Ф500×650
Equipment dimensions

2450×2300×2150mm

Weight 2960Kg
Heating method high temperature resistance band
Productivity 100kg/h  ,150Kg/h
Temperature control method Intelligent digital display instrument and PID temperature control; with over-temperature alarm
Furnace temperature uniformity ≤±8℃ (constant heat preservation stage)
Furnace surface temperature rise ≤environment+30℃
Temperature control accuracy ≤±2℃
Furnace structure full fiber structure, the roof of the furnace can be lifted to facilitate the loading of the drum
Insulation thickness 380mm
Roller rotation speed stepless frequency conversion adjustment



Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg

Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg
