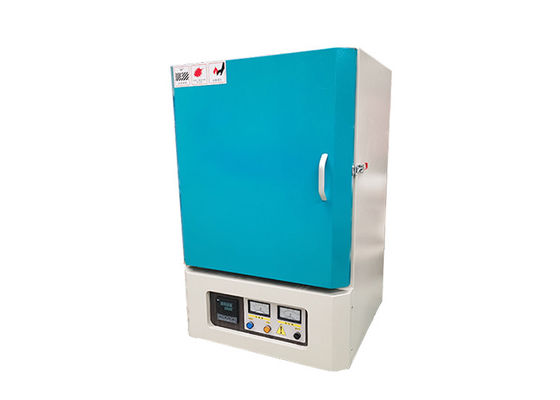

1200C Laboratory Box Muffle Furnace

1200C Laboratory Box Muffle Furnace
1200C Laboratory Box Muffle Furnace 1200C Laboratory Box Muffle Furnace 1200C Laboratory Box Muffle Furnace 1200C Laboratory Box Muffle Furnace 1200C Laboratory Box Muffle Furnace

Large Image :  1200C Laboratory Box Muffle Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9001
Model Number: IRIS-14
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $890-$1885
Packaging Details: Standard Export Wooden Box Package
Delivery Time: 5-8working days
Payment Terms: L/C, T/T
Supply Ability: 349 sets/month
Detailed Product Description
Product Name: Manufacturer Supply Price High Temperature 3-15kw Box Type Resistance Furnace Muffle Furnace Power: 20 Kw
Furnace Chambersize: 50*50*60cm Working Temperature: 1200℃
Voltage: 220V 50hz Heating Element: Silicon Carbide Rod
Furnace Color: Green Open Way: Left
Application: Metal Heating Field: Laboratory, Factory
High Light:

1200C Laboratory Box Muffle Furnace

,

20kw Laboratory Box Muffle Furnace

,

IRIS Muffle Furnace for Laboratory

Manufacturer Supply Price High Temperature 3-15kw Box Type Resistance Furnace Muffle Furnace



Products Description


Mini box muffle furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.

1200C Laboratory Box Muffle Furnace 0

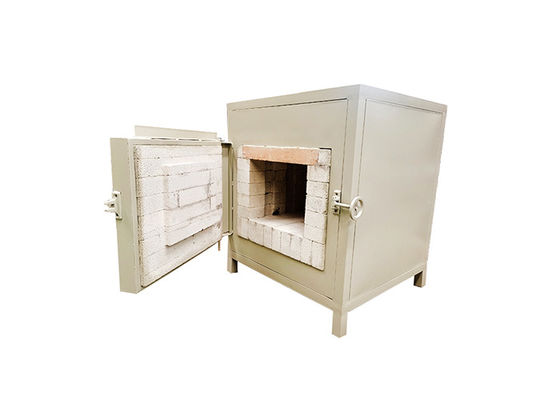

The muffle furnace is made by welding high-quality cold-rolled plates. The hearth is sintered with silicon carbide or high-aluminum materials. The heating element is made of high-temperature resistance wire or silicon-carbon rod, made of lightweight bricks or silicon wool felt as insulation materials, and the surface is made of high-temperature paint.



Product Paramenters


Model Max temperature Voltage Power Chamber Size
IRIS-12-2.5 1200℃ 220V/380V 50HZ 2.5kw 80*120*200 mm
IRIS-12-5 1200℃ 220V/380V 50HZ 5kw 120*200*300 mm
IRIS-12-10 1200℃ 220V/380V 50HZ 10kw 160*250*400 mm
IRIS-12-12 1200℃ 220V/380V 50HZ 12kw 200*300*500 mm
IRIS-14-5 1400℃ 220V/380V 50HZ 5kw 120*200*300 mm
IRIS-14-6 1400℃ 220V/380V 50HZ 6kw 200*200*200 mm
IRIS-14-10 1400℃ 220V/380V 50HZ 10kw 160*200*400 mm
IRIS-14-15 1400℃ 220V/380V 50HZ 15kw 300*300*300 mm
IRIS-17-16 1700℃ 220V/380V 50HZ 16kw 200*300*500 mm



Details Images

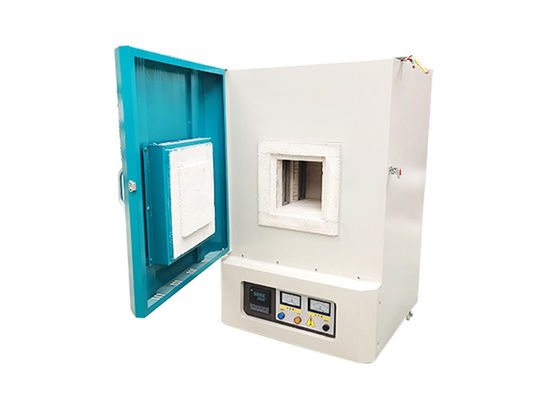

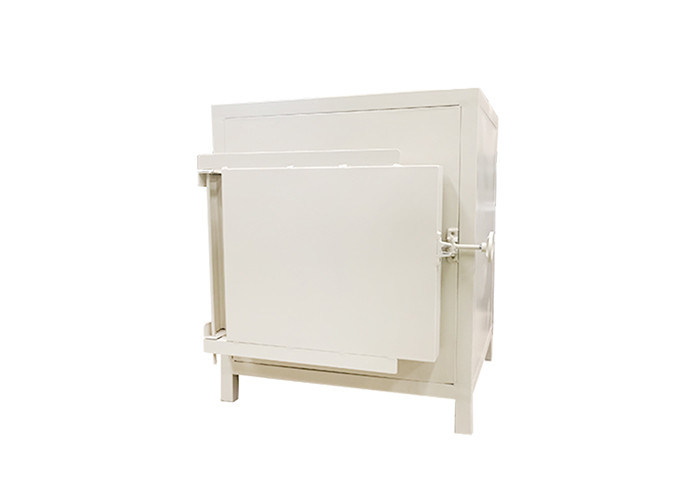

1200C Laboratory Box Muffle Furnace 1

1200C Laboratory Box Muffle Furnace 2

1200C Laboratory Box Muffle Furnace 3

1200C Laboratory Box Muffle Furnace 4

1200C Laboratory Box Muffle Furnace 5

1200C Laboratory Box Muffle Furnace 6

1200C Laboratory Box Muffle Furnace 7





FAQ


Q1: Do you have customization or OEM service?

A1: We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.



Q2: How can you guarantee the production quality?

A2: We have QC department who perform strictly in each producing process including package.



Q3: What is the delivery time?

A3: Normally within 10 working days after receiving the advanced payment or depends on order quantity.



Q4: How long is your furnace warranty time?

A4: One year(expect for thermocouple and heating element), lifetime support



Q5: What payment terms can be support?

A5: T/T, L/C and so on.
