Payment & Shipping Terms:
|Product Name:||Electric Motor Tilting Induction Oven 110kw Medium Frequency Induction Melting 150kg Copper Brass||Melting Material:||Steel|
|Maximum Input Power:||110KW||Output Voltage::||70-520V|
|Input Current::||30-200A||Input Voltage::||3-phase 380V, 50/60HZ|
|Melting Temperature:||1300℃||Melting Time:||50 Mins|

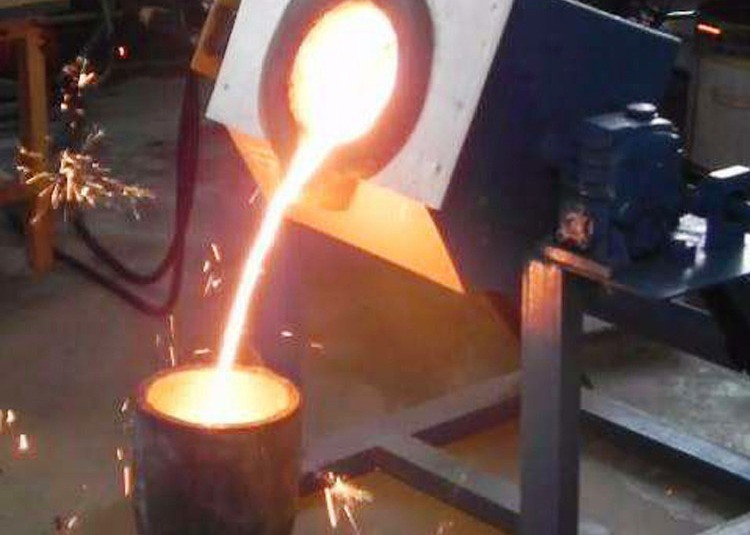

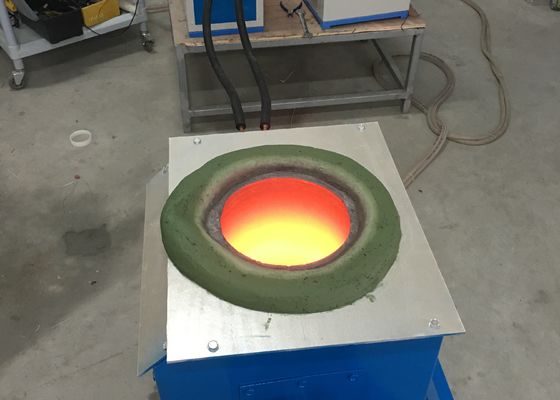

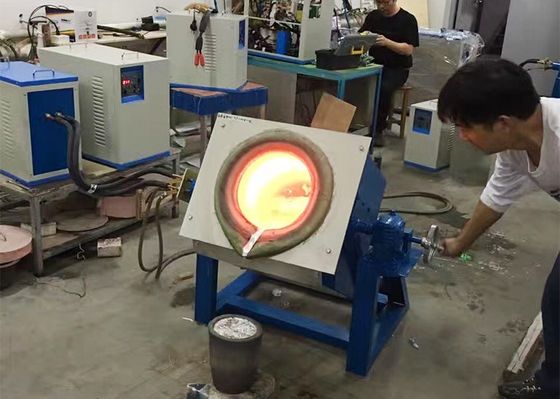

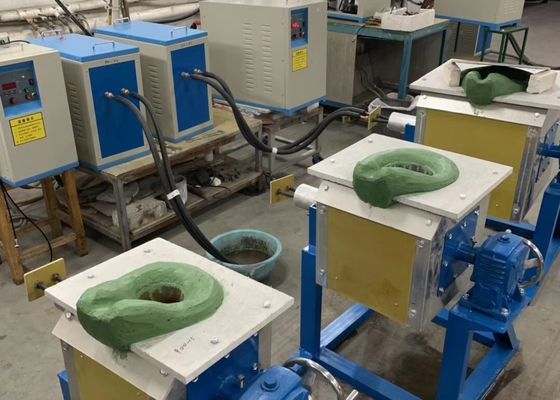

Electric Motor Tilting Induction Oven 110kw Medium Frequency Induction Melting 150kg steel

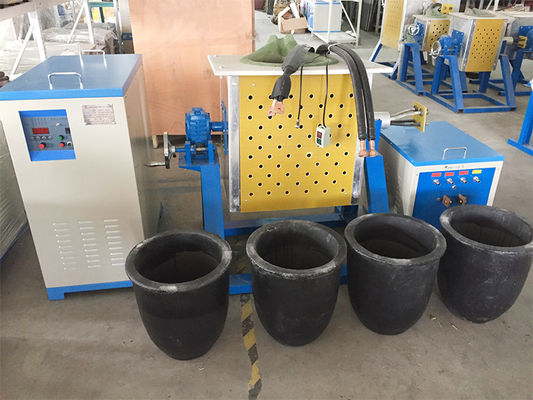

The composing of the 50kg Steel Melting Medium Frequency Furnace:
1. IGBT medium frequency main control cabinet
2. Capacitor cabinet
3. Tilting induction melting furnace
4. Remote controller(foot switch)
Please note that according to the method of tilting, tilting furnace is divided into three kinds: manual tilting furnace, electrical tilting furnace hydraulic tilting furnace.
Electric Motor Tilting Induction Oven 110kw Medium Frequency Induction Melting 50kg Steel
Main features of Electric Motor Tilting Induction Oven 110kw Medium Frequency Induction Melting 50kg Steel
1. M.F. melting machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux oxides to produce high quality casting parts.
3. Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency other factors.
4. Power efficiency is 20% higher than the SCR medium frequency machines;
5. Small light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college researching companies to use.
Main models melting abilities:
