|Product Name:||Box Furnace Vs Muffle Furnace Ceramic Plate For Muffle Furnace||Power:||4 Kw|
|Furnace Chambersize:||15*15*20cm||Working Temperature:||1700℃|
|Voltage:||220V 50hz||Heating Element:||Silicon Carbide Rod|
|Furnace Color:||Green||Open Way:||Left|
|Application:||Metal Heating||Field:||Laboratory, Factory|

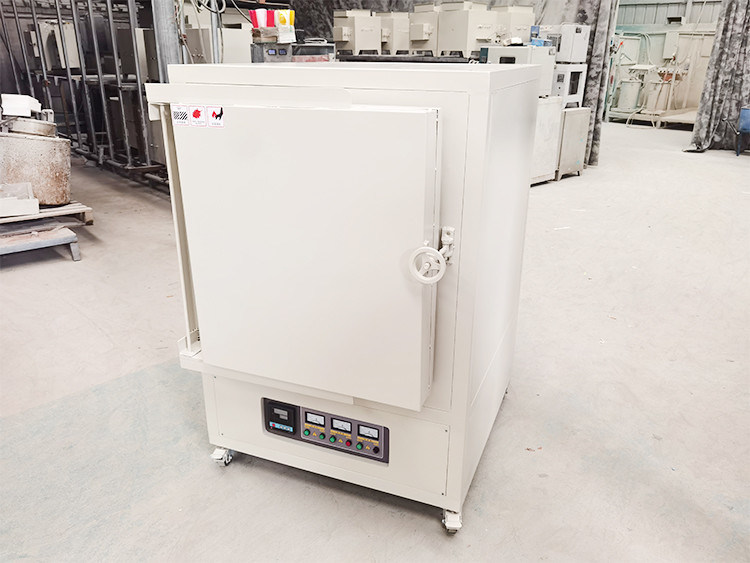

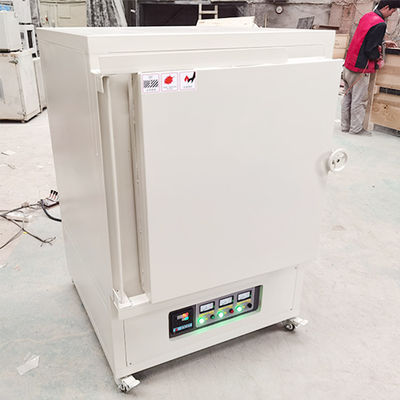

4kw Mini Ceramic Muffle Furnace,
Ceramic Muffle Furnace 1700C,
ISO9001 Muffle Furnace For Laboratory
Mini box muffle furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
The working principle of a lab muffle furnace is to heat the air inside its chamber using the basic fundamentals of thermal convection and thermal radiation.

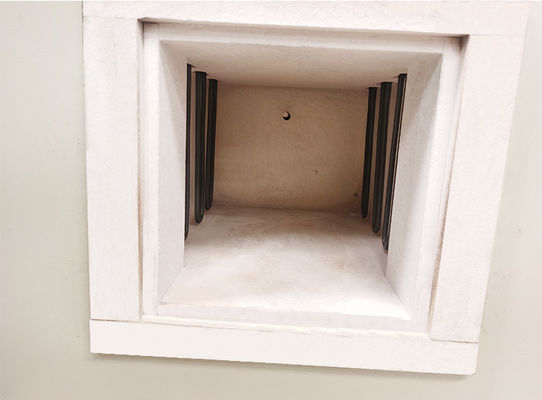

The muffle furnace is made by welding high-quality cold-rolled plates. The hearth is sintered with silicon carbide or high-aluminum materials. The heating element is made of high-temperature resistance wire or silicon-carbon rod, made of lightweight bricks or silicon wool felt as insulation materials, and the surface is made of high-temperature paint.
Muffle furnaces isolate the samples from the fuel and the combustion to eliminate contamination of the samples. They are durable, reliable, and work well for extensive use. Muffle furnaces are ideal for research and development, materials testing and quality control, heat treatment, ceramics, glass, and so much more.
|Model||Max temperature||Voltage||Power||Chamber Size|
|IRIS-12-2.5||1200℃||220V/380V 50HZ||2.5kw||80*120*200 mm|
|IRIS-12-5||1200℃||220V/380V 50HZ||5kw||120*200*300 mm|
|IRIS-12-10||1200℃||220V/380V 50HZ||10kw||160*250*400 mm|
|IRIS-12-12||1200℃||220V/380V 50HZ||12kw||200*300*500 mm|
|IRIS-14-5||1400℃||220V/380V 50HZ||5kw||120*200*300 mm|
|IRIS-14-6||1400℃||220V/380V 50HZ||6kw||200*200*200 mm|
|IRIS-14-10||1400℃||220V/380V 50HZ||10kw||160*200*400 mm|
|IRIS-14-15||1400℃||220V/380V 50HZ||15kw||300*300*300 mm|
|IRIS-17-16||1700℃||220V/380V 50HZ||16kw||200*300*500 mm|
Q1: Do you have customization or OEM service?
A1: We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
Q2: How can you guarantee the production quality?
A2: We have QC department who perform strictly in each producing process including package.
Q3: What is the delivery time?
A3: Normally within 10 working days after receiving the advanced payment or depends on order quantity.
Q4: How long is your furnace warranty time?
A4: One year(expect for thermocouple and heating element), lifetime support
Q5: What payment terms can be support?
A5: T/T, L/C and so on.
