Payment & Shipping Terms:

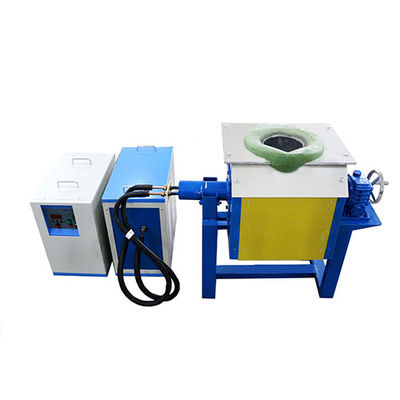

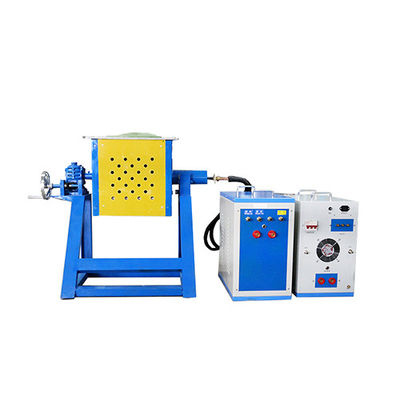

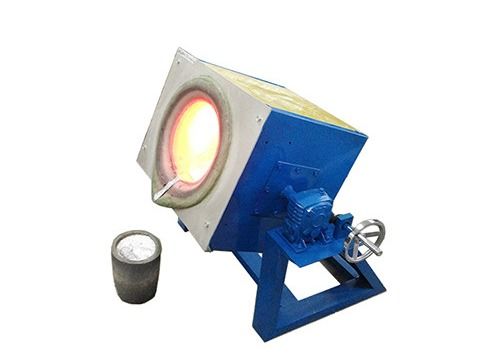

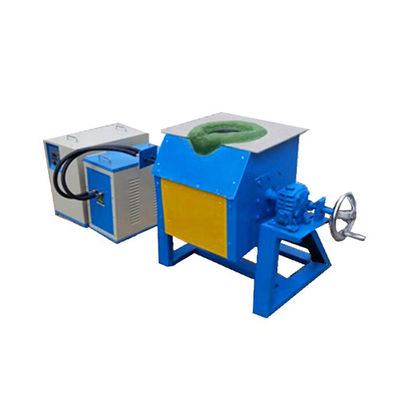

|Product Name:||Induction Billet Heating Furnace Induction Copper Melting Furnace With Induction Furnace Graphite Crucible For Sale||Application:||Melting Copper|
|Heating Element:||Induction Coil||Max Temperature:||1800℃|
|Capacity:||6-20kg||Melting Time:||15-30 Mins|
|Cooling Water Pressure:||0.2MPa||Feature:||Fast And Cost-effective|
1. The medium frequency small melting furnace adopts Siemens IGBT imported power device, which is more integrated and miniaturized, and the effective output power reaches more than 95%.
2. It is convenient to replace furnace bodies with different weights, different materials and different starting methods to meet various smelting requirements; vertical smelting furnaces, hand-operated smelting furnaces, electric smelting furnaces, and smelting furnaces for school laboratories.
3. The ultra-small medium frequency induction heating power supply is adopted, which saves 30% energy compared with the traditional thyristor.
4. Good heat permeability and uniform temperature.
5. The medium frequency magnetic field has a magnetic stirring effect on the molten metal, which is beneficial to keep the composition uniform.
6. The melting time of each furnace is 20-30 minutes (under the furnace heat)
High efficiency, you just need a few minutes to melt a small batch of metal. Energy-savinig, high stability, safe.
24 hours continuous work ability.
All-solid-state IGBT frequency conversion and function adjustment, automatic frequency conversion tracking.
Automatic protection against all sorts of functional deficiency to ensure equipment reliability.
Manually and automatically adjust to improve the heating quality of the workpiece.
Customizable capacity to meet your production needs.

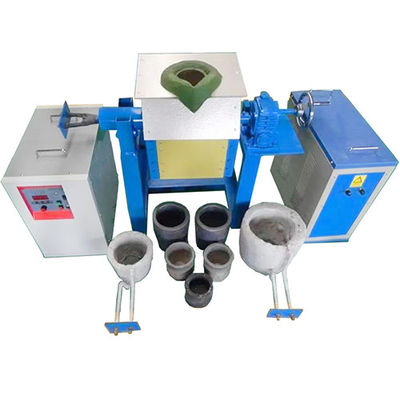

Besides high functionality and high efficiency, our induction copper melting furnace can also be easily operated. The machines can pair with all sorts of crucible to melt different metal, from clay graphite crucible, magnesium oxide crucible, to silicon carbide crucible.
The sizes of our products are customizable, the table below contains the default versions, please contact us for adjustments. We can also provide cooling device, as our clients demands.
|Type||MAX Input Power||Frequency||Input Electric Current||Output Voltage||Input Voltage||Cooling Water Requirement||Load Duration||Crucible Diameter||Iron, Steel, Aluminum||Copper, Silver, Gold|
3 phase 380V,
50 or 60HZ
|≥ 0.2MPA, ≥5L/min||100%||O.D85*165mm||3KG||10KG|
