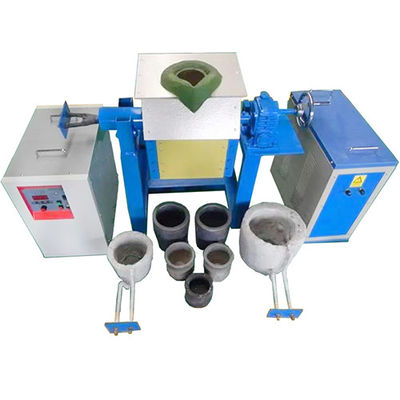

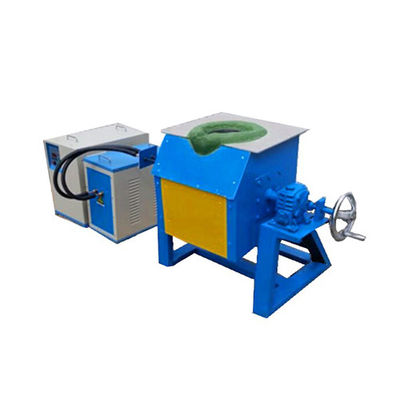

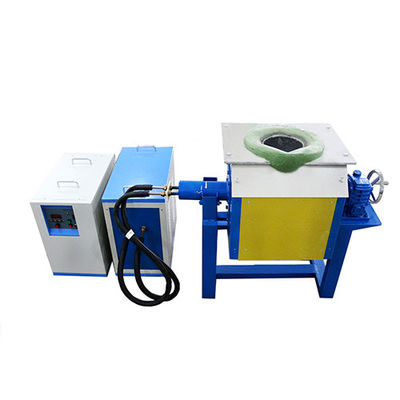

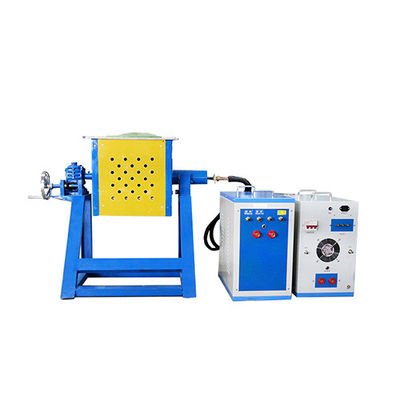

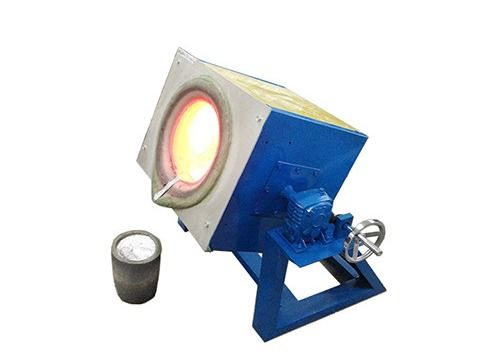

Hot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace

Hot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace
Hot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace Hot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace Hot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace Hot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace Hot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace

Large Image :  Hot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IRIS-45
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 3200$-3400$ / set
Packaging Details: Standard export paper carton or wooden crate
Delivery Time: One month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets a month
Detailed Product Description
Product Name: Induction Metal Melting Furnace Application: Melting Metal
Heating Element: Heating Element Max Temperature: 1800℃
Capacity: 1-200kg Melting Time: 15-60mins
Frequency: 1-20khz Output Voltage: 70-520V
Cooling Water Pressure: 0.2MPa Feature: Fast And Cost-effective

Hot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace



Product Description

The coreless induction melting furnace is mainly used in smelting or melting all kinds of metal. That include iron, steel, aluminum, copper, brass, bronze, silver, gold, etc. It can also be used in the heating treatment of metal. Our electric induction metal melting furnace can be safely applied in all kinds of workplaces and even at home. You can use them at your house, in the exhibition room, in the laboratory, in your factory workshop or in your store.

4

Main Features
1. High efficiency, you just need a few minutes to melt a small batch of metal.

2. Energy-savinig, high stability, safe.

3. 24 hours continuous work ability.
4. All-solid-state IGBT frequency conversion and function adjustment, automatic frequency conversion tracking.
5. Automatic protection against all sorts of functional deficiency to ensure equipment reliability.
6. Manually and automatically adjust to improve the heating quality of the workpiece.

7. Customizable capacity to meet your production needs.

_20220412113730

Besides high functionality and high efficiency, our 10 kg induction furnace can also be easily operated. The machines can pair with all sorts of crucible to melt different metal, from clay graphite crucible, magnesium oxide crucible, to silicon carbide crucible.

02



Product Parameters

The sizes of our products are customizable, the table below contains the default versions, please contact us for adjustments. We can also provide cooling device, as our clients demands.

Type MAX Input Power Frequency Input Electric Current Output Voltage Input Voltage Cooling Water Requirement Load Duration Crucible Diameter Iron, Steel, Aluminum Copper, Silver, Gold
IRIS-MF15 15KW 1-20KHZ 5-25A

70-520V

3 phase 380V,

50 or 60HZ

≥ 0.2MPA, ≥5L/min 100% O.D85*165mm 3KG 10KG
IRIS-MF25 25KW 5-35A O.D118*180mm 5KG 20KG
IRIS-MF35 35KW 5-55A O.D130*225mm 10KG 30KG
IRIS-MF45 45KW 5-70A O.D150*300mm 18KG 50KG
IRIS-MF70 70KW 105A O.D175*325mm 25KG 100KG
IRIS-MF90 90KW 135A O.D195*390mm 40KG 120KG
IRIS-MF110 110KW 170A O.D210*400mm 50KG 150KG
IRIS-MF160 160KW 240A O.D265*465mm 100KG 250KG



Certifications

,CE _00.pngHot sale coreless induction melting furnace 10 kg induction furnace for brass induction melting furnace 4HTB1eCKkLpXXXXc1XFXXq6xXFXXX6

Company Information

Zhengzhou IRIS Equipment Company was founded in 1989, located in the Zhengzhou city, Henan Province, China. We have two standardized modern plants, one laboratory building, construction area is of 8,000 square meters. There are a large number of professional and technical research engineers, including 30% technical personnel engineer, and 12% senior engineering staff.

1



Zhengzhou IRIS Equipment Company products have been exported around the world, such as Russia, Australia, Canada, Singapore and Philippines, and other Southeast Asian countries, like Iran, United Arab Emirates, and other Middle East countries as well as Zimbabwe, and many other countries._20181214144426.png



Packaging & Shipping

We assure you convenient and reliable freight services. Our high quality products will be sent to you as quickly as a week by air, or a month by sea.

farff



We will run a series strict tests before sendinig out our goods to you, and will pack them in the standard paper or wooden crates.

42

QQ20160712145941



Our Services

With more than 27 years experience in this industry, Zhengzhou IRIS is capable of providing you with excellent and worldwide service.



client

We dedicate to providing the best service to our clients. Your comments and supports are the best inspiration to us.

Feedback



FAQ

1. Which countries your products are exported to?

Our products are sold all over the world and with related certifications.



2. Is your goods has ISO9001 or CE certificate ?

Yes, all our goods has ISO and CE certificates. All machines are high quality goods.



3. Which export port do you use?

Commonly we use Qingdao port. It can also be appointed as you like.



4. How to use your machines?

We have guide instructions in English, and we will teach you till you manage it well.



5. How about the warranty?

All our products have one year quality warranty. During the warranty time, the spare parts replacement is free. And we provide life long time technical support, spare parts and other assistance.
