Laboratory Muffle Box Furnace 220V 4 KW Resistance Wire

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

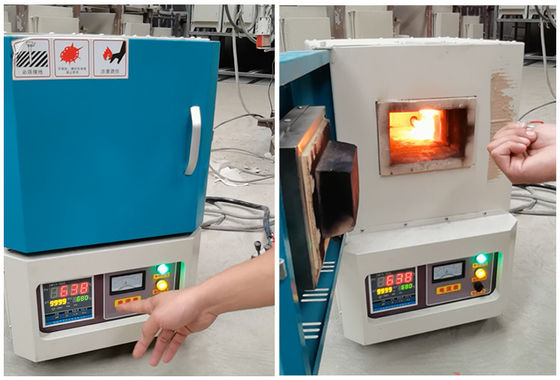

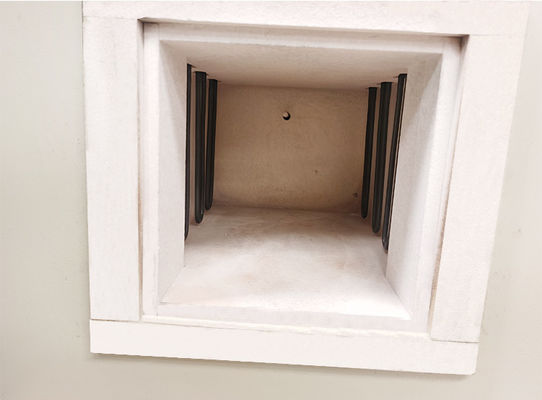

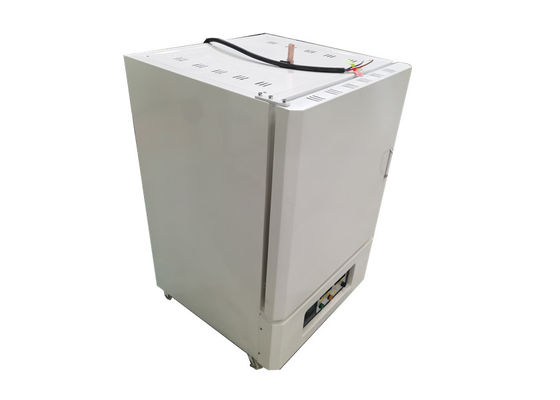

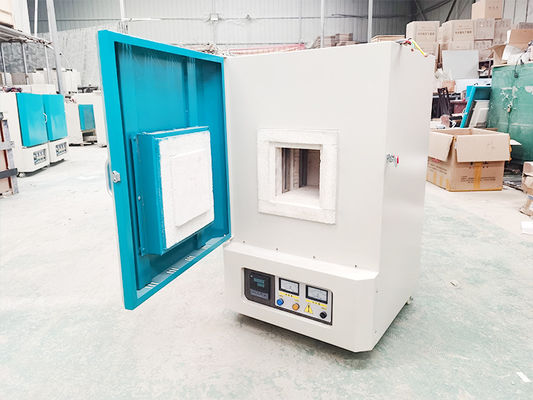

Laboratory Muffle Box Furnace 220V 4 KW Resistance Wire

Laboratory Muffle Box Furnace 220V 4 KW Resistance Wire
Laboratory Muffle Box Furnace 220V 4 KW Resistance Wire Laboratory Muffle Box Furnace 220V 4 KW Resistance Wire Laboratory Muffle Box Furnace 220V 4 KW Resistance Wire Laboratory Muffle Box Furnace 220V 4 KW Resistance Wire Laboratory Muffle Box Furnace 220V 4 KW Resistance Wire

Large Image :  Laboratory Muffle Box Furnace 220V 4 KW Resistance Wire

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3000.00-5000.00
Delivery Time: 30working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000sets
Detailed Product Description
Product Name: Laboratory Muffle Furnace And Box Furnace Laboratory Muffle Furnace Buy Online Lab Muffle Furnace Cost Application: Metal Heat Treatment
Max Temperature: 1000 Degree Furnace Type: Box Furnace
Fuel: Electricity Heating Element: Resistance Wire
Voltage: 220V Warranty: 1 Year
Ater Sale Service: Online Technical Support
High Light:

Laboratory Muffle Box Furnace

,

resistance wire Muffle Box Furnace

,

4 KW Muffle Box Furnace

Laboratory Muffle Furnace And Box Furnace Laboratory Muffle Furnace Buy Online Lab Muffle Furnace Cost

When the muffle furnace is used for the first time or used again after long-term non-use, it must be dried in the oven: open the furnace door for 2-3 hours at 20 ~ 200 °C, and close the door for 2-3 hours at 200 ~ 600 °C.
Before the experiment, the thermostat should avoid vibration, and it should not be placed too close to the electric furnace to prevent overheating and prevent the electronic components from working properly. When moving the thermostat, the power switch should be set to "off".
Before use, adjust the thermostat to the required working temperature, turn on the start code to energize the muffle furnace, at this time, the ammeter has a reading, and the measured temperature value of the temperature control meter gradually rises, indicating that the muffle furnace and the thermostat are in normal operation.
The temperature control adopts PID function intelligent instrument, and the thermocouple adopts high-precision thermocouple, which has higher temperature control accuracy and provides accurate data for sintering or testing. The heating elements are all high-quality products and have a longer service life.

Parameter



Model Chamber size  Voltage(V) Power(KW) Max temperature(C) Heating element  Furnace structure
SX2-2.5-10 80*120*200 220 2.5 1000 resisitance wire one/split
SX2-4-10 120*200*300 220 4 1000 resisitance wire one/split
SX2-8-10 160*250*400 380 8 1000 resisitance wire one/split
SX2-30-13 400*400*600 380 30 1350 silion carbide rod one/split
SX2-45-13 600*600*600 380 45 1350 silion carbide rod one/split
SX2-65-13 700*700*800 380 65 1350 silicon carbide rod one/split
SX2-8-16 120*150*300 380 8 1600 silicon molybdenum rod one/split
SX2-12-16 160*200*400 380 12 1600 silicon molybdenum rod one/split
SX2-17-16 200*300*500 380 17 1600 silicon molybdenum rod one/split



Company introduction

Zhengzhou IRIS Import & Export Co.,Ltd is specialized in the production of complete sets of high frequency,medium frequency induction melting furnace and heating furnace. Our company is strong in technology research and development center, has 27 years of industry experience.With reliable quality, quality service has won a good reputatin,and exported to around the world,such as Russia, Australia, Canada,Singapore and Philippines and other Southeast Asian countries,Iran,UAE and other Middle East countries as well as Zimbabwe, Zambia and other African countries.

Packaging & Shipping

Packing: Export packing standard( New damp proof air bubble film package for the product high quality paper box fill in to protect the goods.) wooden case of small induction furnace

Delivery: By sea or others , it's your choice, in 15 days after we receive the deposit
