|Product Name:||Induction Metal Melting Furnace||Application:||Melting And Heating Metal|
|Heating Element:||Induction Copper Coil||Max Temperature:||1600℃|
|Cooling Water Pressure:||0.2MPa||Feature:||Fast And Cost-effective|

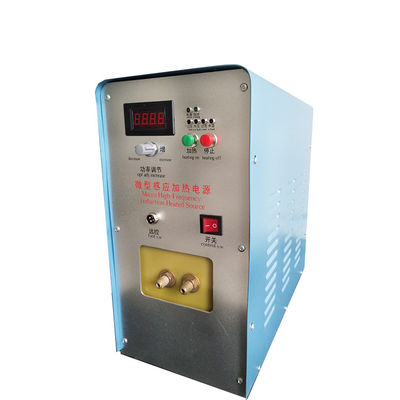

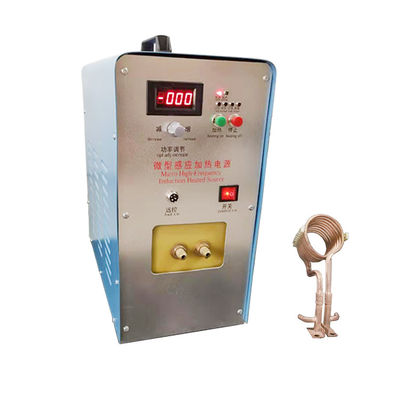

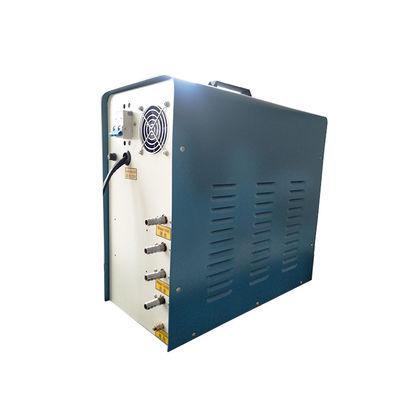

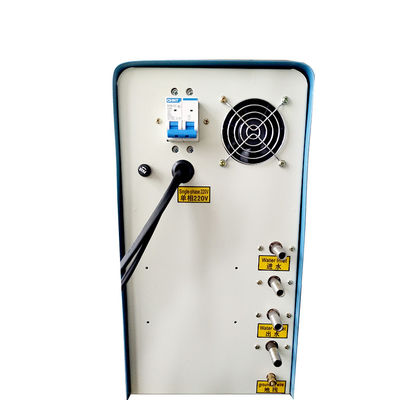

The cabinet metal scrap melting induc is mainly used in smelting or melting all kinds of metal. That include iron, steel, aluminum, copper, brass, bronze, silver, gold, etc. It can also be used in the heating treatment of metal. Our electric induction metal melting furnace can be safely applied in all kinds of workplaces and even at home. You can use them at your house, in the exhibition room, in the laboratory, in your factory workshop or in your store.
1. High efficiency, you just need a few minutes to melt a small batch of metal.
2. Energy-savinig, high stability, safe.
3. 24 hours continuous work ability.
4. All-solid-state IGBT frequency conversion and function adjustment, automatic frequency conversion tracking.
5. Automatic protection against all sorts of functional deficiency to ensure equipment reliability.
6. Manually and automatically adjust to improve the heating quality of the workpiece.
7. Customizable capacity to meet your production needs.
Besides high functionality and high efficiency, our melting metal heater can also be easily operated. The machines can pair with all sorts of crucible to melt different metal, from clay graphite crucible, magnesium oxide crucible, to silicon carbide crucible.
The sizes of our products are customizable, the table below contains the default versions, please contact us for adjustments. We can also provide cooling device, as our clients demands.
|Type||Max Input Power||Frequency||Input Electric Current||Input Voltage||Output Voltage||Cooling Water Requirements|
|≥ 0.2MPA, ≥5L/min|
|Type||Crucible Diameter||Aluminum / Stainless Steel / Iron||Copper / Brass|
|#15||O.D 85x165 mm||3 kg||10 kg|
|#25||O.D 118x180 mm||5 kg||20 kg|
|#35||O.D 130x225 mm||10 kg||30 kg|
|#45||O.D 150x300 mm||18 kg||50 kg|
|#70||O.D 175x325 mm||25 kg||100 kg|
|#90||O.D 195x390 mm||40 kg||120 kg|
|#110||O.D 210x400 mm||50 kg||150 kg|
|#160||O.D 265x465 mm||100 kg||250 kg|
Zhengzhou IRIS Equipment Company was founded in 1989, located in Zhengzhou city, Henan Province, China. We have two standardized modern plants, one laboratory building, construction area is of 8,000 square meters. There are a large number of professional and technical research engineers, including 30% technical personnel engineer, and 12% senior engineering staff.
Zhengzhou IRIS Equipment Company products have been exported around the world, such as Russia, Australia, Canada, Singapore and Philippines, and other Southeast Asian countries, like Iran, United Arab Emirates, and other Middle East countries as well as Zimbabwe, and many other countries.
We assure you convenient and reliable freight services. Our high quality products will be sent to you as quickly as a week by air, or a month by sea.
We will run a series strict tests before sending out our goods to you, and will pack them in the standard paper or wooden crates.
With more than 27 years experience in this industry, Zhengzhou IRIS is capable of providing you with excellent and worldwide service.
We dedicate to providing the best service to our clients. Your comments and supports are the best inspiration to us.
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2. Is your goods has ISO9001 or CE certificate ?
Yes, all our goods has ISO and CE certificates. All machines are high quality goods.
3. Which export port do you use?
Commonly we use Qingdao port. It can also be appointed as you like.
4. How to use your machines?
We have guide instructions in English, and we will teach you till you manage it well.
5. How about the warranty?
All our products have one year quality warranty. During the warranty time, the spare parts replacement is free. And we provide life long time technical support, spare parts and other assistance.
