30-80khz Gold Melting Machine 1600C Copper Precious Metal Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

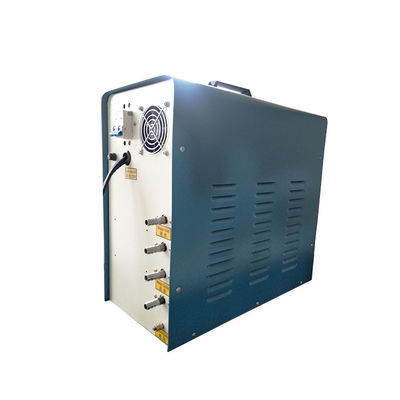

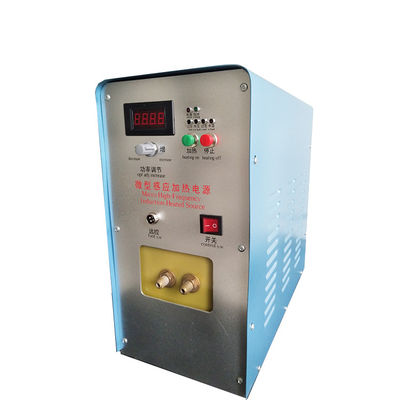

30-80khz Gold Melting Machine 1600C Copper Precious Metal Furnace

30-80khz Gold Melting Machine 1600C Copper Precious Metal Furnace
30-80khz Gold Melting Machine 1600C Copper Precious Metal Furnace 30-80khz Gold Melting Machine 1600C Copper Precious Metal Furnace 30-80khz Gold Melting Machine 1600C Copper Precious Metal Furnace 30-80khz Gold Melting Machine 1600C Copper Precious Metal Furnace 30-80khz Gold Melting Machine 1600C Copper Precious Metal Furnace

Large Image :  30-80khz Gold Melting Machine 1600C Copper Precious Metal Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IRIS-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 900$-1100$ / set
Packaging Details: Standard export paper carton or wooden crate
Delivery Time: One month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets a month
Detailed Product Description
Product Name: Induction Metal Melting Furnace Application: Melting And Heating Metal
Heating Element: Induction Copper Coil Max Temperature: 1600℃
Capacity: 1-200kg Melting Time: 15-60mins
Frequency: 30-80khz Output Voltage: 5-36V
Cooling Water Pressure: 0.2MPa Feature: Fast And Cost-effective
High Light:

80khz Gold Melting Machine


30khz Gold Melting Machine


1600C Copper Precious Metal Furnace

Hot sale heating coils furnaces high quality induction heating furnace for precious metals for furnace heating copper


Product Description

The heating coils furnaces is mainly used in smelting or melting all kinds of metal. That include iron, steel, aluminum, copper, brass, bronze, silver, gold, etc. It can also be used in the heating treatment of metal. Our electric induction metal melting furnace can be safely applied in all kinds of workplaces and even at home. You can use them at your house, in the exhibition room, in the laboratory, in your factory workshop or in your store.


Main Features
1. High efficiency, you just need a few minutes to melt a small batch of metal.

2. Energy-savinig, high stability, safe.

3. 24 hours continuous work ability.
4. All-solid-state IGBT frequency conversion and function adjustment, automatic frequency conversion tracking.
5. Automatic protection against all sorts of functional deficiency to ensure equipment reliability.
6. Manually and automatically adjust to improve the heating quality of the workpiece.

7. Customizable capacity to meet your production needs.

1ton induction melting furnace 3

Besides high functionality and high efficiency, our induction heating furnace for precius metales can also be easily operated. The machines can pair with all sorts of crucible to melt different metal, from clay graphite crucible, magnesium oxide crucible, to silicon carbide crucible.



Product Parameters

The sizes of our products are customizable, the table below contains the default versions, please contact us for adjustments. We can also provide cooling device, as our clients demands.

Type Max Input Power Frequency Input Electric Current Input Voltage Output Voltage Cooling Water Requirements
IRIS-HF15 15kw 30-80KHZ 200-600A 2x220V(50-60hz) 5-36V 0.2MPA, 1-3L/min
IRIS-HF25 25kw 200-1000A 3x380V(50-60hz) 0.2MPA, 2-5L/min
IRIS-HF45 45kw 68A

3 phase


≥ 0.2MPA, ≥5L/min


Crucible Parameters

Type Crucible Diameter Aluminum / Stainless Steel / Iron Copper / Brass
#15 O.D 85x165 mm 3 kg 10 kg
#25 O.D 118x180 mm 5 kg 20 kg
#35 O.D 130x225 mm 10 kg 30 kg
#45 O.D 150x300 mm 18 kg 50 kg
#70 O.D 175x325 mm 25 kg 100 kg
#90 O.D 195x390 mm 40 kg 120 kg
#110 O.D 210x400 mm 50 kg 150 kg
#160 O.D 265x465 mm 100 kg 250 kg



Company Information

Zhengzhou IRIS Equipment Company was founded in 1989, located in Zhengzhou city, Henan Province, China. We have two standardized modern plants, one laboratory building, construction area is of 8,000 square meters. There are a large number of professional and technical research engineers, including 30% technical personnel engineer, and 12% senior engineering staff.



Zhengzhou IRIS Equipment Company products have been exported around the world, such as Russia, Australia, Canada, Singapore and Philippines, and other Southeast Asian countries, like Iran, United Arab Emirates, and other Middle East countries as well as Zimbabwe, and many other countries._20181214144426.png


Packaging & Shipping

We assure you convenient and reliable freight services. Our high quality products will be sent to you as quickly as a week by air, or a month by sea.



We will run a series strict tests before sending out our goods to you, and will pack them in the standard paper or wooden crates.




Our Services

With more than 27 years experience in this industry, Zhengzhou IRIS is capable of providing you with excellent and worldwide service.



We dedicate to providing the best service to our clients. Your comments and supports are the best inspiration to us.




1. Which countries your products are exported to?

Our products are sold all over the world and with related certifications.


2. Is your goods has ISO9001 or CE certificate ?

Yes, all our goods has ISO and CE certificates. All machines are high quality goods.


3. Which export port do you use?

Commonly we use Qingdao port. It can also be appointed as you like.


4. How to use your machines?

We have guide instructions in English, and we will teach you till you manage it well.


5. How about the warranty?

All our products have one year quality warranty. During the warranty time, the spare parts replacement is free. And we provide life long time technical support, spare parts and other assistance.
