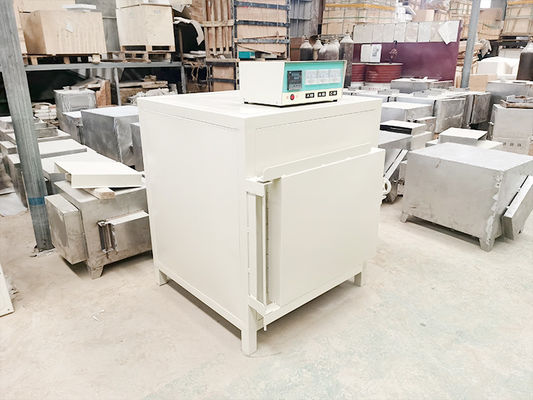

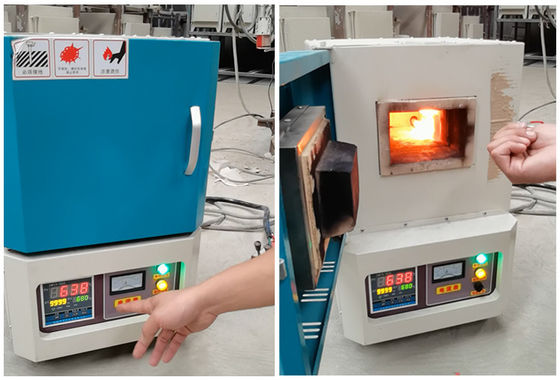

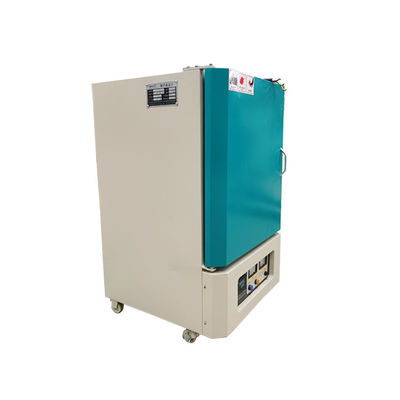

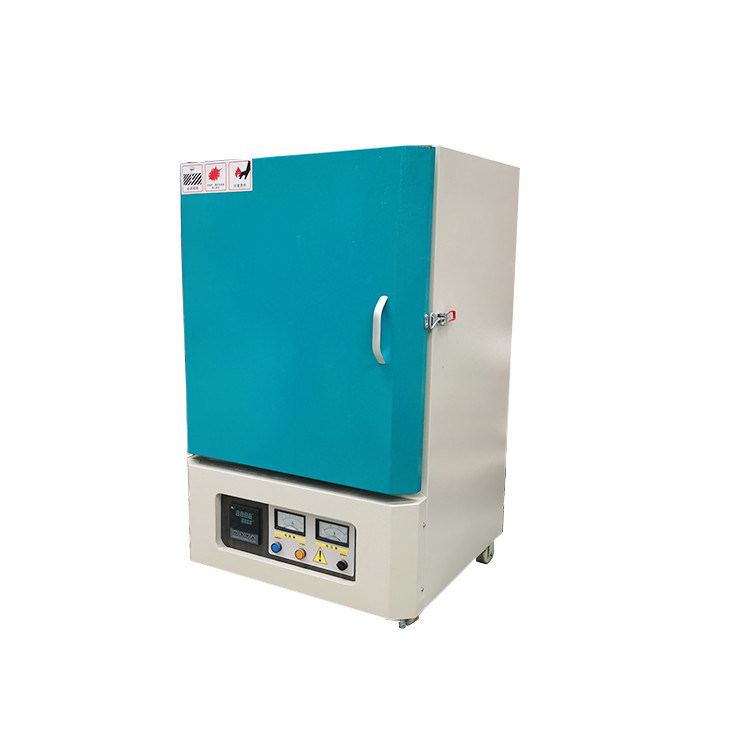

Heat Tempering Box Furnace For Steel 380V Resistance Wire

Heat Tempering Box Furnace For Steel 380V Resistance Wire
Heat Tempering Box Furnace For Steel 380V Resistance Wire Heat Tempering Box Furnace For Steel 380V Resistance Wire Heat Tempering Box Furnace For Steel 380V Resistance Wire Heat Tempering Box Furnace For Steel 380V Resistance Wire Heat Tempering Box Furnace For Steel 380V Resistance Wire

Large Image :  Heat Tempering Box Furnace For Steel 380V Resistance Wire

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3000.00-5000.00
Delivery Time: 30working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000sets
Detailed Product Description
Product Name: Tempering Furnace For Sale Tempering Furnace For Steel Heat Tempering Furnace Application: Metal Heat Treatment
Max Temperature: 1000 Degree Furnace Type: Box Furnace
Fuel: Electricity Heating Element: Resistance Wire
Voltage: 220V Warranty: 1 Year
Ater Sale Service: Online Technical Support
High Light:

Tempering Furnace For Steel

,

380V Tempering Furnace

,

Heat Tempering Furnace

Tempering Furnace For Sale Tempering Furnace For Steel Heat Tempering Furnace

Muffle furnaces are divided according to heating elements: electric furnace wire muffle furnace, silicon carbon rod muffle furnace, silicon molybdenum rod muffle furnace.Silicon carbon rod is a rod-shaped and tubular non-metal high-temperature electric heating element made of high-purity green hexagonal silicon carbide as the main raw material, processed into a billet according to a certain material ratio, and recrystallized and sintered at a high temperature of 2200 ° C. The normal use temperature in oxidizing atmosphere can reach 1450℃, and the continuous use can reach 2000 hours.The temperature control adopts PID function intelligent instrument, and the thermocouple adopts high-precision thermocouple, which has higher temperature control accuracy and provides accurate data for sintering or testing. The heating elements are all high-quality products and have a longer service life.

Parameter



Model Chamber size  Voltage(V) Power(KW) Max temperature(C) Heating element  Furnace structure
SX2-2.5-10 80*120*200 220 2.5 1000 resisitance wire one/split
SX2-4-10 120*200*300 220 4 1000 resisitance wire one/split
SX2-8-10 160*250*400 380 8 1000 resisitance wire one/split
SX2-30-13 400*400*600 380 30 1350 silion carbide rod one/split
SX2-45-13 600*600*600 380 45 1350 silion carbide rod one/split
SX2-65-13 700*700*800 380 65 1350 silicon carbide rod one/split
SX2-8-16 120*150*300 380 8 1600 silicon molybdenum rod one/split
SX2-12-16 160*200*400 380 12 1600 silicon molybdenum rod one/split
SX2-17-16 200*300*500 380 17 1600 silicon molybdenum rod one/split



Company introduction

Zhengzhou IRIS Import & Export Co.,Ltd is specialized in the production of complete sets of high frequency,medium frequency induction melting furnace and heating furnace. Our company is strong in technology research and development center, has 27 years of industry experience.With reliable quality, quality service has won a good reputatin,and exported to around the world,such as Russia, Australia, Canada,Singapore and Philippines and other Southeast Asian countries,Iran,UAE and other Middle East countries as well as Zimbabwe, Zambia and other African countries.

Packaging & Shipping

Packing: Export packing standard( New damp proof air bubble film package for the product high quality paper box fill in to protect the goods.) wooden case of small induction furnace

Delivery: By sea or others , it's your choice, in 15 days after we receive the deposit
