Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Temperature Laboratory Furnace | Power: | 6 Kw |
|---|---|---|---|
| Furnace Chambersize: | 30*30*25cm | Working Temperature: | 1400℃ |
| Voltage: | 220V 50hz | Heating Element: | Silicon Carbide Rod |
| Furnace Color: | Blue | Open Way: | Left |
| Application: | Metal Heating | Field: | Laboratory, Factory |
Products Description
1400 degrees laboratory kiln lab thermal furnace high temperature laboratory furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.

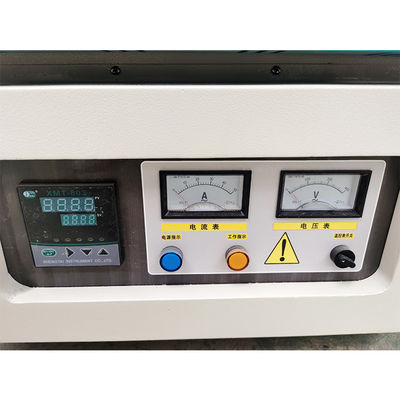

PID function intelligent instrument is used for temperature control, and high-precision thermocouple is used for thermocouple. The temperature control precision is higher, which provides accurate data for sintering or test. The heating elements are high-quality products with longer service life. The thermal insulation adopts high-performance thermal insulation fiber, which has good heat resistance and impact. This series of resistance furnaces do not need special installation, and can be placed on the flat indoor ground or workbench (rack). However, the supporting temperature controller should avoid vibration, and the location should not be too close to the electric furnace to prevent overheating from affecting the normal operation of the control part.
Product Paramenters
| Model | Max temperature | Voltage | Power | Chamber Size |
| IRIS-12-2.5 | 1200℃ | 220V/380V 50HZ | 2.5kw | 80*120*200 mm |
| IRIS-12-5 | 1200℃ | 220V/380V 50HZ | 5kw | 120*200*300 mm |
| IRIS-12-10 | 1200℃ | 220V/380V 50HZ | 10kw | 160*250*400 mm |
| IRIS-12-12 | 1200℃ | 220V/380V 50HZ | 12kw | 200*300*500 mm |
| IRIS-14-5 | 1400℃ | 220V/380V 50HZ | 5kw | 120*200*300 mm |
| IRIS-14-6 | 1400℃ | 220V/380V 50HZ | 6kw | 200*200*200 mm |
| IRIS-14-10 | 1400℃ | 220V/380V 50HZ | 10kw | 160*200*400 mm |
| IRIS-14-15 | 1400℃ | 220V/380V 50HZ | 15kw | 300*300*300 mm |
| IRIS-17-16 | 1700℃ | 220V/380V 50HZ | 16kw | 200*300*500 mm |

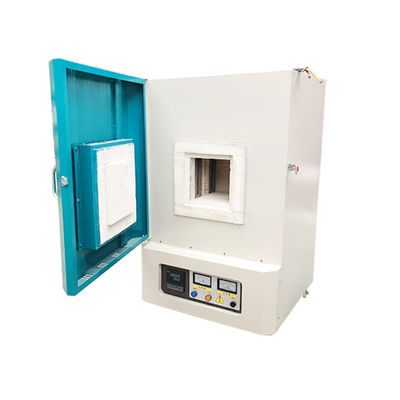

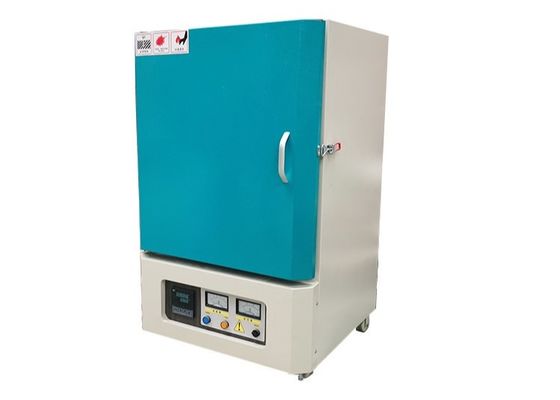

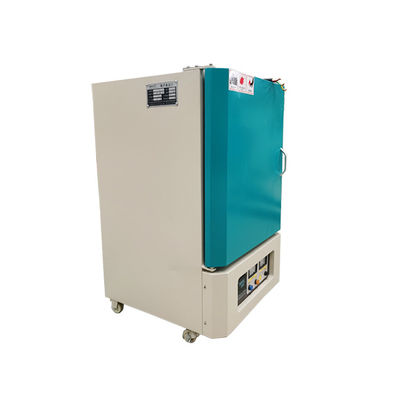

Details Images

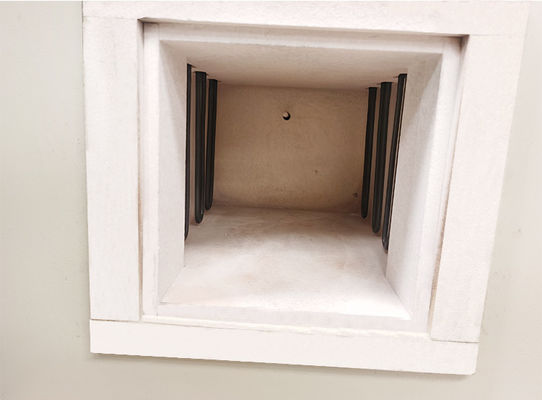

The furnace shell of 1400 degrees laboratory kiln lab thermal furnace high temperature laboratory furnace is welded by Pu steel plate, and the exterior is coated with high-quality high-temperature paint. It is welded by folding. TheLaboratory Box furnace lining is composed of advanced high-purity ceramic fiber material, which has good thermal insulation effect and small heat loss. The ceramic fiber board and ceramic fiber are filled between the furnace lining and the furnace shell, which reduces the temperature of the furnace surface and reduces the weight of the furnace body. The heating element adopts high-quality silicon-molybdenum rods and the maximum temperature can reach 1700 degrees. The silicon-molybdenum rods are evenly arranged on the left and right parts of the furnace, so that the temperature in the furnace is more uniform and the heating speed is fast. It is 1/3 of the original muffle furnace and the original power is also large. reduced to achieve the effect of energy saving. The temperature measurement adopts B-type high temperature resistant special customized thermocouple, which is inserted from the back of the electric furnace and fixed by the fixed seat. The furnace door is connected and fixed on the furnace shell box by hinges, and the furnace door is made of high-quality monolithic ceramic materials with good heat insulation effect.
