Product Details:
Payment & Shipping Terms:
|
| Product Name: | Small Capacity 20kg 30kg 50kg Aluminum Copper Steel Melting Furnace With Manual Tilting | Model: | 35KW |
|---|---|---|---|
| Maximum Input Power: | 35KW | Oscillation Frequency: | 1-20KHZ |
| Input Current:: | 5-70A | Output Voltage:: | 70-520V |
| Input Voltage:: | 3 Phase 380V 50/60HZ | Cooling Water Requirements:: | ≥ 0.2Mpa, ≥ 5L/min |
| Melting Metal: | Aluminum | Melting Capacity: | 10kg |
| High Light: | Aluminum Copper Steel Melting Furnace,20kg Aluminum Melting Furnace,Aluminum Melting Furnace With Manual Tilting |
||
Small Capacity 20kg 30kg 50kg Aluminum Copper Steel Melting Furnace With Manual Tilting
Specifications
Technical Parameters of Small Capacity 10kg 20kg 30kg 40kg 50kg Scrap Aluminium Furnace Medium Frequency Induction Heating:
| Melting furnace model | Steel and stainless steel | Gold, copper,silver | aluminum |
| 30kw | 2kg | 10kg | 3kg |
| 40kw | 5kg | 20kg | 6kg |
| 50kw | 10kg | 30kg | 10kg |
| 60kw | 18kg | 50kg | 20kg |
| 80kw | 25kg | 100kg | 30kg |
| 120kw | 50kg | 150kg | 50kg |
| 160kw | 100kg | 250kg | 100kg |

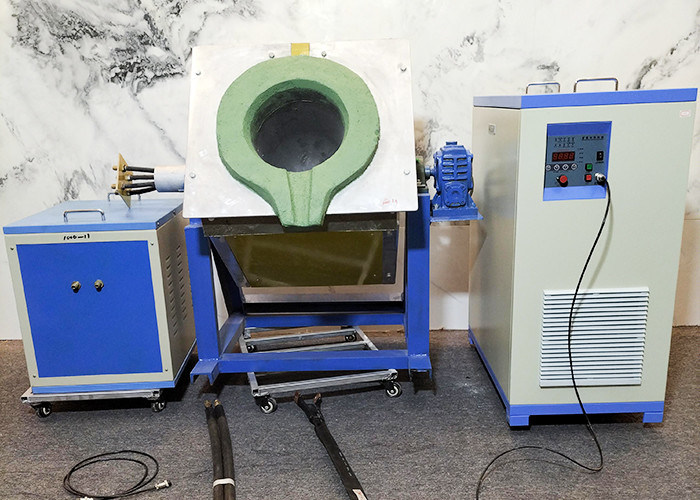

The item include the 1 pc power supply cabinet, 1 pc capacitor cabinet, 1 pc furnace body.
We Guarantee:
1. Standard export wooden box packaging.
2. Foam and plastic are used for shockproof and waterproof. Steel belt and rivets are used to fasten the wooden case.
3. The bottom pallet can bear 3 times weight than goods.
4. Shipping the goods within 5 working days after received the payment
.
