Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pit Carburizing Furnace Quenching Furnace | Power: | 65KW |
|---|---|---|---|
| Capacity: | 400kg | Effective Size: | Ф700mm*1000mm |
| Max Temperature: | 750C | Temperature Deviation: | ±2℃ |
| Customization: | Support | OEM: | Acceptable |
| Warranty: | 1 Year | Temperature Control Method: | Intelligent Instrument PID Control |
| High Light: | Hardening Quenching Furnace,PID Control Quenching Furnace,Refractory Fiber Pit Carburizing Furnace |
||

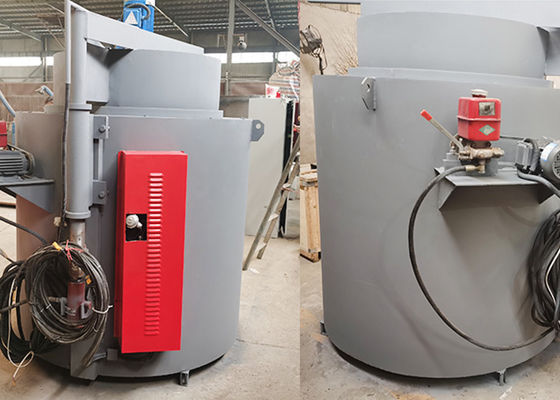

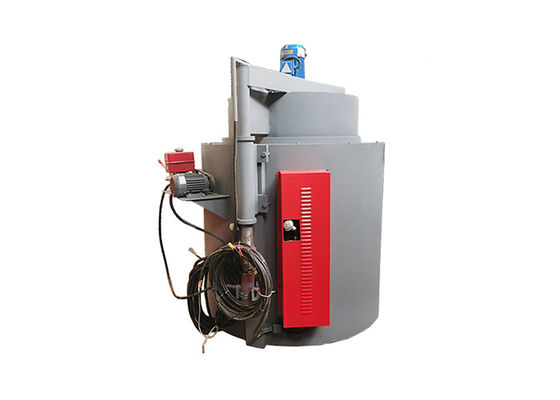

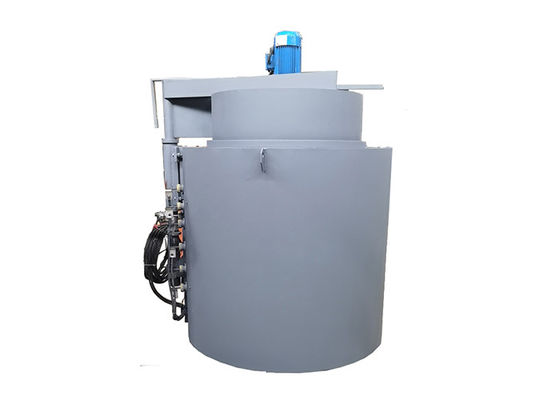

Refractory Fiber Pit Carburizing Furnace Quenching Furnace For Hardening
Refractory Fiber Pit Carburizing Furnace Quenching Furnace For Hardening Descraption
The effect of carburizing is similar to that of quenching, both to increase the hardness of the workpiece. It is mainly used to increase the carbon content of the workpiece by dripping kerosene, and it is mainly used for steel parts such as gears. The carburizing furnace can infiltrate about 0.6-0.8mm in 4 hours. The main advantage is that the carburizing can be better sealed, and the effect is remarkable. (The horizontal carburizing furnace is the same as the pit carburizing furnace, but the cost is high, and it is suitable for long workpieces to be placed flat for heat treatment)
1.Refractory Fiber Pit Carburizing Furnace Quenching Furnace For Hardening Structure
2.Refractory Fiber Pit Carburizing Furnace Quenching Furnace For Hardening Advantage
3. Refractory Fiber Pit Carburizing Furnace Quenching Furnace For Hardening Technical Parameter
| Model | IRIS-JQ65 |
| Electric furnace power | 65kw |
| Input voltage | 480v 60 HZ |
| Effective size | Ф700mm*1000mm |
| Maximum temperature | 750℃ |
| Number of temperature control zones | 1 zone |
| Temperature control accuracy | ≤±2℃ |
| Furnace Size | 1600mm×1800mm×2100 mm |
| Furnace Weight | 2800kg |
| Productivity | 100kg/h |
| Heating method | High temperature resistance tape |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over temperature alarm |
| Heating time | less than 1.2 hours |
OUR SERVICE
Refractory Fiber Pit Carburizing Furnace Quenching Furnace For Hardening
Pre-sale service
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.
In-sale service
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service
1. 12 months warranty period
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
4. technician to provide visiting service after checking with the customer and charge for a favorable price.
5. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
