65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell

65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell
65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell 65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell 65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell 65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell

Large Image :  65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-001
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD5-USD20/PC
Packaging Details: Paper Cartons
Delivery Time: 5-8 woking days
Payment Terms: T/T ,Credit card
Supply Ability: 1000 Pcs/Week
Detailed Product Description
Product Name: High Temperature Small Graphite Crucible With Ceramic Shell Material:: High Pure Graphite Materials
Size:: Difference Size Avaliable Compress Strength:: 65-135MPa
Density:: 1.75-1.85 G/cm3 Sample:: Support
Outside Diameter: 115mm Height: 180mm
High Light:

High Temperature Small Graphite Crucible

,

135MPa Small Graphite Crucible

,

65MPa ceramic melting crucible

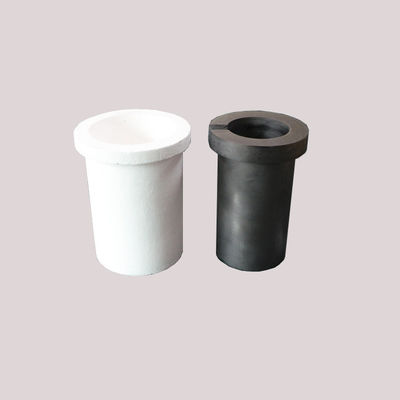

High Temperature Small Graphite Crucible With Ceramic Shell



High Temperature Graphite Crucible Melting Metal is made by our high quality graphite block and widely used in all kinds of furnace to melt jewelry, gold, silver, copper, brass, aluminum, zinc, lead and so on. We support sample orders and OEM.



65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell 0

Technical Parameter of the Graphite Crucible With Ceramic Sleeve /Quartz Crucibles



Name Model Outside diameter Outer diameter Inter diameter Step height Height
Graphite crucible 1kg 58mm 46mm 34mm 10mm 88mm
Graphite crucible 2kg 73mm 61mm 48mm 88mm 78mm
Graphite crucible 3kg 85mm 76mm 62mm 10mm 103mm
Graphite crucible 4kg 84mm 74.5mm 56mm 11.5mm 136.5mm
Graphite crucible 5kg 100mm 87mm 67mm 12mm 135mm
Graphite crucible 5.5kg 105mm 90mm 74mm 13mm 155mm
Graphite crucible 6kg 115mm 102mm 80mm 12mm 180mm
Graphite crucible 8kg 124mm 108mm 90mm 15mm 183mm
Quartz crucible 1kg 69mm 55mm 50mm 5mm 86mm
Quartz crucible 2kg 85mm 70mm 63mm 7.5mm 86mm
Quartz crucible 3kg 95mm 87mm 78mm 10mm 102mm
Quartz crucible 4kg 99mm 87mm 80mm 8.5mm 133mm
Quartz crucible 5kg 118mm 100mm 91mm 10.5mm 135mm
Quartz crucible 5.5kg 119mm 106mm 93mm 8mm 154mm
Quartz crucible 6kg 131mm 118mm 106mm 10mm 179mm
Quartz crucible 8kg 144mm 132mm 113mm 9mm 184mm

65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell 1

65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell 2



Crucibles we manufacture and supply:



  • High pure graphite crucible
  • Isostatic graphite crucible
  • Silicon crabide graphite crucible
  • Silicon carbide crucible
  • Clay graphite crucible
  • quartz crucible

65-135MPa High Temperature Small Graphite Crucible With Ceramic Shell 3

Packaging&Delivery



  • All the goods will be test and packed well before shipping to avoid damage during delivery.
  • Plastic inside,Polyfoam filled,Carton Outside.
  • Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.
