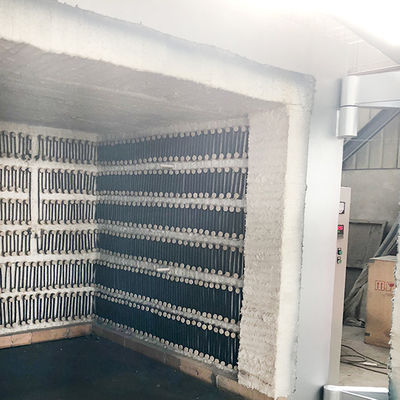

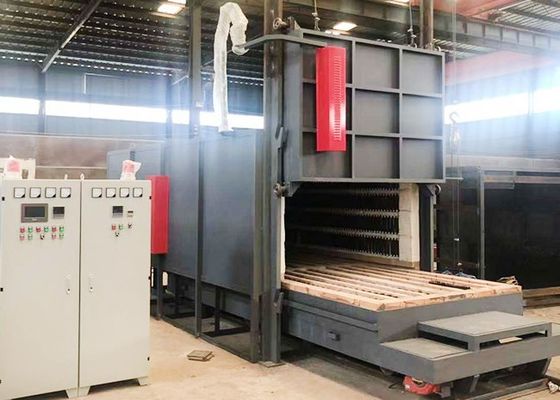

Industrial Trolley Type Electric Resistance Heating Furnace

Industrial Trolley Type Electric Resistance Heating Furnace
Industrial Trolley Type Electric Resistance Heating Furnace Industrial Trolley Type Electric Resistance Heating Furnace

Large Image :  Industrial Trolley Type Electric Resistance Heating Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-150
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-7000/Set
Packaging Details: Standard export wooden box packaging
Delivery Time: Within 25 days
Payment Terms: L/C, T/T
Supply Ability: 5 Sets/month
Detailed Product Description
Product Name: Industrial Heating Equipments Electric Heater Furnace Trolley Type Furnace Effective Size:: 2000×1000×1000mm
Temperature Control Mode:: Thyristor Intelligent PID Control Rated Temperature:: 1150℃
Rated Power:: 150KW Working Voltage:: 380V
Rated Loading Capacity: 2000KG Customization:: Support
High Light:

150KW Electric Resistance Heating Furnace

,

2000KG Resistance Heating Furnace

,

150KW Resistance Heating Furnace

Industrial Heating Equipments Electric Heater Furnace Trolley Type Furnace



The basic configuration or scope of supply:



1. One furnace body
2. One trolley
3. A set of heat-resistant steel plate at the bottom of the furnace
4. A pair of rails outside the furnace
5. A set of electrical control system
6. 2 thermocouples
7. Temperature compensation wire 30 meters



The furnace body and electrical technical parameters:



Effective size

2000×1000×1000mm

Rated temperature 1150 ° C
Rated power 150KW
Working voltage 380V
Number of temperature control zones Zone 1
Heating element distribution the bottom of the furnace, left and right sides of the wall, furnace door and furnace back wall a total of five sides heating
Furnace temperature uniformity ± 10 ° C
Temperature control mode thyristor intelligent PID control
Temperature control deviation ± 2 ° C
Power when holding ≤30KW
Rated loading capacity 3000Kg
Heating element connection Y
Heating element 0Cr21A6Nb high temperature resistance tape
Temperature recording mode touch paperless recorder
The operation mode of the furnace door the furnace door is opened up and down, the furnace door rises out of time and moves outwards at the same time 20mm, the trolley electric self
Dimensions 3000×1800×2850 mm
Furnace shell temperature rise ≤ 45 ° C + room temperature
Furnace weight 3100Kg



The equipment structure



The trolley type electric resistance furnace is mainly composed of a furnace shell, fireproof and heat preservation, heating elements, trolley walking and furnace door lifting mechanism, furnace bottom heat resistant plate and electrical control system.



1. The furnace shell



The shell of the furnace body is welded by steel plate and steel. In order to ensure the overall insulation performance of the furnace and prevent the loss of heat, a labyrinth and sand seal sealing device is arranged between the furnace body and the trolley, and the trolley and the furnace wall are sealed with a flexible sealing device.



2. fire and insulation



In order to ensure that the lining has good thermal insulation performance and a certain structural strength, the furnace is made of a fiber folding block. The advantages of this material are:

(1) It has excellent high temperature resistance and can withstand temperatures up to 1000 °C.

(2), low thermal conductivity, slow heat transfer rate, greatly reducing the heat loss of the furnace.

(3) The density is small, the density of the refractory fiber is small, the weight is light, and the bulk density is only 1/6 of the bulk weight of the lightweight brick, which greatly reduces the load on the steel structure.

(4), less heat storage. The furnace wall is made of refractory fiber, and the heat storage amount is only about 1/4 of that of the brick structure furnace, so that the heating time of the furnace body is short.

(5), good thermal shock resistance. Because the refractory fiber is soft, elastic, excellent in quenching and rapid heat resistance, and strong in thermal shock resistance.

(6) Good insulation performance, and the insulation at high temperature is 3 times that of refractory brick.

(7) Good chemical stability. It is not affected by general acid and alkali in heat treatment equipment.



3. Heating elements



The electric heating element adopts the 0Cr21A6Nb resistance band produced by Beijing Shougang. The resistance band has the characteristics of high temperature resistance and long service life.



4. Trolley walking and furnace door lifting mechanism



The trolley enters and exits with the motor to drive the worm gear reducer, and drives the sprocket to walk, the driving ability is strong, the walking is stable, and the performance is reliable; the trolley enters and exits the limit switch, the trolley, the furnace door and the heating are interlocked, and the safety is high. Even if the operator mishandles, there is no danger. The trolley drive power is supplied through the cable reel, and the cable is automatically tightened.

The furnace door frame is made of steel plate and profile welded, and the inside is pressed by standard fiber folding block. In order to ensure the uniformity of the furnace temperature, the furnace door is also equipped with heating elements. The door lift also adopts the transmission mode of the trolley. Through the roller and the oblique collision mechanism, the furnace door leaves the furnace mouth 20mm during the opening process, and then rises again. When the furnace door is closed, the furnace door falls into place while the furnace is in place. The mouth is moved tightly to ensure that the furnace door and the furnace mouth are slightly rubbed, so that the furnace door and the furnace mouth have a long service life. In this way, the sealing is strict, the movement is smooth, safe and reliable.

The furnace door power supply adopts the machine tool towline type, which effectively protects the cable from being damaged by the furnace gas.



5. Furnace bottom heat-resistant plate



On the upper part of the trolley, a heat-resistant steel of CrMnN graded by a large heat-resistant steel casting company, Anhui Mingguang Zhongli Casting Co., Ltd., is laid. The steel has high plasticity and oxidation resistance, stable structure and resistance to vulcanization. It has improved comprehensive performance with quenching and rapid heat, reduced aging brittleness, and also has good weldability and castability. The furnace plate has been tempered and normalized before leaving the factory. It does not deform under high temperature conditions, does not crack, does not oxidize the skin, and has good resistance to rapid cooling and rapid heat. Especially suitable for high temperature furnaces.



6. Electrical control system



The electrical control system consists of thermocouple, PID temperature control instrument, KS bidirectional thyristor, paperless temperature recorder and general electrical components. Its main performances are as follows:

(1), intelligent PID temperature control instrument, the accuracy is 0.3, the temperature deviation is as small as ±2 °C (when the insulation),

And can perform PID and auto-adaptation adjustment of thermal inertia of heating system

(2) Perfect fault protection measures, such as the occurrence of damage to the thyristor components, fan failure, and automatic sound

Light alarm.

(3) The temperature control instrument adopts the AI508AK3L1 intelligent temperature control instrument of Xiamen Yudian Company, which is the most used in the electric furnace industry. The instrument is simple in operation, stable in quality and accurate in temperature control. (You can select the user to specify the instrument, for example, Shanghai Guolong, Japan Island Power)

(4), temperature control actuators, 3 sets of KS-500A/1100V bidirectional thyristors, such components have long life, fast switching speed, no noise, can accurately control a cycle through and off, thus achieving high precision temperature control.

(5) The temperature recorder adopts Yudian AI3170-7吋 touch screen, which is connected with the instrument through the communication protocol, and the instrument operation menu is fully deployed on the touch screen, so that the operation is more realistic and more convenient. When the instrument parameters are not changed, the touch screen displays. The working state of each zone of the electric furnace or the temperature rise curve of the furnace temperature. The data that can be recorded by the touch screen, such as historical curve, fault time, etc., can be directly checked by the user, or the data can be copied to the computer through the U disk.

(6) All other electrical accessories of the electric cabinet adopt the domestic famous brand Zhengtai Electric, the quality is stable, and the raw materials are easy to purchase.
