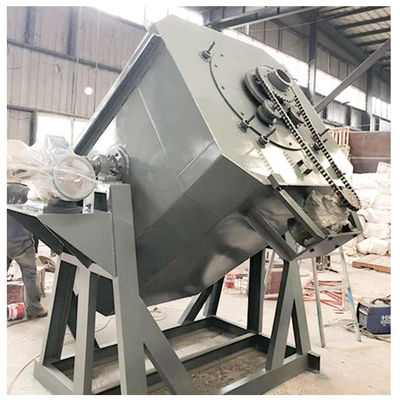

Tiltable 380V Heat Treatment Furnace Steel Hardening And Tempering Furnace

Tiltable 380V Heat Treatment Furnace Steel Hardening And Tempering Furnace
Tiltable 380V Heat Treatment Furnace Steel Hardening And Tempering Furnace Tiltable 380V Heat Treatment Furnace Steel Hardening And Tempering Furnace

Large Image :  Tiltable 380V Heat Treatment Furnace Steel Hardening And Tempering Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-g100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD9969-USD12699/set
Packaging Details: Standard export wooden box packaging
Delivery Time: Within 25 days
Payment Terms: L/C, T/T
Supply Ability: 5 Sets/Month
Detailed Product Description
Rated Power: 60Kw(customizable) Rated Voltage: 380V
Rated Temperature: 950℃(customizable) Effective Heating Size: Ф500×650(customizable)
Productivity: 150Kg/h(customizable) Insulation Thickness: 380mm
Heating Method: High Temperature Resistance Band Roller Rotation Speed: Stepless Frequency Conversion Adjustment
High Light:

Tiltable 380V Heat Treatment Furnace

,

ISO 380V Heat Treatment Furnace

,

Steel Hardening And Tempering Furnace

For Heat Treatment Steel Surface Hardening And Tempering Furnace Tiltable Rotary Drum Resistance Furnace



The furnace is mainly used for quenching, tempering, annealing, and other heat treatment of bicycle parts, sewing machine parts, standard parts, steel ball bearings, rollers, nails, screws and other small parts. The furnace has the characteristics such as: good uniformity of furnace temperature, simple operation, simple maintenance, low energy consumption and energy saving.



Tiltable 380V Heat Treatment Furnace Steel Hardening And Tempering Furnace 0



Technical parameter of the Nails Hardening Machine



Rated power 45kw/60Kw
Rated voltage 380V
Number of phases 3 phases
Rated frequency 50Hz
Rated temperature 950℃
Number of temperature control zones 1 zone
Effective drum heating size

Ф400×500

Ф500×650
Equipment dimensions

2450×2300×2150mm

Weight 2960Kg
Heating method high temperature resistance band
Productivity 100kg/h  ,150Kg/h
Temperature control method Intelligent digital display instrument and PID temperature control; with over-temperature alarm
Furnace temperature uniformity ≤±8℃ (constant heat preservation stage)
Furnace surface temperature rise ≤environment+30℃
Temperature control accuracy ≤±2℃
Furnace structure full fiber structure, the roof of the furnace can be lifted to facilitate the loading of the drum
Insulation thickness 380mm
Roller rotation speed stepless frequency conversion adjustment
