Product Details:
Payment & Shipping Terms:
|
| Product Name: | 100kg 150kg 200kg Brass Melting Electric Furnace Melting Treatment Furnace For Brass | Model: | 110kw |
|---|---|---|---|
| Voltage:: | 380v | Output Current:: | 30-200A |
| Oscillation:: | 1-20HZ | Melting Material: | Copper |
| Capacity:: | 150kg | Melting Time: | 45mins |
| Melting Temperature: | 1300 ℃ | Cooling Water Requirements: | ≥ 0.2Mpa, ≥ 5L/min |
| High Light: | 200kg Electric Metal Melting Furnace,150kg Electric Metal Melting Furnace,100kg Melting Furnace For Brass |
||
100kg 150kg 200kg Brass Melting Electric Furnace Melting Treatment Furnace For Brass

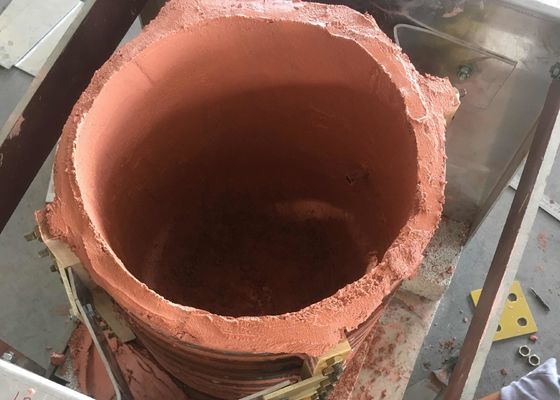

The small intermediate frequency melting furnace includes a power supply cabinet, a capacitor cabinet, and a melting furnace body,and the spare parts of the furnace is the crucible, because you need to replace the crucible regularly.If you need, we can offer some refractory material. Regarding cooling water equipment, we recommend that you use pools and water pumps instead of chillers, which is more economical. or you can choose the chillers , it is more tidy and clean.
When the smelting capacity is more than 100kg, you can choose hydraulic or motor tilting instead of manual operation, which is more labor-saving and safer.
Main models of the 100kg 150kg 200kg Brass Melting Electric Furnace Melting Treatment Furnace For Brass :
| Model | Aluminum | Copper | Stainless |
| MF-15KW | 3kg | 10kg | 3kg |
| MF-25KW | 5kg | 20kg | 5kg |
| MF-35KW | 10kg | 30kg | 10kg |
| MF-45KW | 18kg | 50kg | 18kg |
| MF-70KW | 25kg | 100kg | 25kg |
| MF-90KW | 40kg | 120kg | 40kg |
| MF-110KW | 50kg | 150kg | 50kg |
| MF-160KW | 100kg | 250kg | 100kg |
Smelting metals such as Gold,Sliver, Copper, Bronze, Brass, Steel,Aluminum etc.Small capacity smelt of them , the best chooise is the Medium Frequency Furnace Induction Melting Machine.Small medium frequency melting furnace includes power supply cabinet, capacitor cabinet and melting furnace body.
100kg 150kg 200kg Brass Melting Electric Furnace Melting Treatment Furnace For Brass include:

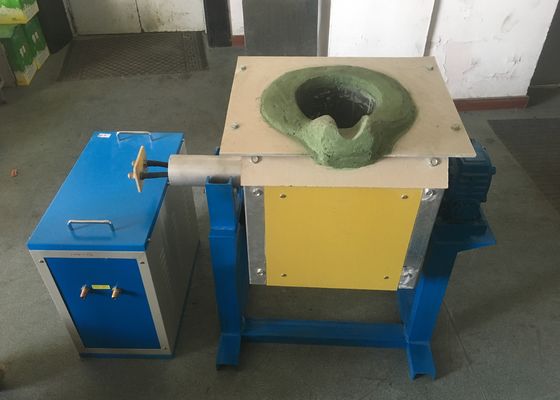

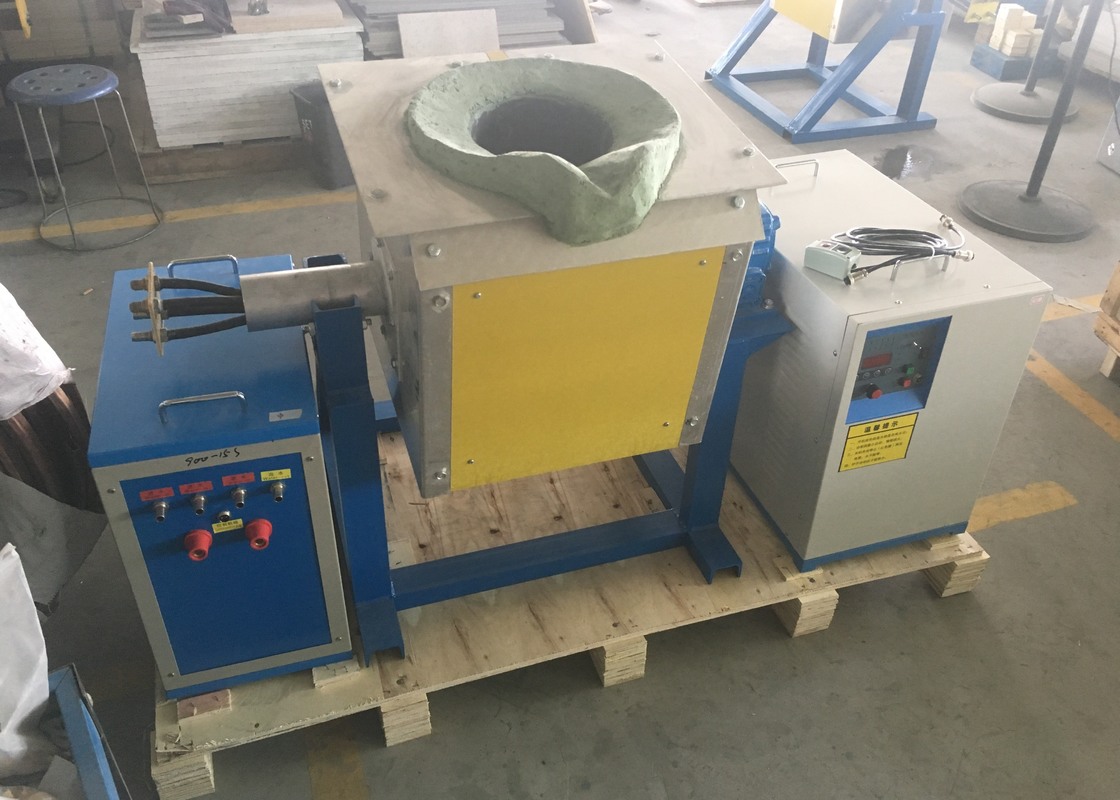

The left side of the picture is a complete set of equipment, and the right side is a display of simple cooling water equipment
