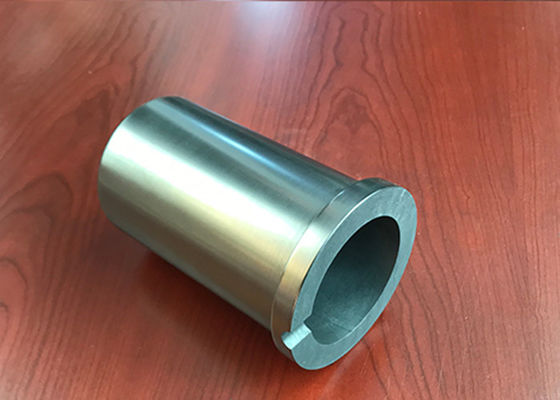

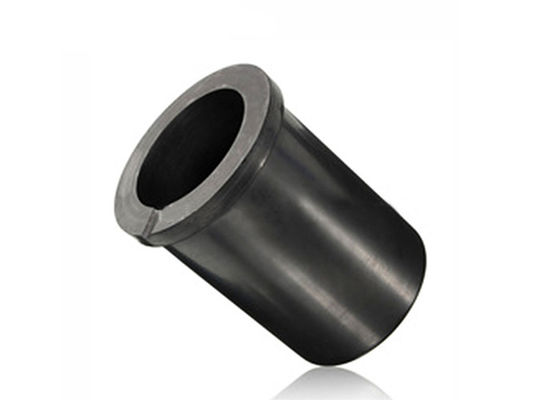

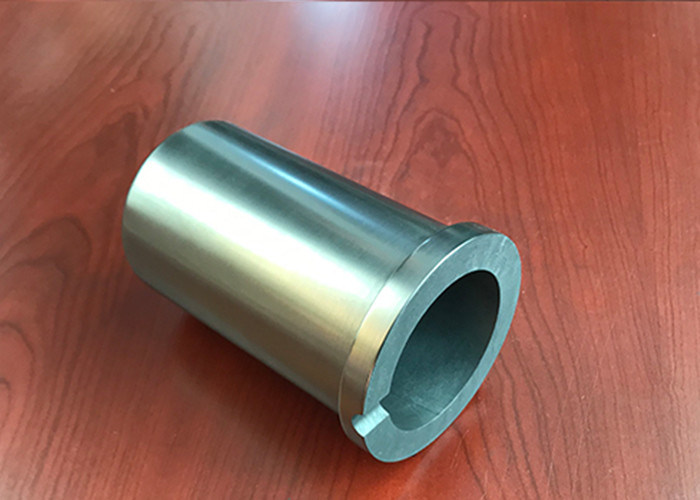

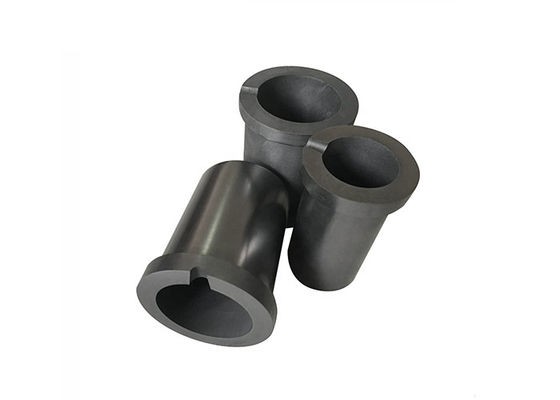

1kg Furnace Crucible High Temperature Casting Clay Graphite Crucible For Indutherm

1kg Furnace Crucible High Temperature Casting Clay Graphite Crucible For Indutherm
1kg Furnace Crucible High Temperature Casting Clay Graphite Crucible For Indutherm 1kg Furnace Crucible High Temperature Casting Clay Graphite Crucible For Indutherm 1kg Furnace Crucible High Temperature Casting Clay Graphite Crucible For Indutherm 1kg Furnace Crucible High Temperature Casting Clay Graphite Crucible For Indutherm

Large Image :  1kg Furnace Crucible High Temperature Casting Clay Graphite Crucible For Indutherm

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IRIS-0025
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD10.9/PC
Packaging Details: Paper Cartons
Delivery Time: 5-8 woking days
Payment Terms: T/T/Credit card
Supply Ability: 1000 Pcs/Week
Detailed Product Description
Product Name: High Temperature Casting Clay Graphite Crucible For Indutherm Material: High Pure Graphite Materials
Inner Size: 35mm Top Outer Diameter Size: 58mm
Bottom Diameter: 46.5cm Height: 88mm
Weight: 170g Capacity: 1kg(gold)
High Light:

1kg Furnace Crucible High Temperature

,

Furnace Crucible For Indutherm

,

1kg Casting Clay Graphite Crucible

High Temperature Casting Clay Graphite Crucible For Indutherm



Features of graphite crucible:



1.Graphite materials with high purity, high density and high strength are manufactured with long service life.The product is uniform and fine matrix.
2.Good thermal conductivity, highly shorten the melting time and lead to low energy consumption.
3.Corrosion and impact resistance, strong acid and strong alkali resistance, specially designed for various use environments to ensure product reliability.
4.Selected special materials,durability graphite products.High temperature resistance, it can be used for quick heating and cooling.
5.Made of special materials, our long service life and corrosion resistance exceed 2000℃. high temperature.
Any Shape, Any Size, CAD designed and built to your specifications!! OEM & ODM
6.The properties of terminal ash content less than 300PP, which keeps the metal pure after smelting.
7.The static pressing process and the high pressure forming process ensure the quality stability.

High Temperature Casting Clay Graphite Crucible For Indutherm



Technical Parameter of the Graphite Crucible With Ceramic Sleeve /Quartz Crucibles



Name Model Outside diameter Outer diameter Inter diameter Height
Graphite crucible 1kg 58mm 46mm 34mm 88mm
Graphite crucible 2kg 73mm 61mm 48mm 78mm
Graphite crucible 3kg 85mm 76mm 62mm 103mm
Graphite crucible 4kg 84mm 74.5mm 56mm 136.5mm
Graphite crucible 5kg 100mm 87mm 67mm 135mm
Graphite crucible 5.5kg 105mm 90mm 74mm 155mm
Graphite crucible 6kg 115mm 102mm 80mm 180mm
Graphite crucible 8kg 124mm 108mm 90mm 183mm
Quartz crucible 1kg 69mm 55mm 50mm 86mm
Quartz crucible 2kg 85mm 70mm 63mm 86mm
Quartz crucible 3kg 95mm 87mm 78mm 102mm
Quartz crucible 4kg 99mm 87mm 80mm 133mm
Quartz crucible 5kg 118mm 100mm 91mm 135mm
Quartz crucible 5.5kg 119mm 106mm 93mm 154mm
Quartz crucible 6kg 131mm 118mm 106mm 179mm
Quartz crucible 8kg 144mm 132mm 113mm 184mm



High Temperature Casting Clay Graphite Crucible For Indutherm

High Temperature Casting Clay Graphite Crucible For Indutherm

High Temperature Casting Clay Graphite Crucible For Indutherm



Crucibles we manufacture and supply:

  • High pure graphite crucible
  • Isostatic graphite crucible
  • Silicon crabide graphite crucible
  • Silicon carbide crucible
  • Clay graphite crucible
  • quartz crucible

High Temperature Casting Clay Graphite Crucible For Indutherm

Packaging&Delivery

  • All the goods will be test and packed well before shipping to avoid damage during delivery.
  • Plastic inside,Polyfoam filled,Carton Outside.
  • Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.
