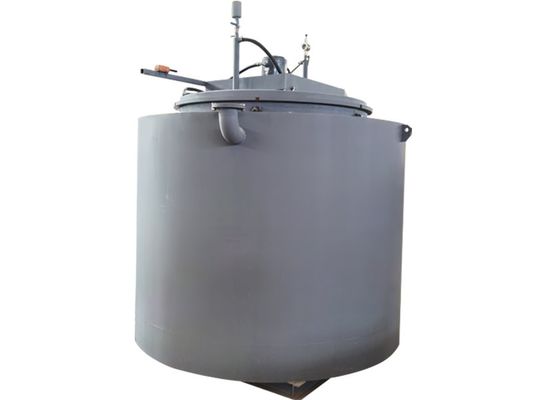

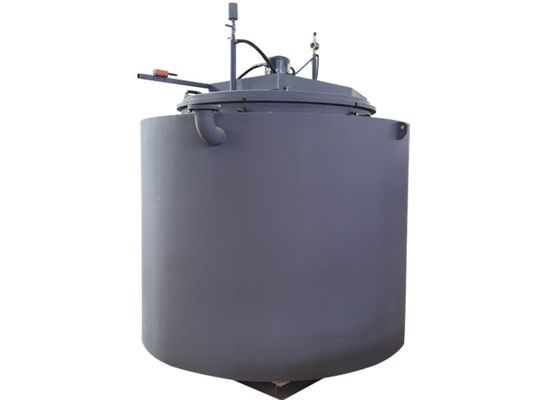

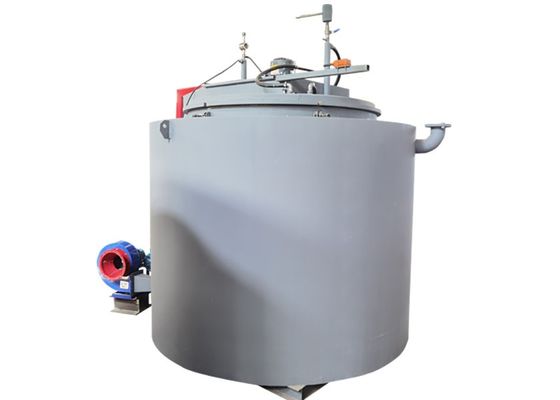

IRIS CE Nitriding Furnace Pit Type Heat Treating Equipment

IRIS CE Nitriding Furnace Pit Type Heat Treating Equipment
IRIS CE Nitriding Furnace Pit Type Heat Treating Equipment IRIS CE Nitriding Furnace Pit Type Heat Treating Equipment IRIS CE Nitriding Furnace Pit Type Heat Treating Equipment

Large Image :  IRIS CE Nitriding Furnace Pit Type Heat Treating Equipment

Product Details:
Place of Origin: CHINA
Brand Name: IRIS
Certification: CE
Model Number: IRIS-GN
Payment & Shipping Terms:
Delivery Time: 45
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
High Light:

IRIS CE Nitriding Furnace

,

Nitriding Furnace Pit Type

,

Pit Type Heat Treating Equipment

Pit type gas nitriding furnace is composed of sealed fan for furnace, muffle tank, heating element and electric control system, etc. The furnace shell is welded by steel plate and section steel

IRIS CE Nitriding Furnace Pit Type Heat Treating Equipment 0





Pit type gas nitriding furnace is used for gas nitriding of carbon steel parts and can also be used for gas nitrocarburizing (soft nitriding) treatment. It is composed of furnace shell, furnace lining, furnace cover lifting mechanism, furnace sealing fan, muffle tank, heating element and electric control system. The furnace shell is welded by steel plate and section steel. , aluminum silicate fiber, diatomite insulation brick and asbestos board masonry and energy-saving composite structure.



Basic parameters of gas nitriding furnace



model rated power(Kw)

Rated temperature

(℃)

loading capacity

(Kg)

Empty furnace wear

(Kw)

Empty furnace heating time Furnace temperature uniformity
RN2-20-6 20 650 160 ≤7.5 ≤2.5 ±5
RN2-30-6 30 650 200 ≤10 ≤2.5 ±5
RN2-45-6 45 650 300 ≤15 ≤2.5 ±5
RN2-60-6 60 650 630 ≤17 ≤2.5 ±5
RN2-75-6 75 650 750 ≤20 ≤2.5 ±5
RN2-90-6 90 650 1450 ≤25 ≤3.5 ±5
RN2-105-6 110 650 1800 ≤30 ≤3.5 ±5
RN2-140-6 140 650 2100 ≤40 ≤3.5 ±5



working principle

The pit type nitriding furnace is a periodic operation type electric furnace. It is an energy-saving resistance furnace improved on the basis of a series of electric furnaces according to the actual use of the user. The maximum working temperature is 650 ℃. The workpiece is placed in the material basket, and the control atmosphere adopts the dripping type, which is dripped into the furnace tank through the flow meter and the drip tube, and the fan is installed on the furnace cover, which can perform forced circulation of the temperature and atmosphere in the furnace tank.
