650C Carbonitriding Furnace,
Periodic Operation Type carbonitriding furnace,
Pit type gas nitriding furnace

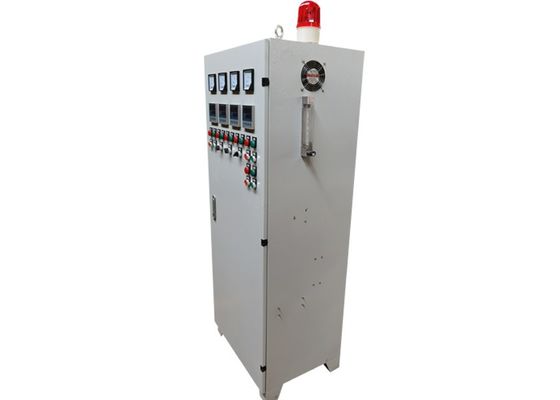

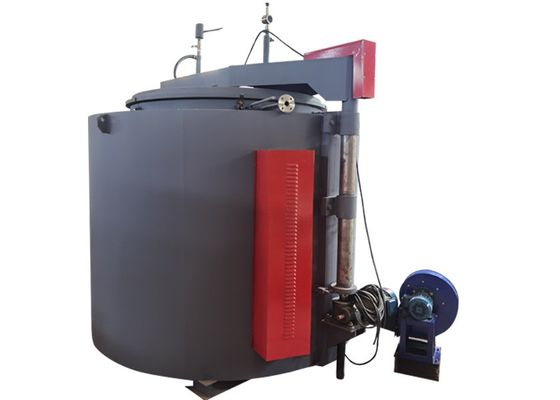

Pit type gas nitriding furnace is composed of sealed fan for furnace, muffle tank, heating element and electric control system, etc. The furnace shell is welded by steel plate and section steel
Pit type gas nitriding furnace is used for gas nitriding of carbon steel parts and can also be used for gas nitrocarburizing (soft nitriding) treatment. It is composed of furnace shell, furnace lining, furnace cover lifting mechanism, furnace sealing fan, muffle tank, heating element and electric control system. The furnace shell is welded by steel plate and section steel. , aluminum silicate fiber, diatomite insulation brick and asbestos board masonry and energy-saving composite structure.
The pit type nitriding furnace is a periodic operation type electric furnace. It is an energy-saving resistance furnace improved on the basis of a series of electric furnaces according to the actual use of the user. The maximum working temperature is 650 ℃. The workpiece is placed in the material basket, and the control atmosphere adopts the dripping type, which is dripped into the furnace tank through the flow meter and the drip tube, and the fan is installed on the furnace cover, which can perform forced circulation of the temperature and atmosphere in the furnace tank.
Basic parameters of gas nitriding furnace
Empty furnace wear
|Empty furnace heating time||Furnace temperature uniformity|
