Product Details:
Payment & Shipping Terms:
|
| Rated Power: | 60Kw(customizable) | Rated Voltage: | 380V |
|---|---|---|---|
| Rated Temperature: | 950℃(customizable) | Effective Heating Size: | Ф500×650(customizable) |
| Insulation Thickness: | 380mm | Roller Rotation Speed: | Stepless Frequency Conversion Adjustment |
| High Light: | 950C Heat Treatment Furnace,Quenching Heat Treatment Furnace,Tempering Heat Treatment Furnace |
||

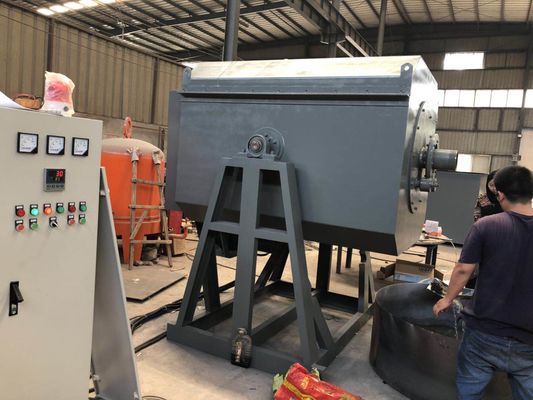

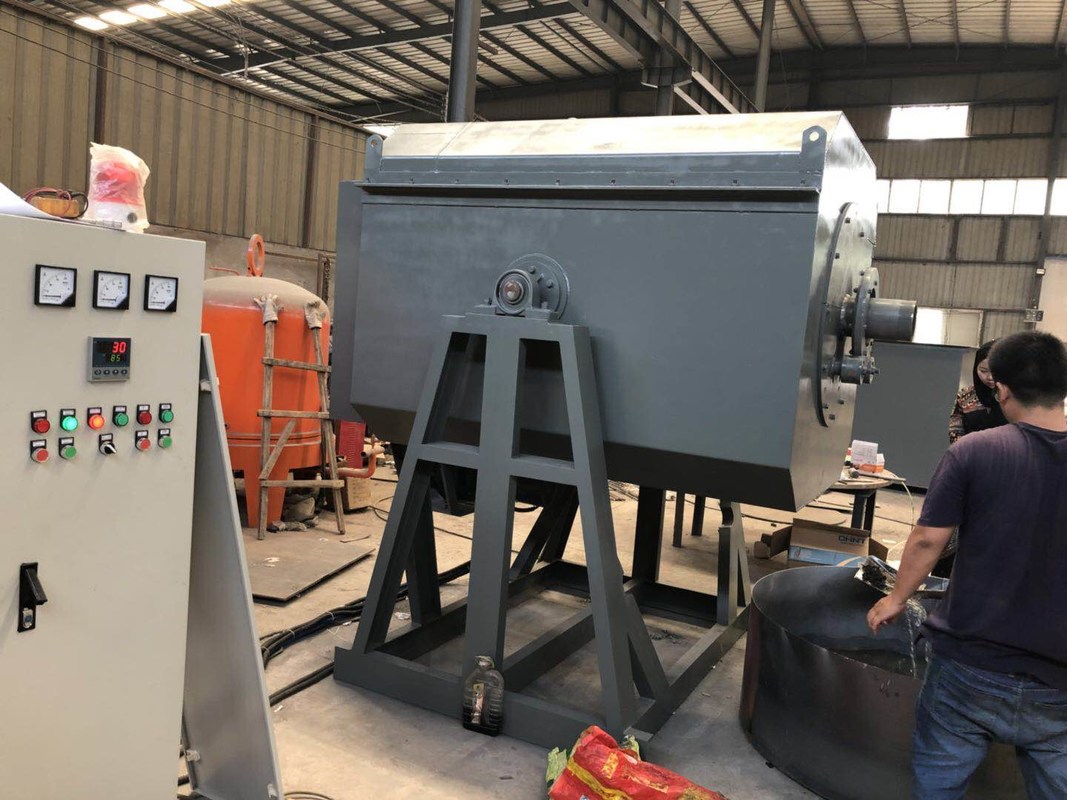

Quenching Tempering 950C Heat Treatment Furnace High Temperature
This equipment is mainly used for vacuum heat treatment and vacuum post-welding heat treatment of heat-resistant steel, stainless steel and structural steel parts. It is used to eliminate the processing stress of precision parts with finished size and use residual stress stabilization treatment. It is used for finished size.
Technical parameter of the Nails Hardening Machine
| Rated power | 45kw/60Kw |
| Rated voltage | 380V |
| Number of phases | 3 phases |
| Rated frequency | 50Hz |
| Rated temperature | 950℃ |
| Number of temperature control zones | 1 zone |
| Effective drum heating size |
Ф400×500 Ф500×650 |
| Equipment dimensions |
2450×2300×2150mm |
| Weight | 2960Kg |
| Heating method | high temperature resistance band |
| Productivity | 100kg/h ,150Kg/h |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over-temperature alarm |
| Furnace temperature uniformity | ≤±8℃ (constant heat preservation stage) |
| Furnace surface temperature rise | ≤environment+30℃ |
| Temperature control accuracy | ≤±2℃ |
| Furnace structure | full fiber structure, the roof of the furnace can be lifted to facilitate the loading of the drum |
| Insulation thickness | 380mm |
| Roller rotation speed | stepless frequency conversion adjustment |
