IRIS 50C Metal Forging Induction Heating Furnace High Frequency Induction Heater Furnace

IRIS 50C Metal Forging Induction Heating Furnace High Frequency Induction Heater Furnace
IRIS 50C Metal Forging Induction Heating Furnace High Frequency Induction Heater Furnace
video play

Large Image :  IRIS 50C Metal Forging Induction Heating Furnace High Frequency Induction Heater Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-35
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1999-USD2999/Set
Packaging Details: Woodern box
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10 Set/pc
Detailed Product Description
Product Name: Induction Heating Furnace Type: Induction Furnace
Feature: Energy-saving & Safe Power: 50kw
Voltage: 380V Oscillation Frequency: 20-40KHZ
Cooling Water Pressure: ≥0.03Mpa Warranty: 1 Year
High Light:

Metal Forging Induction Heating Furnace

,

50C Induction Heating Furnace

,

IRIS high frequency induction heater furnace

High Frequency Induction Heating Furnace Metal Forging



1. Produce process is easy to operate, charge in and discharge flexibly, high degree of automation, realize produce on line.

2. Fast speed of workpiece heating, less oxidization or decarburization, high efficiency, and quality forging piece.

3. High control accuracy of workpiece length, speed, and temperature.

4. Good heat uniformity of workpiece, small temperature difference on core surface, high control accuracy.

5. Integration design of inductor and furnace body, quick-change connector for different inductors, easy to change and replace.

6. Omni energy conservation optimal design, low energy consumption, high efficiency, lower cost than coal furnace.

7. Fit environmental protection requirement standard, little pollution, and reduce labour intensity of workers.

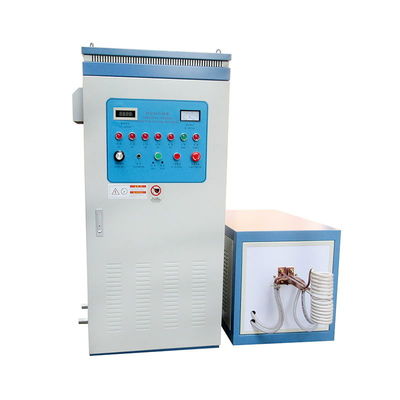

IRIS 50C Metal Forging Induction Heating Furnace High Frequency Induction Heater Furnace 0



Technical Parameter:



Model No. IRIS-16KW IRIS-30KW IRIS-40KW IRIS-50KW
Power Supplier 220v/50HZ 380v/50HZ 380v/50HZ 380v/50HZ
Working Voltage 180-250V 360-420V 360-420V 360-420V
Max Input Current 42A 55A 65A 75A
Power 16KW 30KW 40KW 50KW
Rate 15-100KHZ 15-45KHZ 15-45KHZ 15-35KHZ
Efficiency 90% 90% 90% 90%
Continuons load rate 80% 100% 100% 100%
Cooling water flow 5L/min(0.1MPa) 15L/min(0.1MPa) 15L/min(0.1MPa) 20L/min(0.1MPa)
Cooling water pressure 0.1mp 0.1-0.3mp 0.1-0.3mp 0.1-0.3mp
Host weight 25kg 45kg 45kg 55kg
Host dimensions 470*178*365mm 580*280*510mm 460*360*630mm 590*450*780mm
Transformer Dimensions none none 320*320*310mm 420*335*450mm
Temperature protection 50°C 50°C 50°C 50°C



The scope of use of the High Frequency Induction Heating Furnace:



Diathermy :

  • Reinforcing steel * steel plate * steel wire * steel belt and other online heat transfer operations.
  • Round steel, hexagonal steel, drill rod, steel pipe, etc.
  • Bolt * nut * flat steel and other heating red.

Quenching :

  • Gear*axis and other surface scanning quenching.
  • Line wheel* sprocket* and other disc surface quenching.
  • Machine tool guide * Dovetail groove and other surface heat treatment.
  • Steel pipe * concrete pump tube inner wall surface quenching, etc.

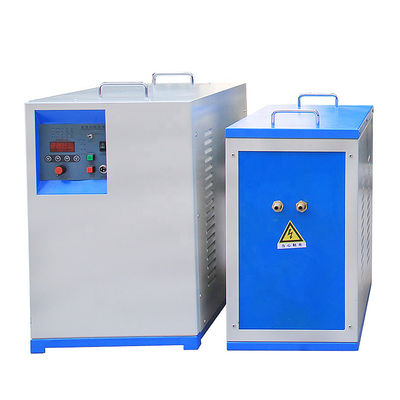

IRIS 50C Metal Forging Induction Heating Furnace High Frequency Induction Heater Furnace 1



Equipment composition:

  • There are three main components: 1. Heating power supply host 2. Water-cooled dry-type transformer 3. Customized contour sensor
  • Note: The model of the heating power supply host is divided into: 50KW*80KW*120KW*160KW*200KW*300KW*500KW, etc.
  • The composition of the transformer: consists of a high-temperature sintered magnetic core or a silicon steel sheet, and the number of turns is adjustable.
  • Custom profiling sensor: Customized processing using round copper tube or square copper tube. The specific size is customized by the user to provide the workpiece size or reserved clearance.

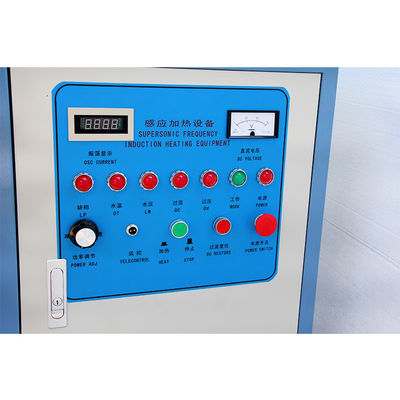

IRIS 50C Metal Forging Induction Heating Furnace High Frequency Induction Heater Furnace 2

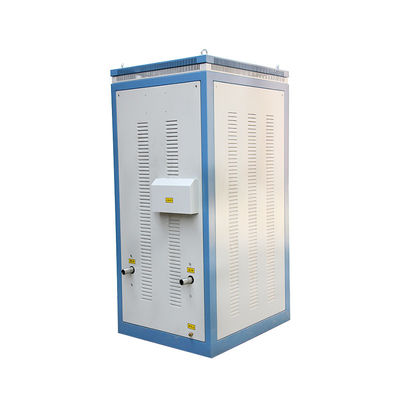

IRIS 50C Metal Forging Induction Heating Furnace High Frequency Induction Heater Furnace 3

Our service



Pre-sale service:



1. recommend the most suitable machine for customers, according to their requirements.

2. Inquiry and consulting support.

3. Sample testing support.

4. View our Factory.



In-sale service:



1. Strictly manufacture the machine, according to relevant technical standards.

2. Take run test, according to relevant equipment test run regulations.

3. Strictly check up the machine, before delivery

4. Delivery on time.



After-sale service:



1. 12 months warranty period

2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we  provide replacement parts after detecting the faults.

3. We will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.



Please  note:The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
