15-35KHZ 50KW Induction Heating Furnace For Steel Forging

15-35KHZ 50KW Induction Heating Furnace For Steel Forging
15-35KHZ 50KW Induction Heating Furnace For Steel Forging
video play

Large Image :  15-35KHZ 50KW Induction Heating Furnace For Steel Forging

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-35
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1999-USD2999/Set
Packaging Details: Woodern box
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10 Set/pc
Detailed Product Description
Product Name: High Frequency Induction Heating Furnace Type: Induction Furnace
Feature: Energy-saving & Safe Power: 50kw
Voltage: 380V Oscillation Frequency: 20-40KHZ
Cooling Water Pressure: ≥0.03Mpa Warranty: 1 Year
High Light:

IRIS 50KW Induction Heating Furnace


15KHZ Induction Heating Furnace


35KHZ steel forging furnace

High Frequency Induction Heating Furnace For Steel Forging Small Capacity


Characteristics of high frequency induction heating machine:


1. Fast heating: the fastest heating speed is less than one second.
2. Wide heating: various kinds of metal workpieces can be heated (disassembled induction coil according to the shape of the workpiece)
3. Convenient installation: connect power, induction coil and incoming water pipe can be used;Easy to operate: a few minutes to learn
4. Low power consumption: about 70% of the power of the high - frequency equipment of the old vacuum tube, the smaller the workpiece, the lower the power consumption
5. The effect is good: the heating is very uniform (it can also adjust the density of the induction coil, so that the parts of the workpiece can get the temperature that they need)

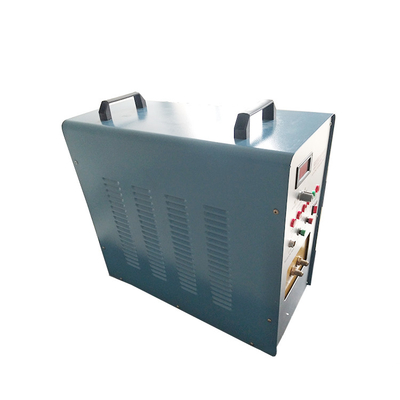

15-35KHZ 50KW Induction Heating Furnace For Steel Forging 0


Technical Parameter:


Power Supplier 220v/50HZ 380v/50HZ 380v/50HZ 380v/50HZ
Working Voltage 180-250V 360-420V 360-420V 360-420V
Max Input Current 42A 55A 65A 75A
Power 16KW 30KW 40KW 50KW
Rate 15-100KHZ 15-45KHZ 15-45KHZ 15-35KHZ
Efficiency 90% 90% 90% 90%
Continuons load rate 80% 100% 100% 100%
Cooling water flow 5L/min(0.1MPa) 15L/min(0.1MPa) 15L/min(0.1MPa) 20L/min(0.1MPa)
Cooling water pressure 0.1mp 0.1-0.3mp 0.1-0.3mp 0.1-0.3mp
Host weight 25kg 45kg 45kg 55kg
Host dimensions 470*178*365mm 580*280*510mm 460*360*630mm 590*450*780mm
Transformer Dimensions none none 320*320*310mm 420*335*450mm
Temperature protection 50°C 50°C 50°C 50°C



The scope of use of the High Frequency Induction Heating Furnace:


Diathermy :


  • Reinforcing steel * steel plate * steel wire * steel belt and other online heat transfer operations.
  • Round steel, hexagonal steel, drill rod, steel pipe, etc.
  • Bolt * nut * flat steel and other heating red.


Quenching :


  • Gear*axis and other surface scanning quenching.
  • Line wheel* sprocket* and other disc surface quenching.
  • Machine tool guide * Dovetail groove and other surface heat treatment.
  • Steel pipe * concrete pump tube inner wall surface quenching, etc.

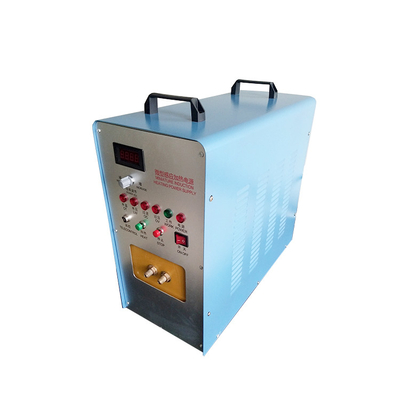

15-35KHZ 50KW Induction Heating Furnace For Steel Forging 1


Equipment composition:


  • There are three main components: 1. Heating power supply host 2. Water-cooled dry-type transformer 3. Customized contour sensor
  • Note: The model of the heating power supply host is divided into: 50KW*80KW*120KW*160KW*200KW*300KW*500KW, etc.
  • The composition of the transformer: consists of a high-temperature sintered magnetic core or a silicon steel sheet, and the number of turns is adjustable.
  • Custom profiling sensor: Customized processing using round copper tube or square copper tube. The specific size is customized by the user to provide the workpiece size or reserved clearance.

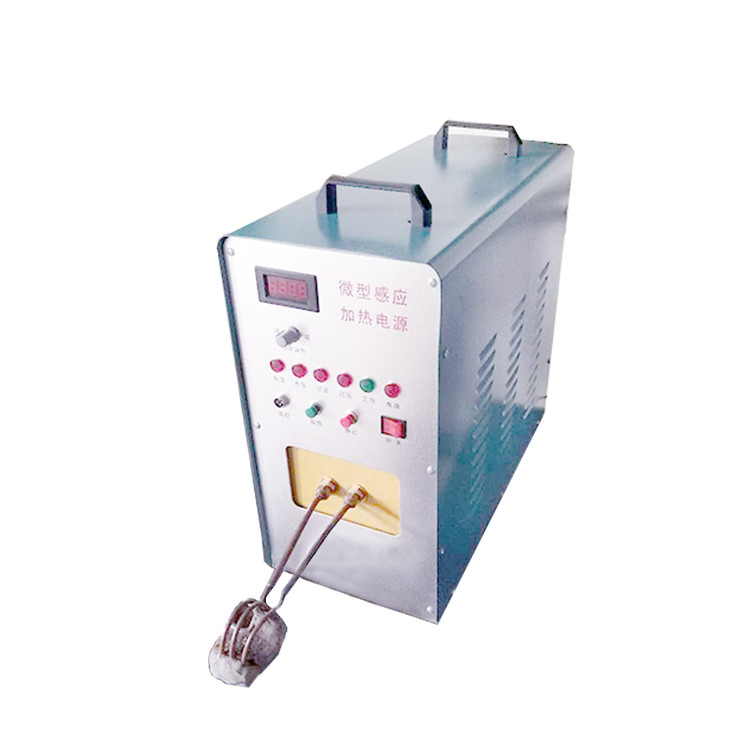

15-35KHZ 50KW Induction Heating Furnace For Steel Forging 2

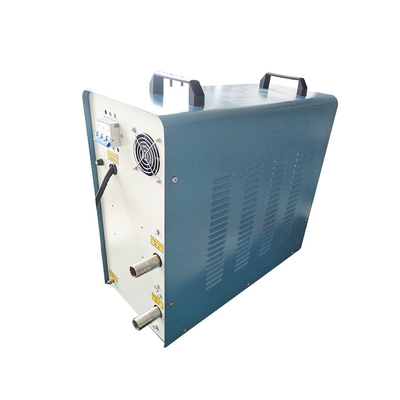

15-35KHZ 50KW Induction Heating Furnace For Steel Forging 3

Our service


Pre-sale service:


1. recommend the most suitable machine for customers, according to their requirements.

2. Inquiry and consulting support.

3. Sample testing support.

4. View our Factory.



In-sale service:


1. Strictly manufacture the machine, according to relevant technical standards.

2. Take run test, according to relevant equipment test run regulations.

3. Strictly check up the machine, before delivery

4. Delivery on time.



After-sale service:


1. 12 months warranty period

2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we  provide replacement parts after detecting the faults.

3. We will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.


Please  note:The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
